Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the valve rocker arms and pushrods. Refer to VALVE ROCKER ARM AND PUSH ROD REPLACEMENT  .
  2. Remove the engine coolant air bleed pipe and covers. Refer to COOLANT AIR BLEED PIPE ASSEMBLY REPLACEMENT in Engine Cooling.
  3. Remove the exhaust manifold. Refer to EXHAUST MANIFOLD REPLACEMENT - RIGHT in Engine Exhaust.

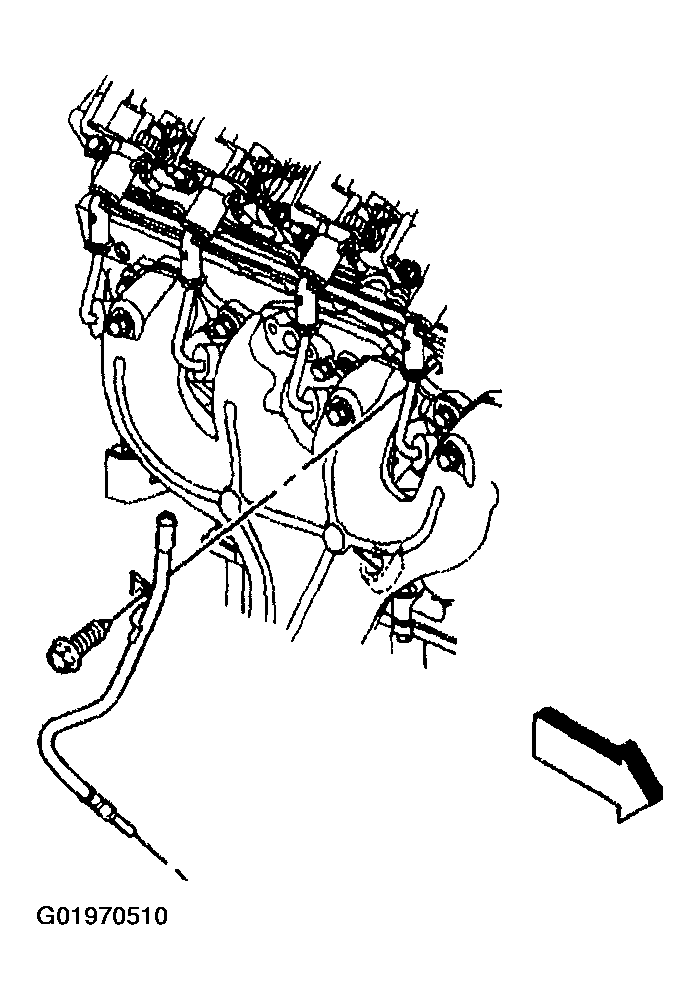

    Fig 1: Removing Oil Level Indicator Tube Bolt
    G01970510Courtesy of GENERAL MOTORS CORP.
  4. Remove the oil level indicator tube bolt.
  5. Reposition the oil level indicator tube, if necessary.
  6. Remove the wiring harness from the clip at the rear of the cylinder head.

    Important:  The cylinder head bolts are NOT reusable.

  7. Remove the cylinder head bolts.
    NOTE: After removal, place the cylinder head on two wood blocks to prevent damage.
  8. Remove the cylinder head.

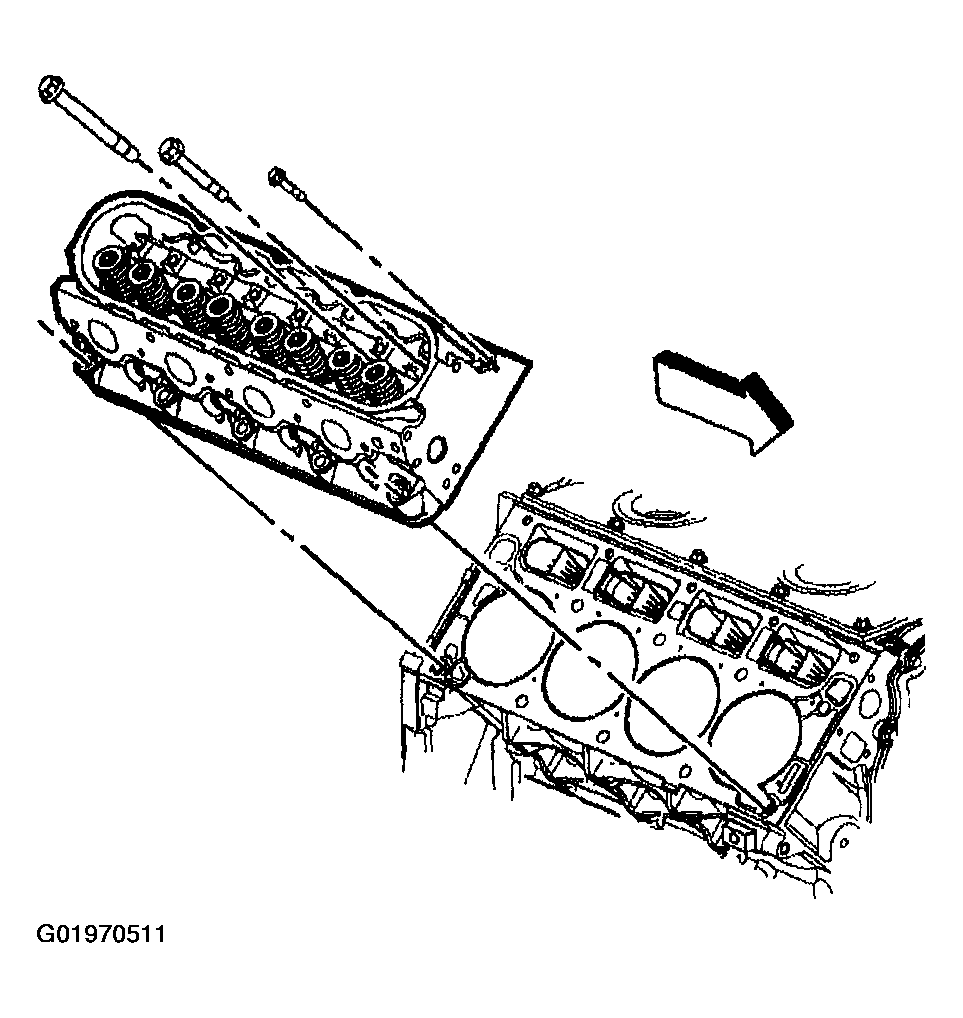

    Fig 2: Removing Cylinder Head
    G01970511Courtesy of GENERAL MOTORS CORP.
  9. Remove the cylinder head gasket.

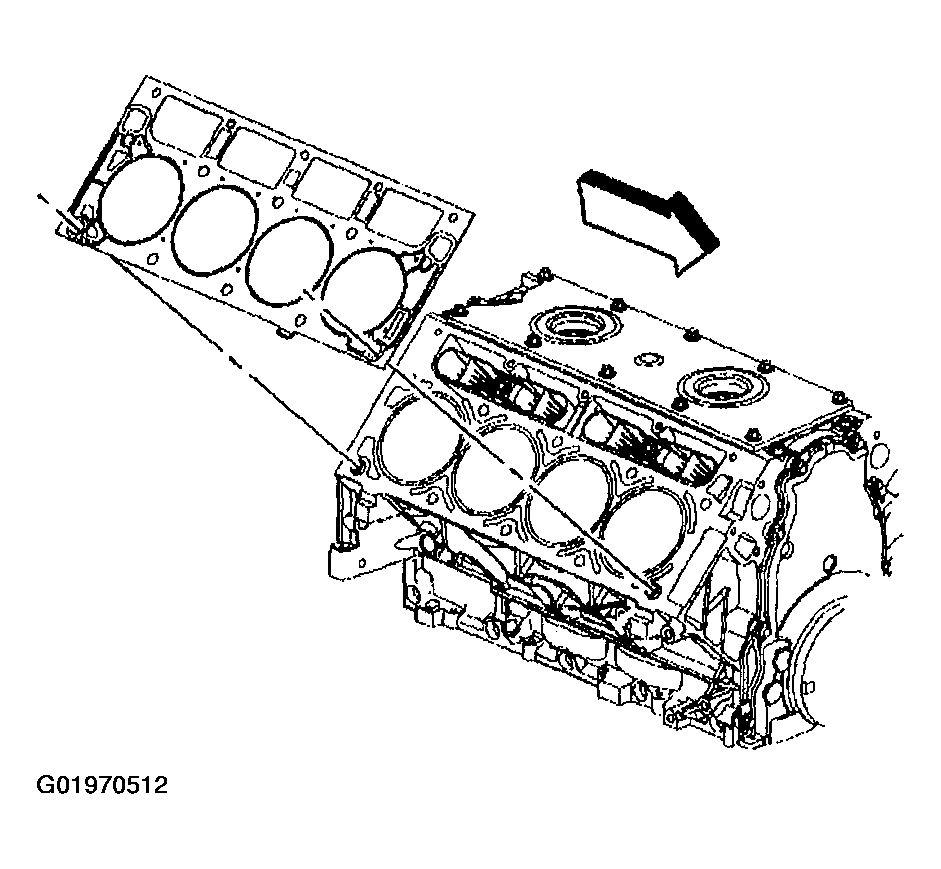

    Fig 3: Removing Cylinder Head Gasket
    G01970512Courtesy of GENERAL MOTORS CORP.
  10. Discard the gasket.
  11. Discard the cylinder head bolts.
  12. Clean and inspect the cylinder head. Refer to CYLINDER HEAD CLEANING AND INSPECTION .
