Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the engine flywheel. Refer to ENGINE FLYWHEEL REPLACEMENT  .
  2. Gently pry the crankshaft rear oil seal (1) from the rear cover.

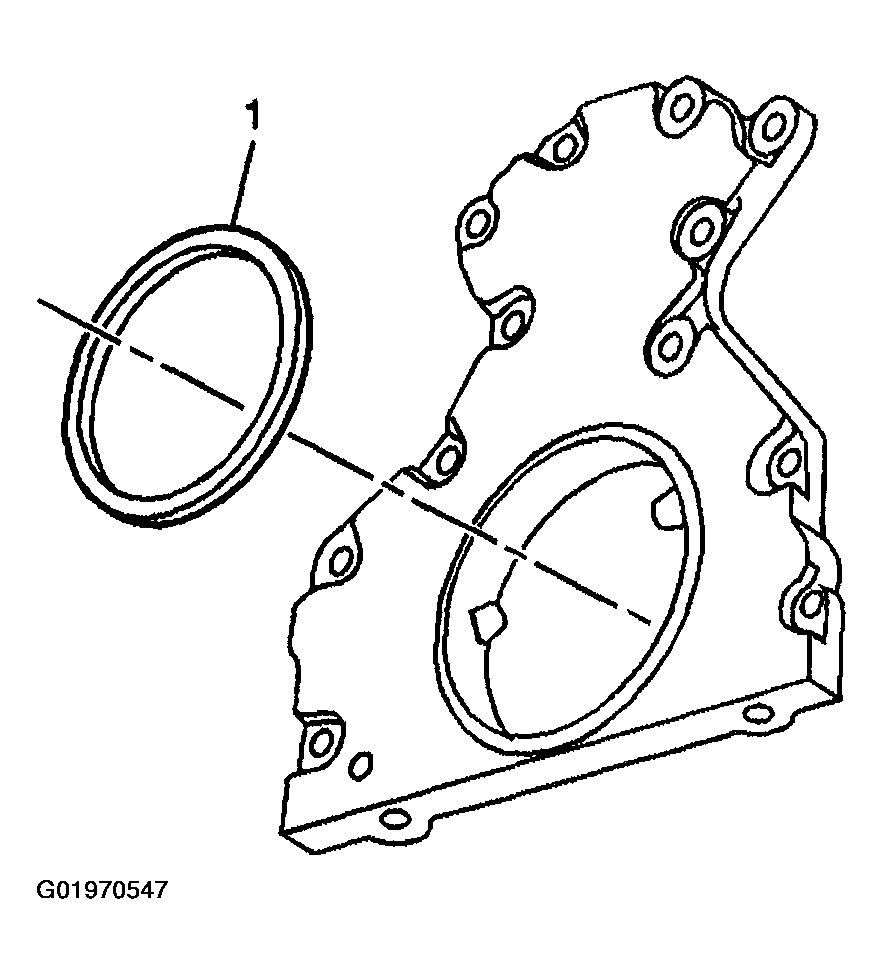

    Fig 1: Removing Crankshaft Rear Oil Seal
    G01970547Courtesy of GENERAL MOTORS CORP.
