Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. If equipped with the RPO LS6 engine, install the PCV valve to the hose, if necessary.
  2. Install the PCV valve hose (1) to the valley cover and intake manifold.

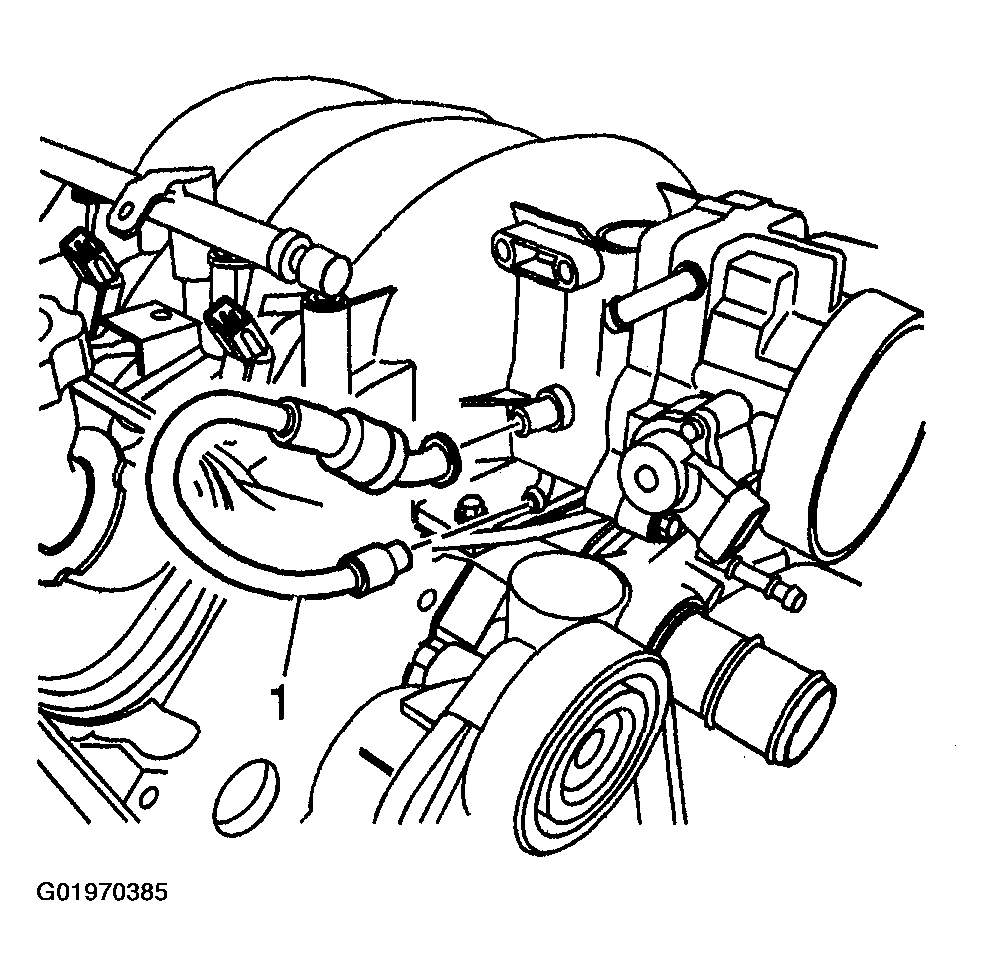

    Fig 1: Installing PCV Valve Hose
    G01970385Courtesy of GENERAL MOTORS CORP.
  3. If equipped with the RPO LS1 engine, install the PCV valve to the valve pipe, if necessary.
  4. Install the PCV valve pipe to the right rocker arm cover and intake manifold.
    NOTE: Refer to FASTENER NOTICE .
  5. Install the PCV valve pipe strap nut

    Tighten

    Tighten the PCV strap nut to 12 N.m (106 lb in).

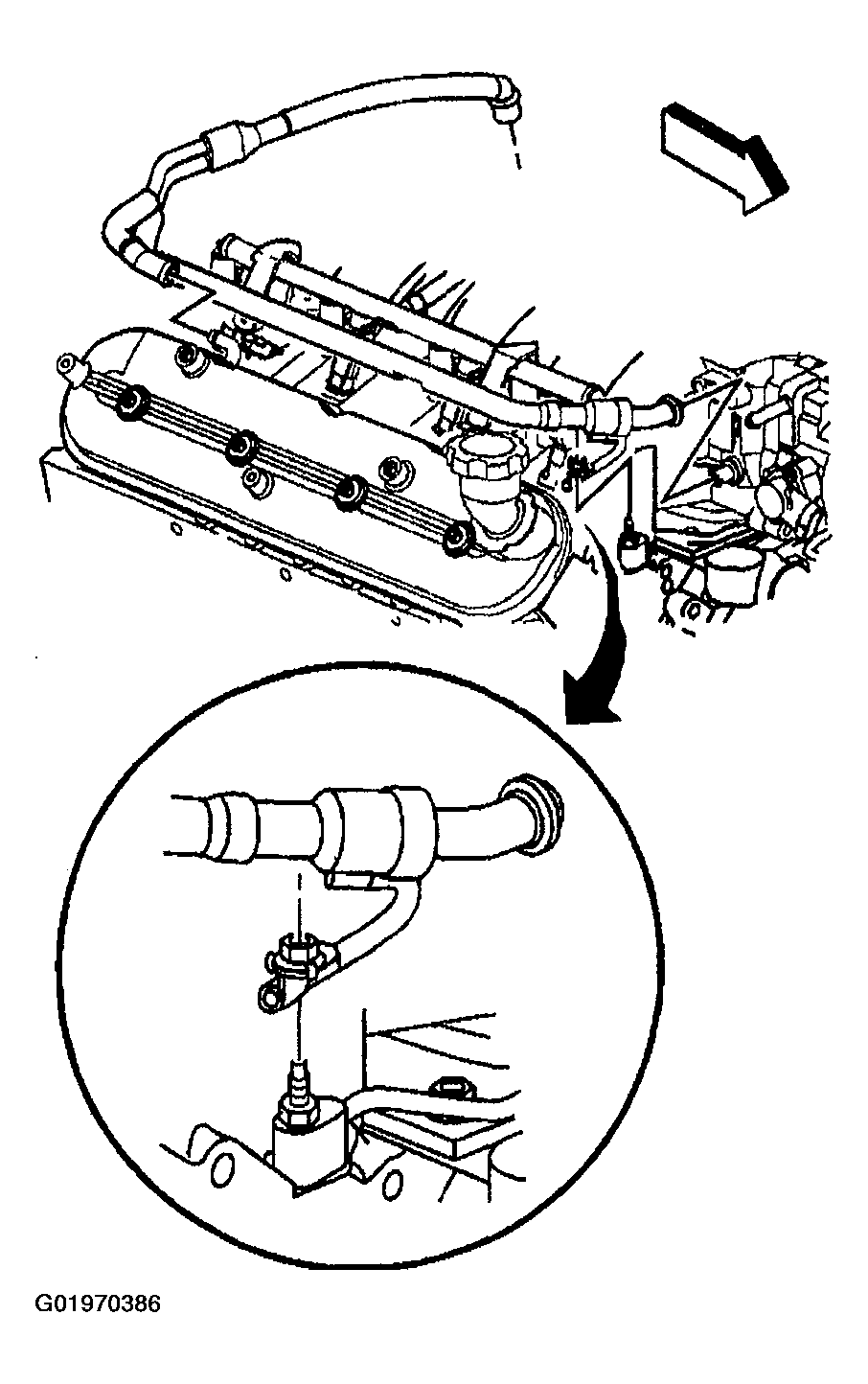

    Fig 2: Installing PCV Valve Pipe To Right Rocker Arm Cover And Intake Manifold
    G01970386Courtesy of GENERAL MOTORS CORP.
  6. If equipped with the RPO LS1 engine, install the PCV valve pipe to the left rocker arm cover.

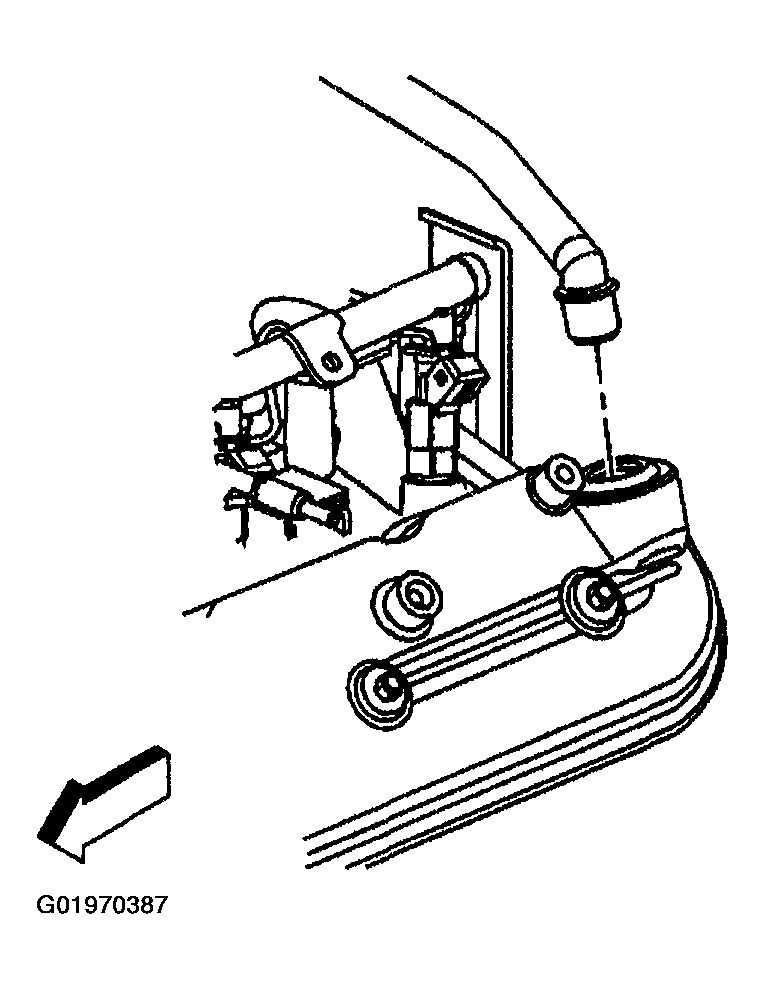

    Fig 3: Installing PCV Valve Pipe To Left Rocker Arm Cover
    G01970387Courtesy of GENERAL MOTORS CORP.
  7. Install the PCV tube to the right rocker arm cover and throttle body, in necessary.
  8. Install the TP sensor harness clip to the PCV tube.

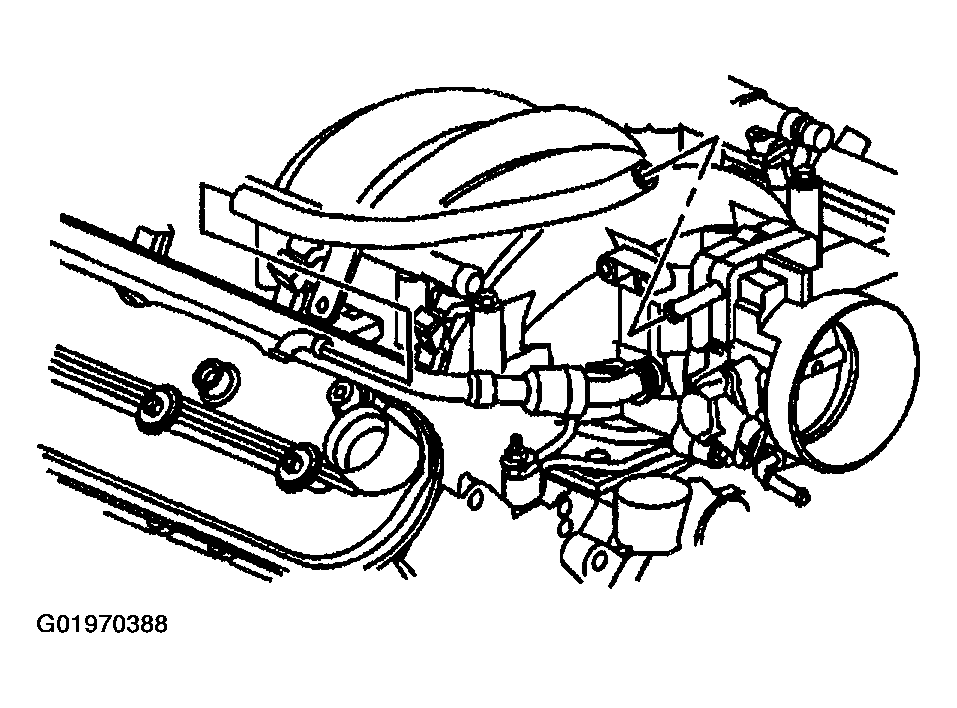

    Fig 4: Installing PCV Tube To Right Rocker Arm Cover And Throttle Body
    G01970388Courtesy of GENERAL MOTORS CORP.
