Valve Rocker Arm and Push Rod Removal

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

Important:  Place valve rocker arms, valve pushrods, and pivot support, in a rack so that they can be installed in the same location from which they were removed.

  1. Remove the valve rocker arm bolts.
  2. Remove the valve rocker arms.

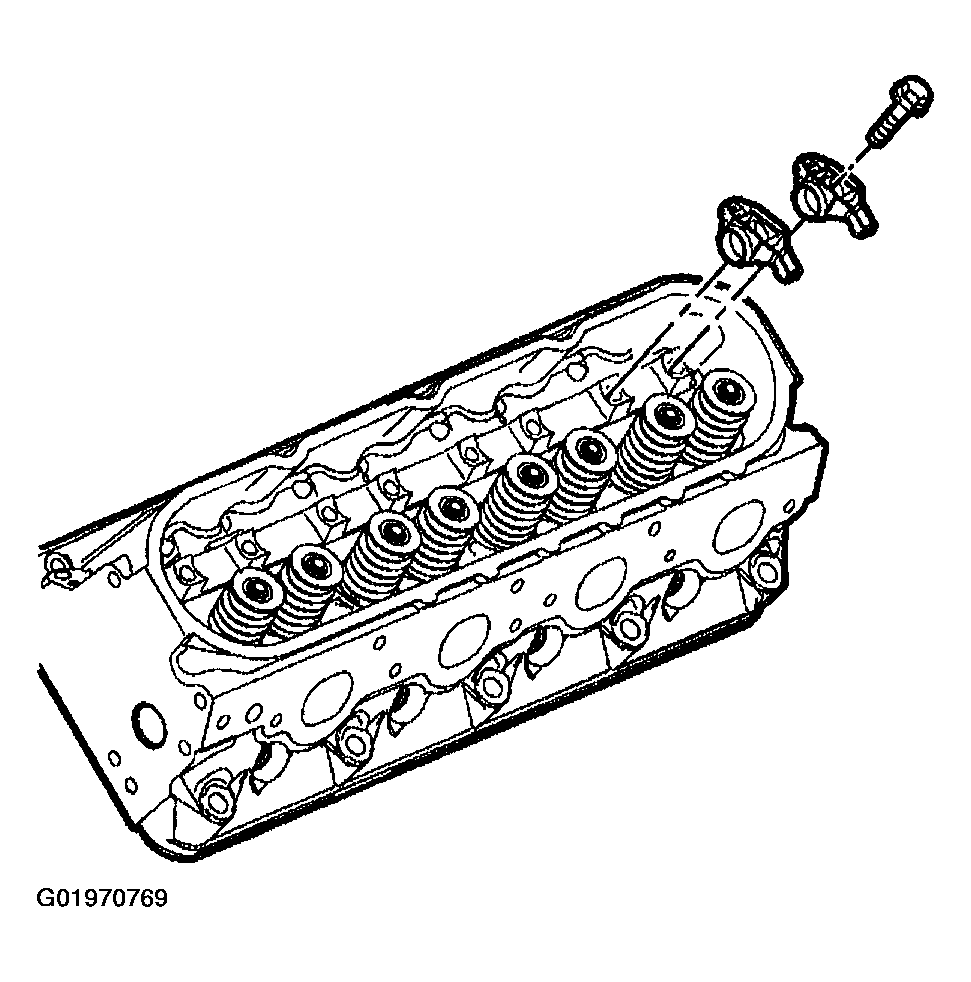

    Fig 1: Removing Valve Rocker Arm
    G01970769Courtesy of GENERAL MOTORS CORP.
  3. Remove the valve rocker arm pivot support.

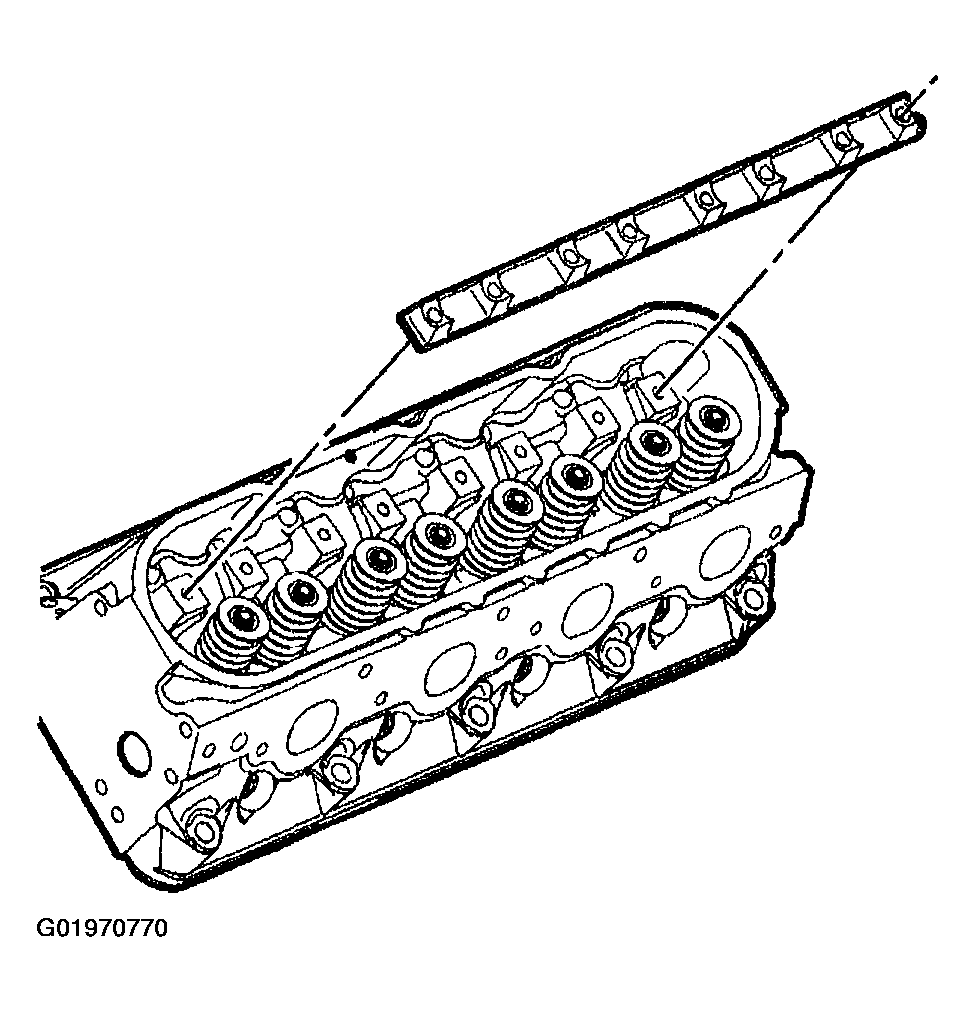

    Fig 2: Removing Valve Rocker Arm Pivot Support
    G01970770Courtesy of GENERAL MOTORS CORP.
  4. Remove the pushrods.

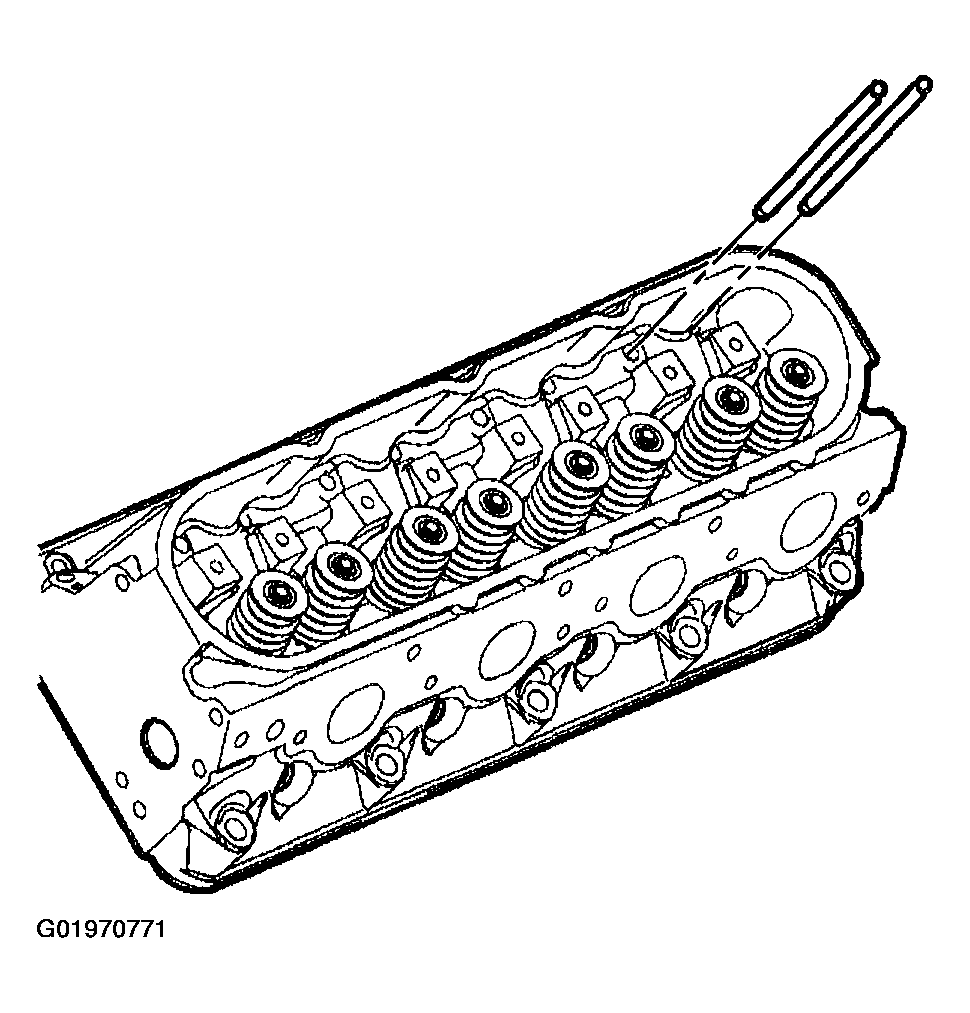

    Fig 3: Removing Valve Rocker Arm Push Rods
    G01970771Courtesy of GENERAL MOTORS CORP.
