Valve Lifter Removal

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

Tools Required

J 3049-A Valve Lifter Remover

Remove the valve lifter guide bolts (1).
Remove the valve lifters and guide.

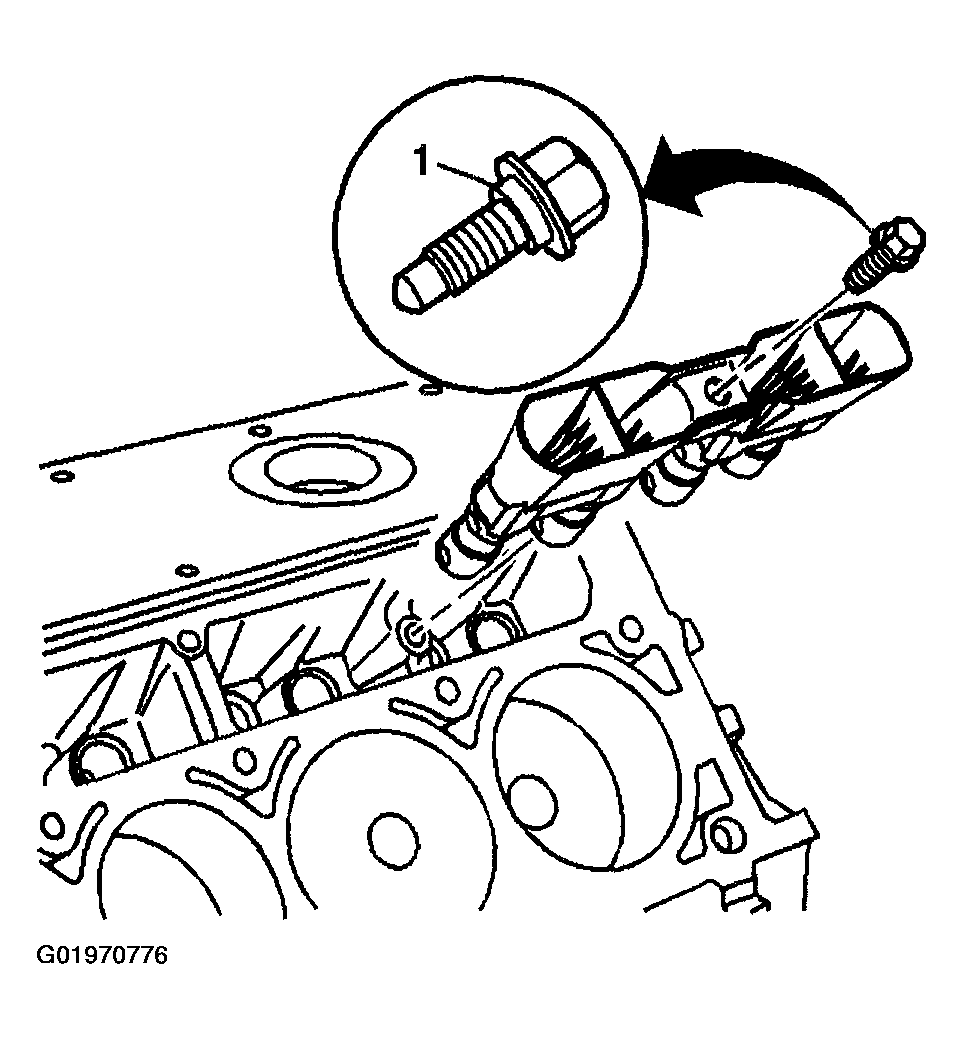

Fig 1: Removing Valve Lifter
Courtesy of GENERAL MOTORS CORP.

Important: Some valve lifters may be stuck in their bores because of gum or varnish deposits.
Use the J 3049-A or equivalent in order to remove the valve lifters, if required.

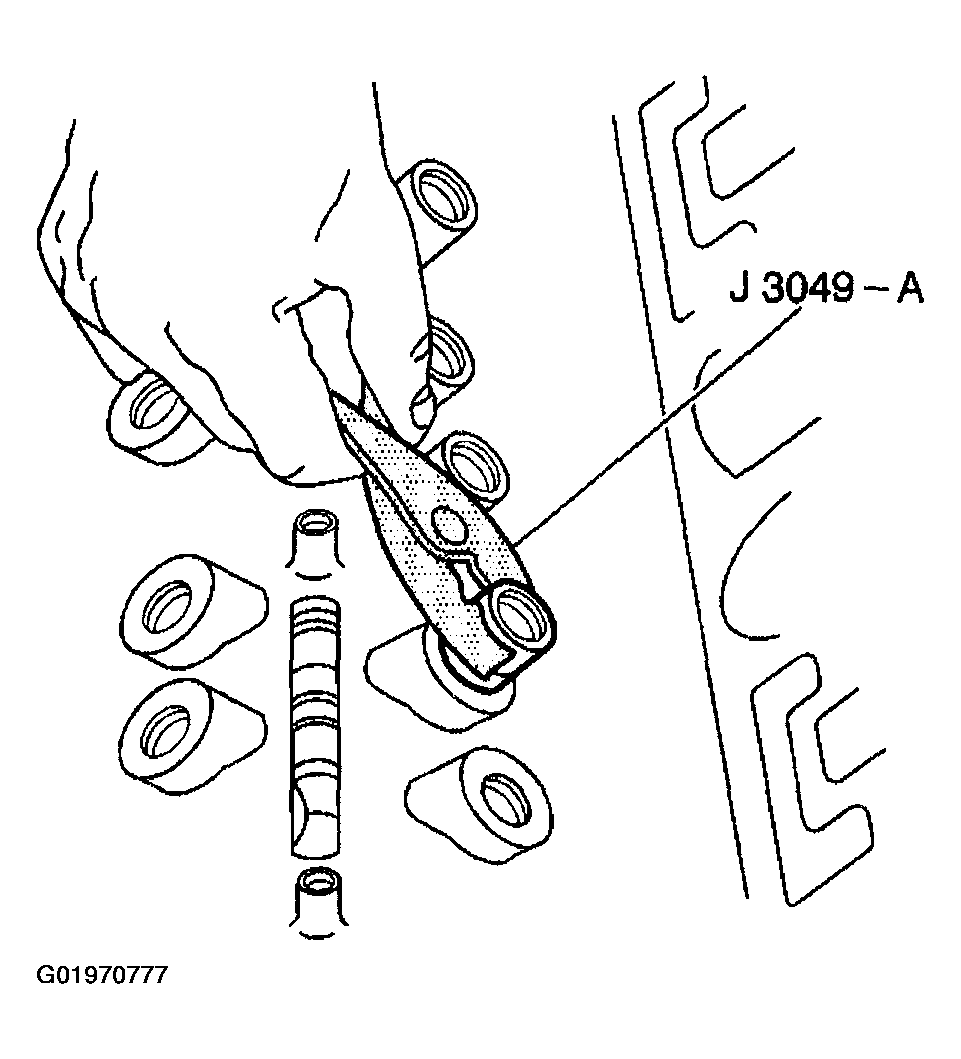

Fig 2: Using J 3049-A
Courtesy of GENERAL MOTORS CORP.
Remove the valve lifters from the guide.

Fig 3: Removing Valve Lifters From Guide
Courtesy of GENERAL MOTORS CORP.
Organize or mark the components so that they can be installed in the same location from which they were removed. Refer to SEPARATING PARTS .
