Oil Pump, Pump Screen and Deflector Removal

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the oil pump screen bolt and nuts.

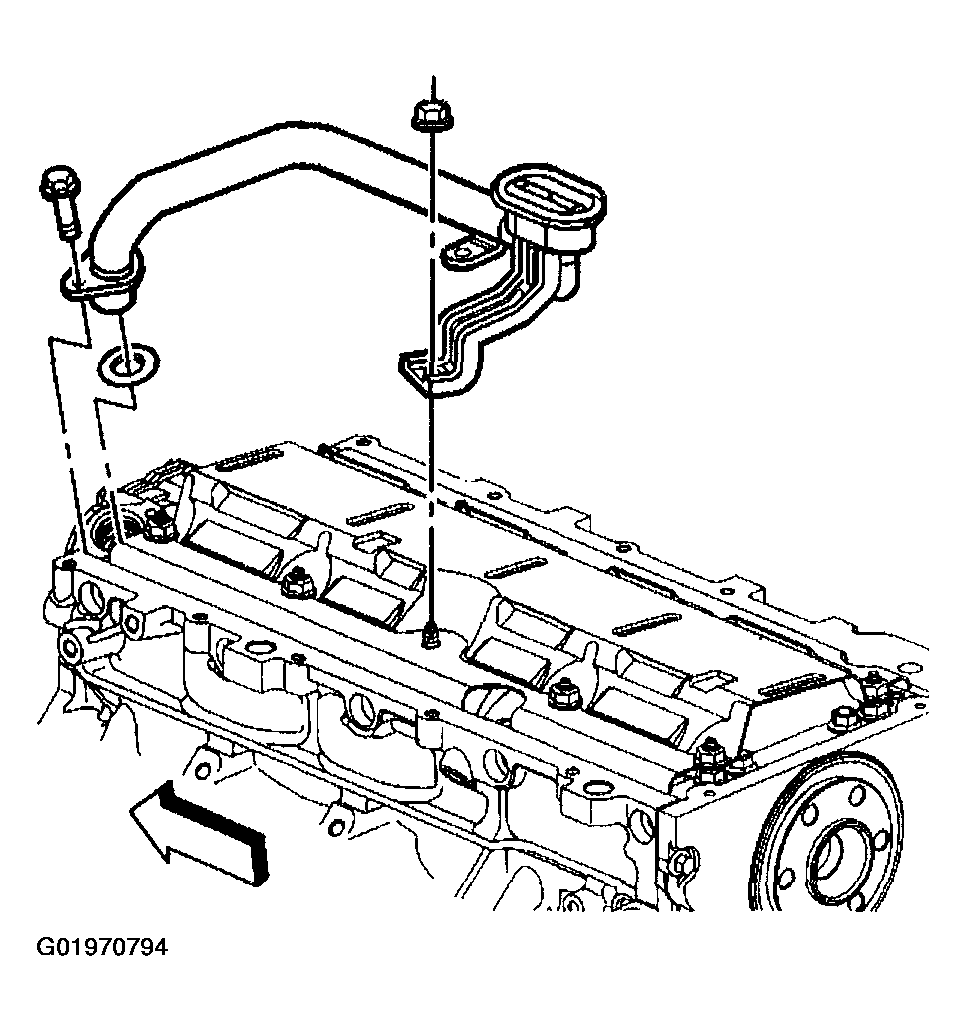

    Fig 1: Removing Oil Pump Screen
    G01970794Courtesy of GENERAL MOTORS CORP.
  2. Remove the oil pump screen with O-ring seal.
  3. Remove the O-ring seal from the pump screen.
  4. Discard the O-ring seal.
  5. Remove the remaining crankshaft oil deflector nuts.
  6. Remove the crankshaft oil deflector.

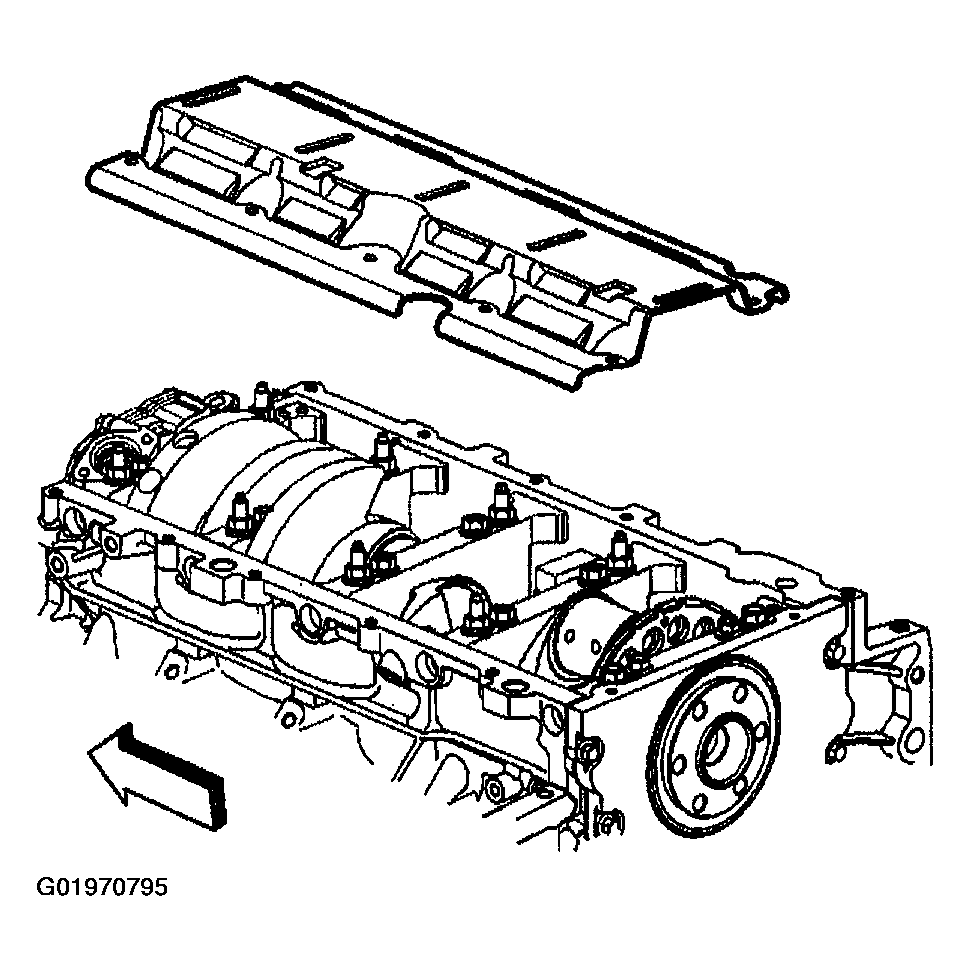

    Fig 2: Removing Crankshaft Oil Deflector
    G01970795Courtesy of GENERAL MOTORS CORP.
  7. Remove the oil pump bolts.

    Important:  Do not allow dirt or debris to enter the oil pump assembly, cap ends as necessary.

  8. Remove the oil pump.

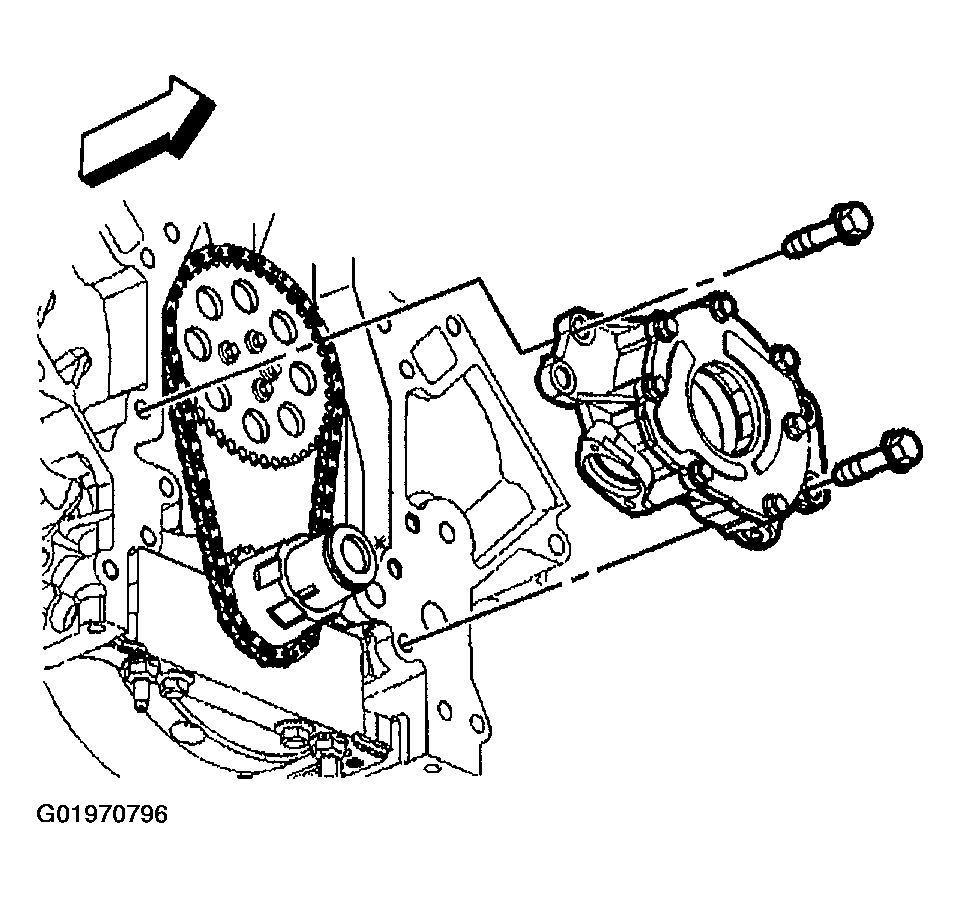

    Fig 3: Removing Oil Pump
    G01970796Courtesy of GENERAL MOTORS CORP.
