Oil Level Indicator and Tube Removal

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the oil level indicator from the tube.

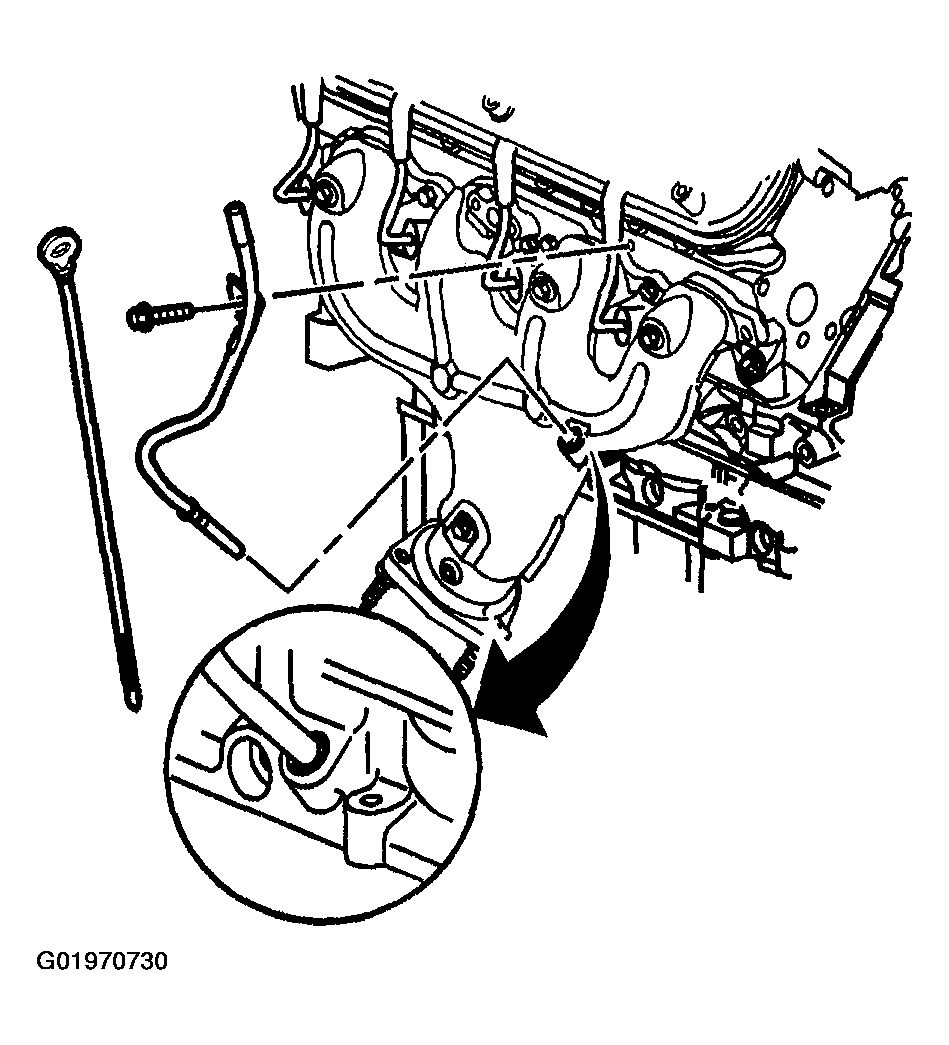

    Fig 1: Removing Oil Level Indicator and Tube
    G01970730Courtesy of GENERAL MOTORS CORP.
  2. Remove the oil level indicator tube bolt from the right cylinder head.
  3. Remove the oil level indicator tube from the engine block.

    Important:  Inspect the O-ring seal for cuts or damage. The O-ring seal may be used again if it is not cut or damaged.

  4. Remove the O-ring seal from the tube, if required.
