Engine Rear Cover Cleaning and Inspection

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

Important:  Do not use the crankshaft oil seal again. Install a NEW crankshaft oil seal during assembly.

Do not use the rear cover-to-engine block gasket again. Install a NEW gasket during assembly.

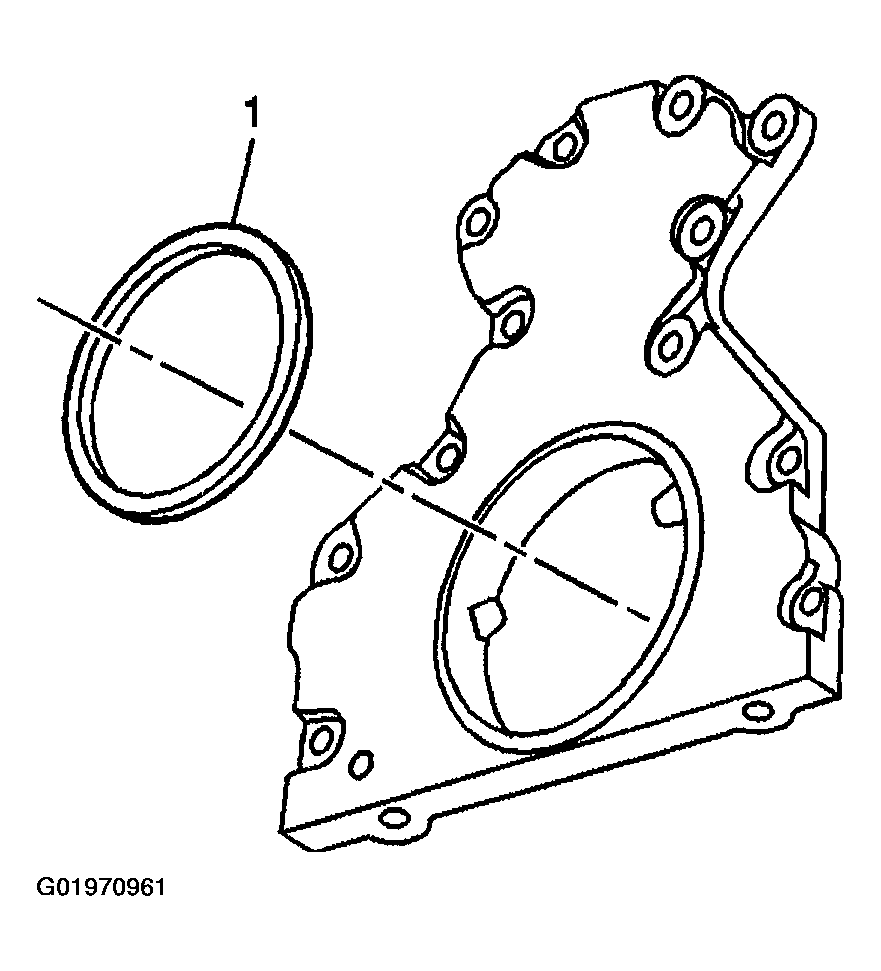

Fig 1: Inspecting Engine Rear Cover
G01970961Courtesy of GENERAL MOTORS CORP.
  1. Remove the crankshaft oil seal (1) from the rear cover.
  2. Clean the cover in solvent. Remove the sealant from the cover oil pan surface. Refer to REPLACING ENGINE GASKETS  .
    CAUTION: Refer to SAFETY GLASSES CAUTION .
  3. Dry the cover with compressed air.
  4. Inspect the gasket sealing surfaces for excessive scratches or gouging.
  5. Inspect the cover-to-oil pan threaded bolt holes for damaged threads or debris.
  6. Inspect the crankshaft oil seal mounting bore for damage.
