Clutch Pilot Bearing Installation

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

Tools Required

J 38836 Pilot Bushing Installer/Clutch

Install a 5/8 inch washer (1) onto the J 38836 or equivalent.
The washer serves as a stop against the crankshaft face and will assist in installing the bearing to the proper depth.

Fig 1: Preparing Special Tool
Courtesy of GENERAL MOTORS CORP.
Install the new pilot bearing (2) onto the tool.
Install the new pilot bearing into the crankshaft using the J 38836 .

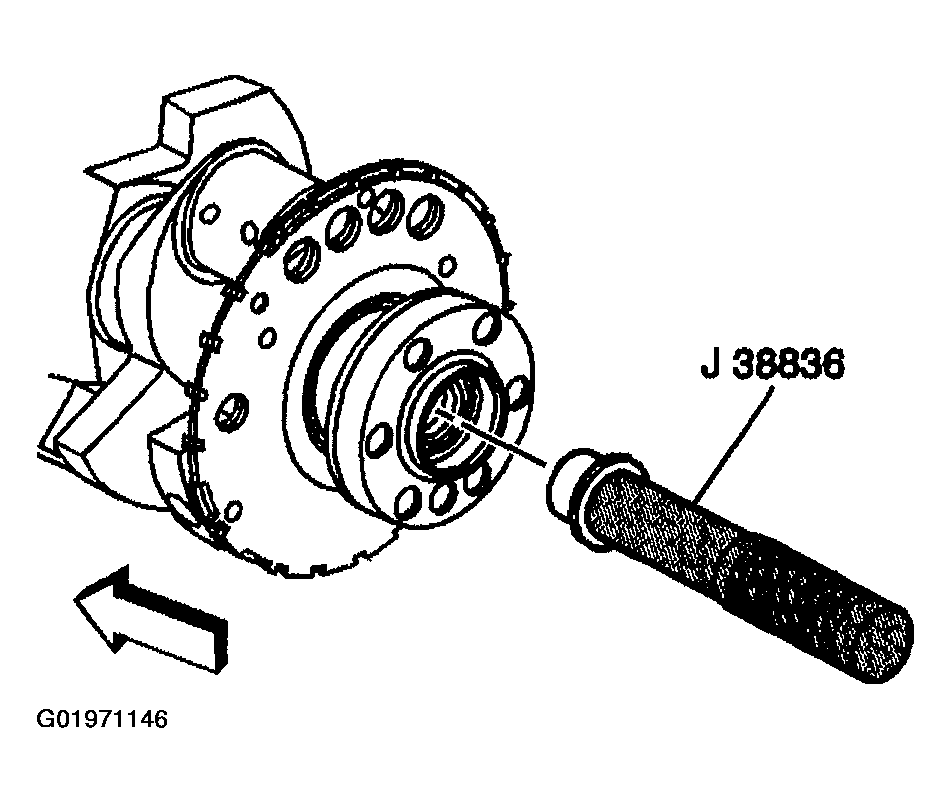

Fig 2: Installing Pilot Bearing Into Crankshaft
Courtesy of GENERAL MOTORS CORP.
Inspect the clutch pilot bearing for proper installation.
A properly installed clutch pilot bearing will be installed until flush to the rear face of the crankshaft.

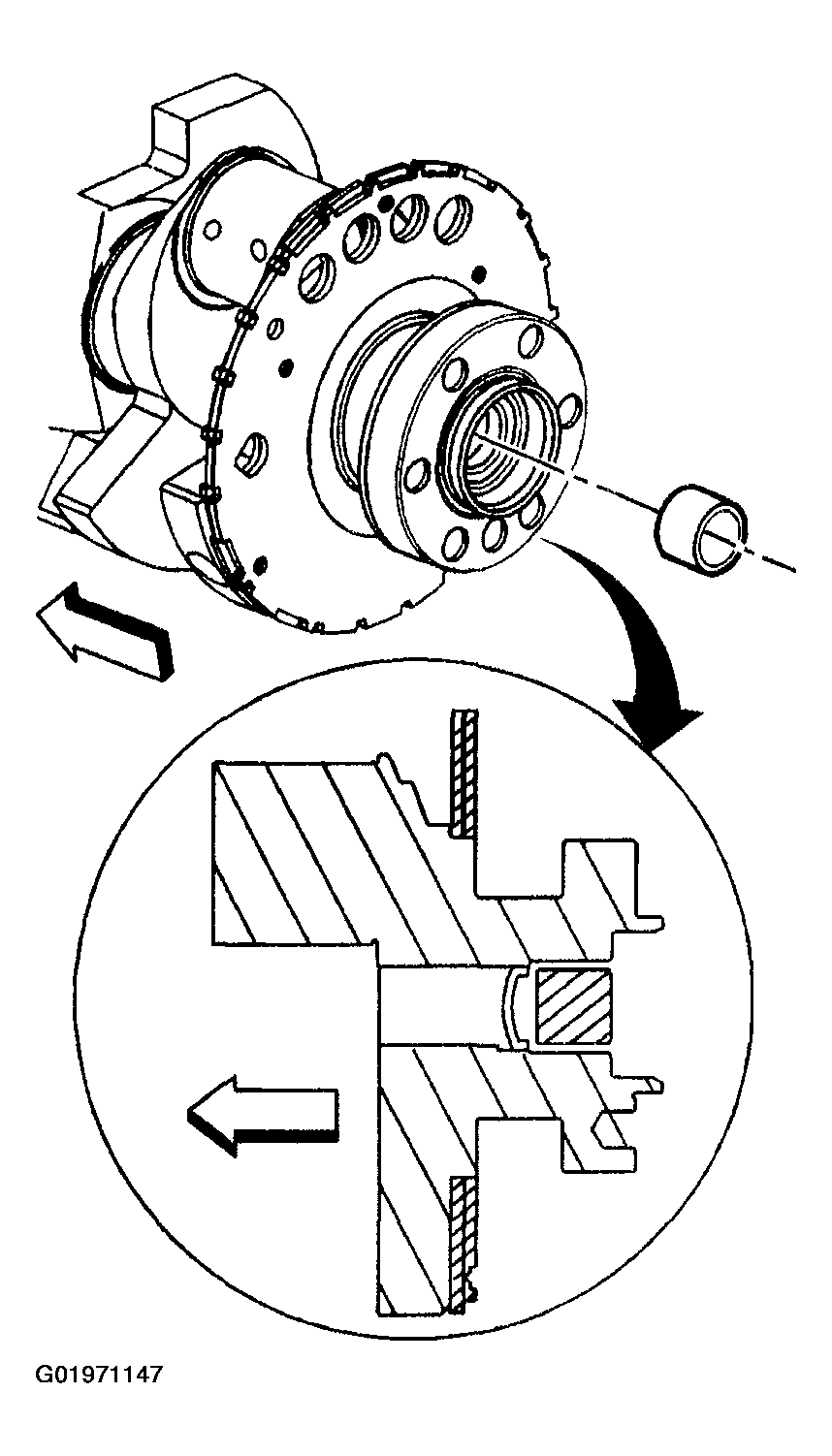

Fig 3: Inspecting Clutch Pilot Bearing For Proper Installation
Courtesy of GENERAL MOTORS CORP.
