Engine Noise Under Load

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

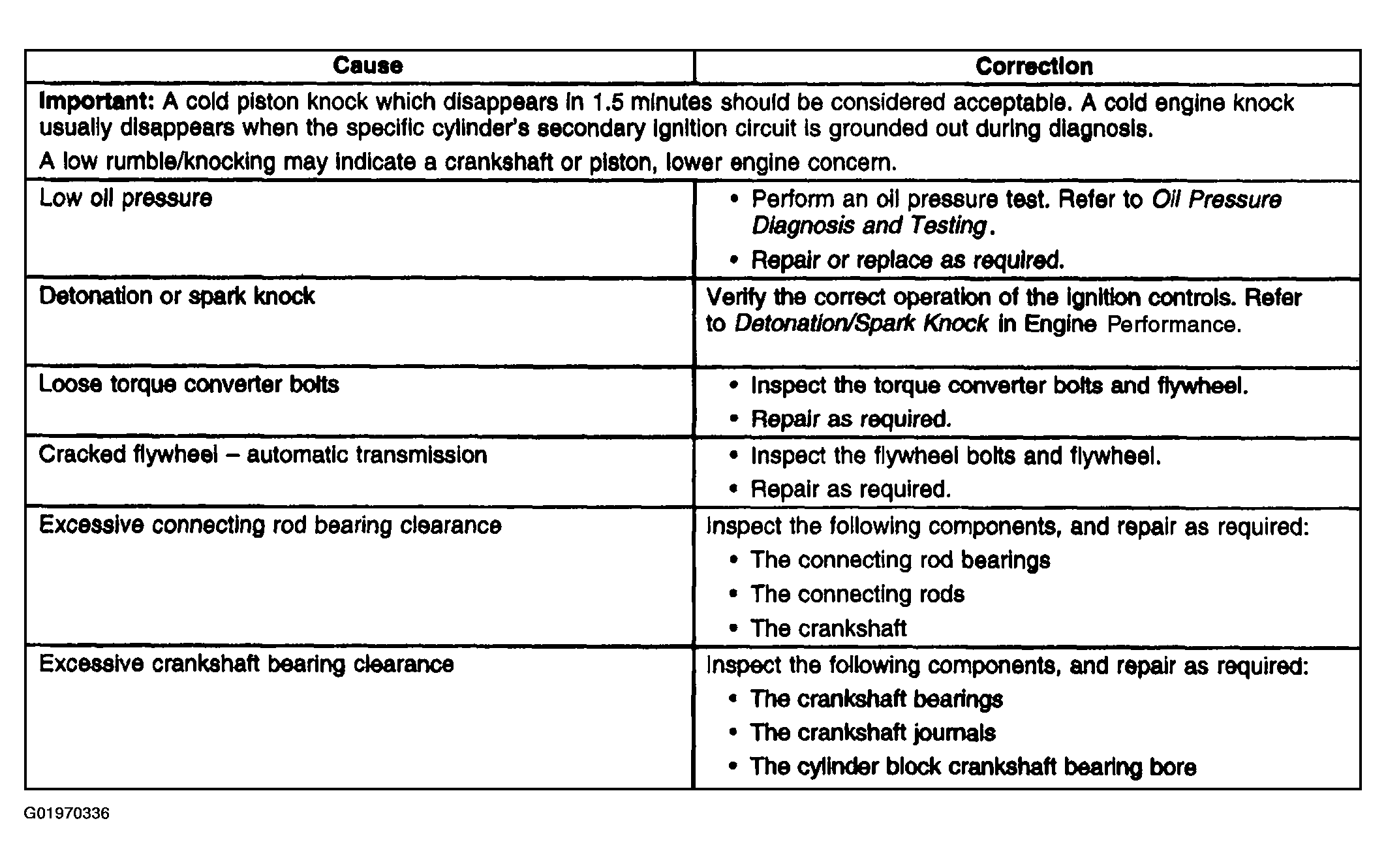

Fig 1: Diagnostic Symptom Check - Engine Noise Under Load
G01970336Courtesy of GENERAL MOTORS CORP.
