ABS Wiring Schematics (Power, Ground, and Stoplamp Switch Signal)

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

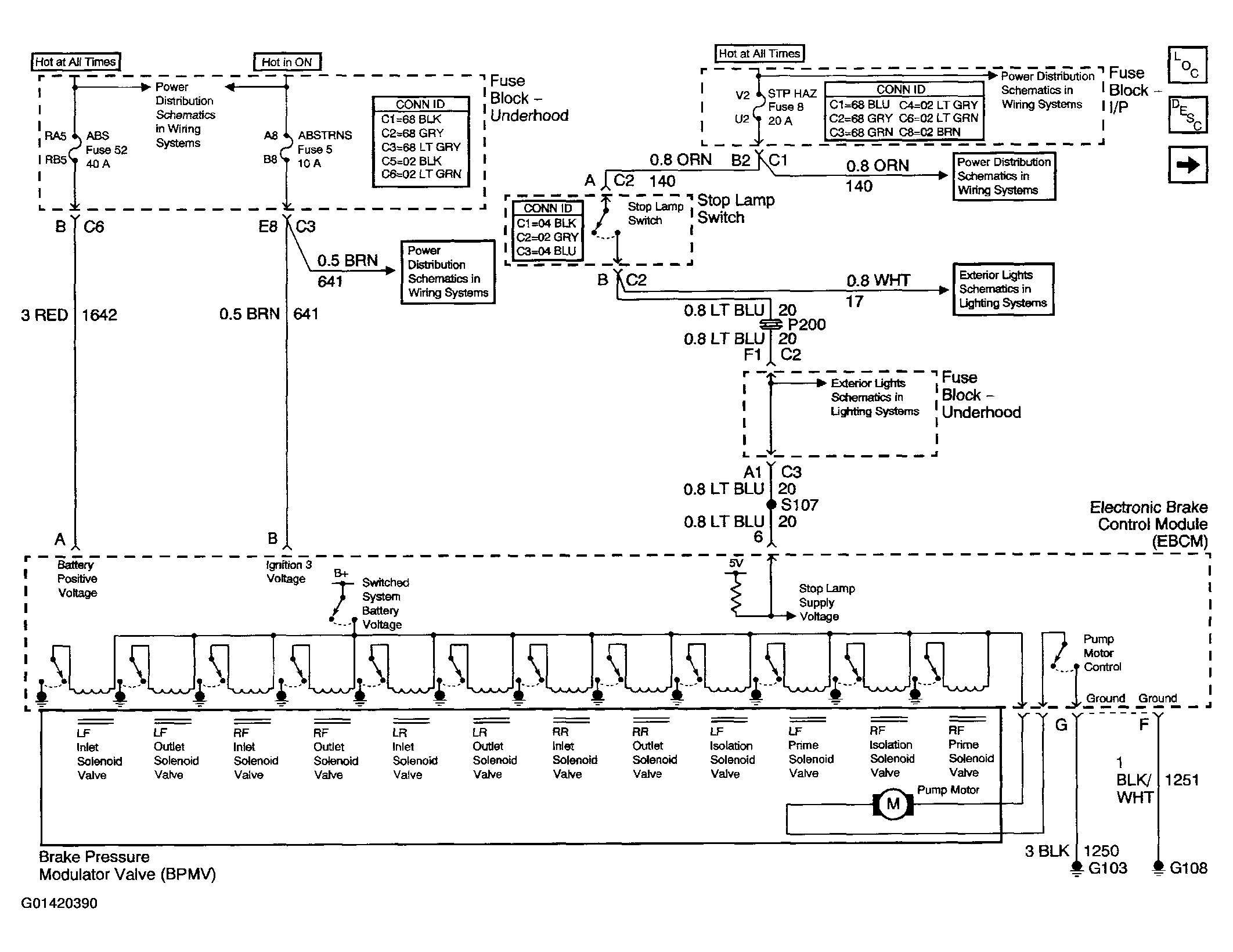

Fig 1: ABS Schematics (Power, Ground, and Stoplamp Switch Signal)
G01420390Courtesy of GENERAL MOTORS CORP.
