Test Description

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

The number below refers to the step number on the diagnostic table.

  1. 2. Determines whether the DTC is current.

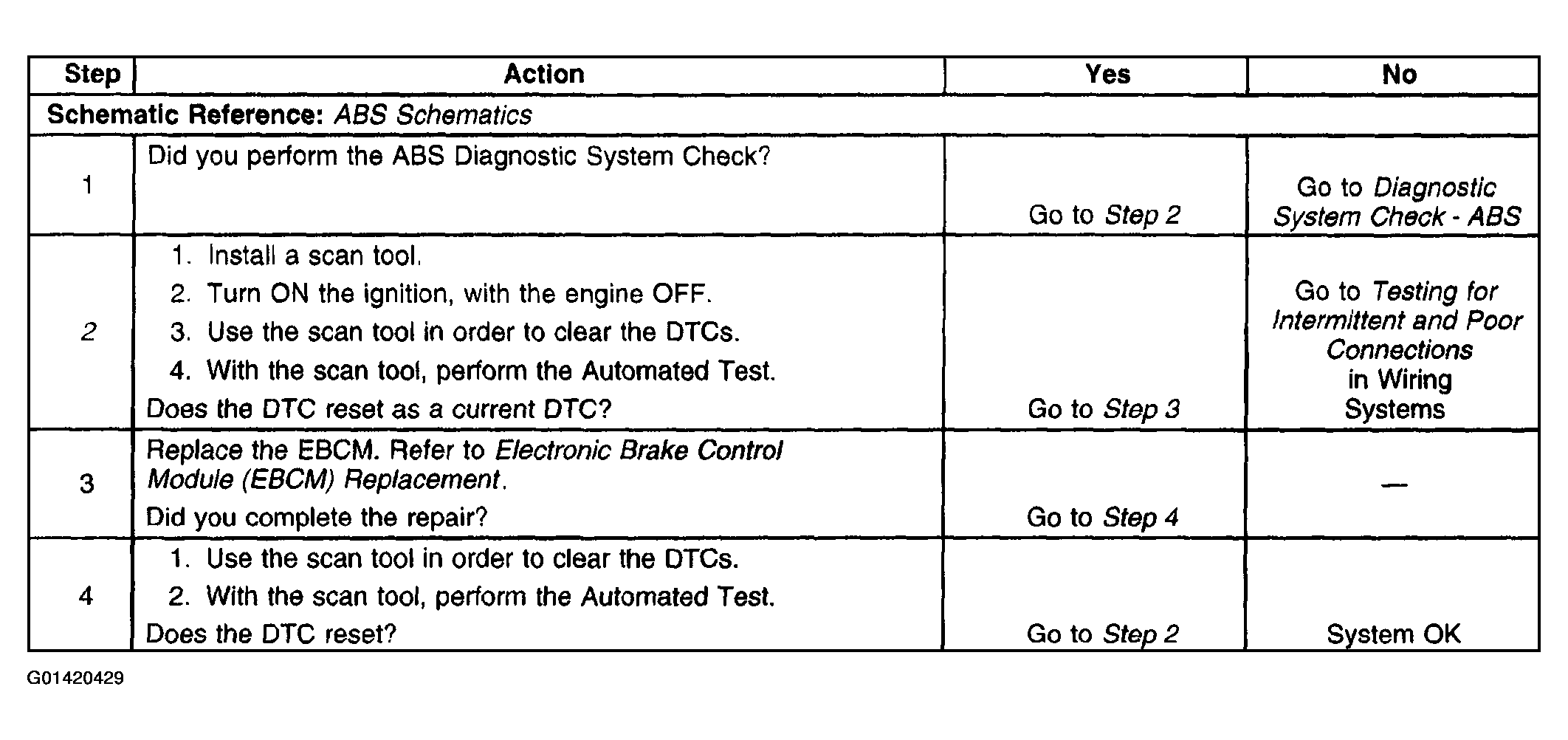

Fig 1: DTC C1261-C1274 Diagnostic System Check
G01420429Courtesy of GENERAL MOTORS CORP.
