Steering Column Does Not Telescope In/Out

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

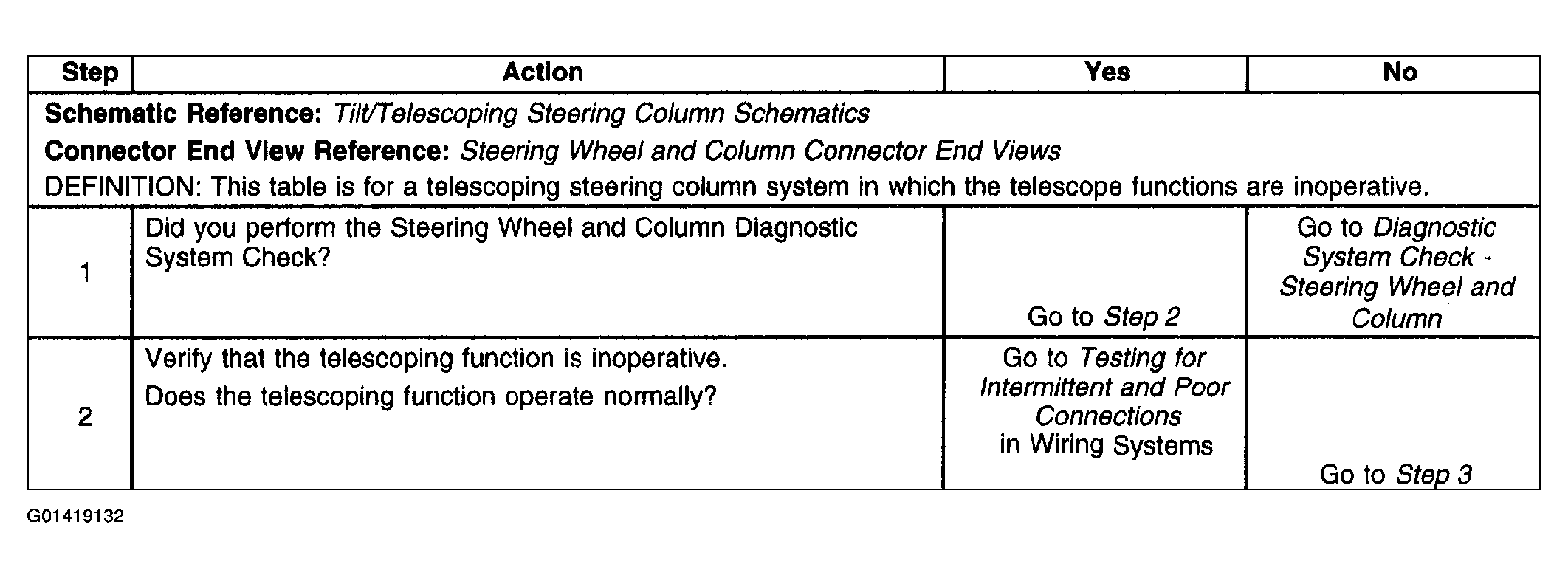

Fig 1: Diagnostic System Check - Steering Column Does Not Telescope In/Out (Steps 1-2)
G01419132Courtesy of GENERAL MOTORS CORP.

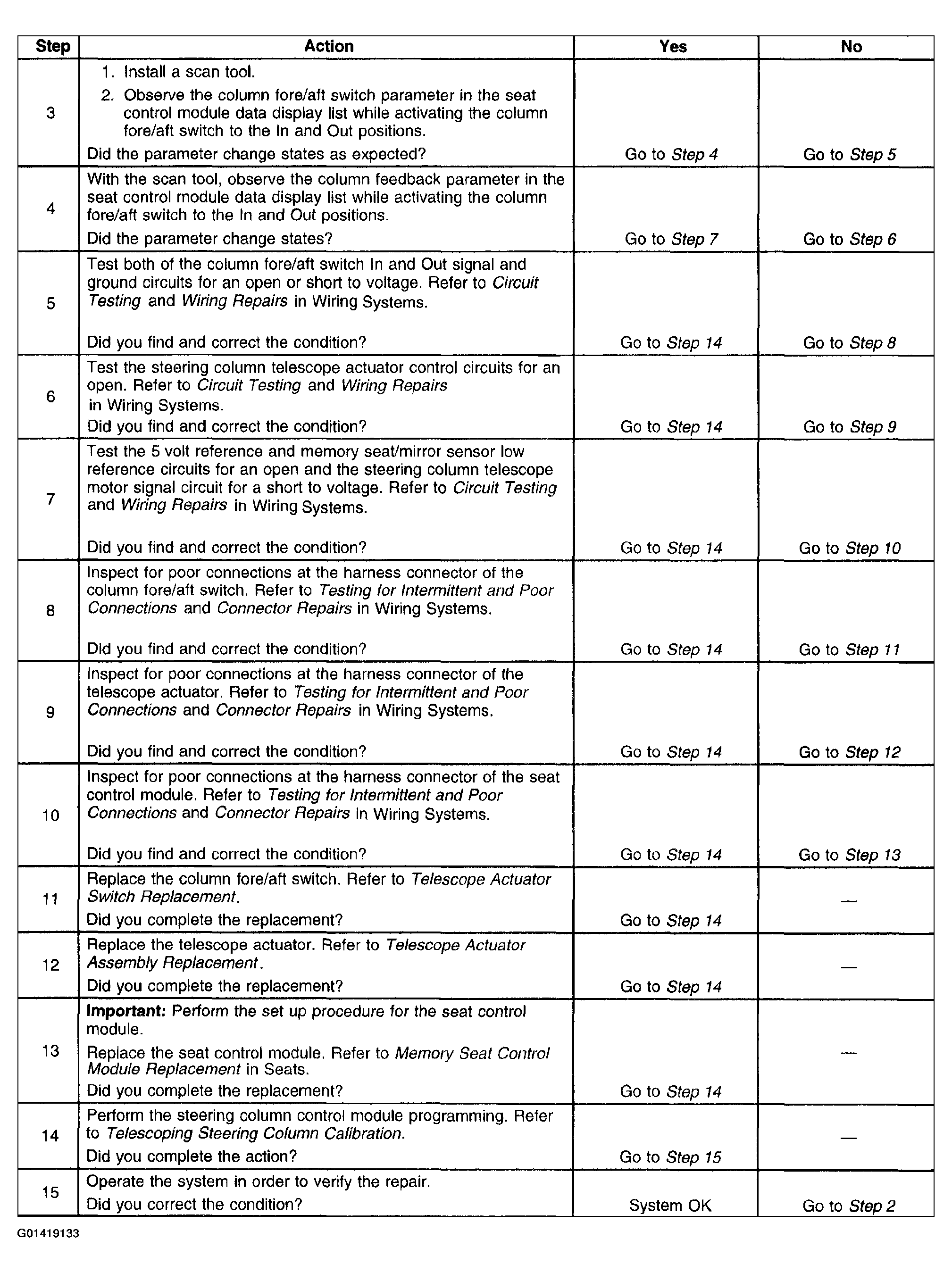

Fig 2: Diagnostic System Check - Steering Column Does Not Telescope In/Out (Steps 3-15)
G01419133Courtesy of GENERAL MOTORS CORP.
