Disassembly Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Loosen both cylinder line fittings (1) on the cylinder end of the gear assembly.
  2. Loosen both fittings on the cylinder line assemblies (3) at the valve end of the gear assembly.

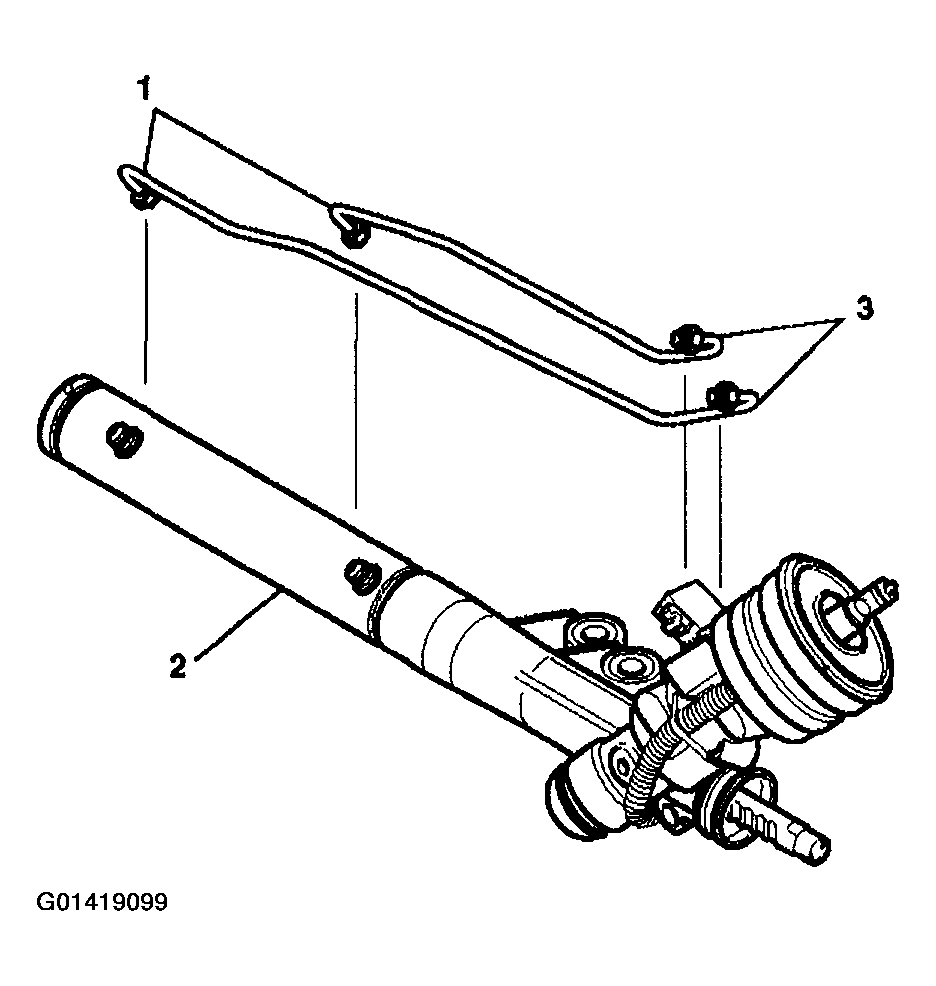

    Fig 1: Locating Fittings On Gear Assembly
    G01419099Courtesy of GENERAL MOTORS CORP.
  3. Remove both cylinder line assemblies (1) from the rack and pinion gear assembly (2).

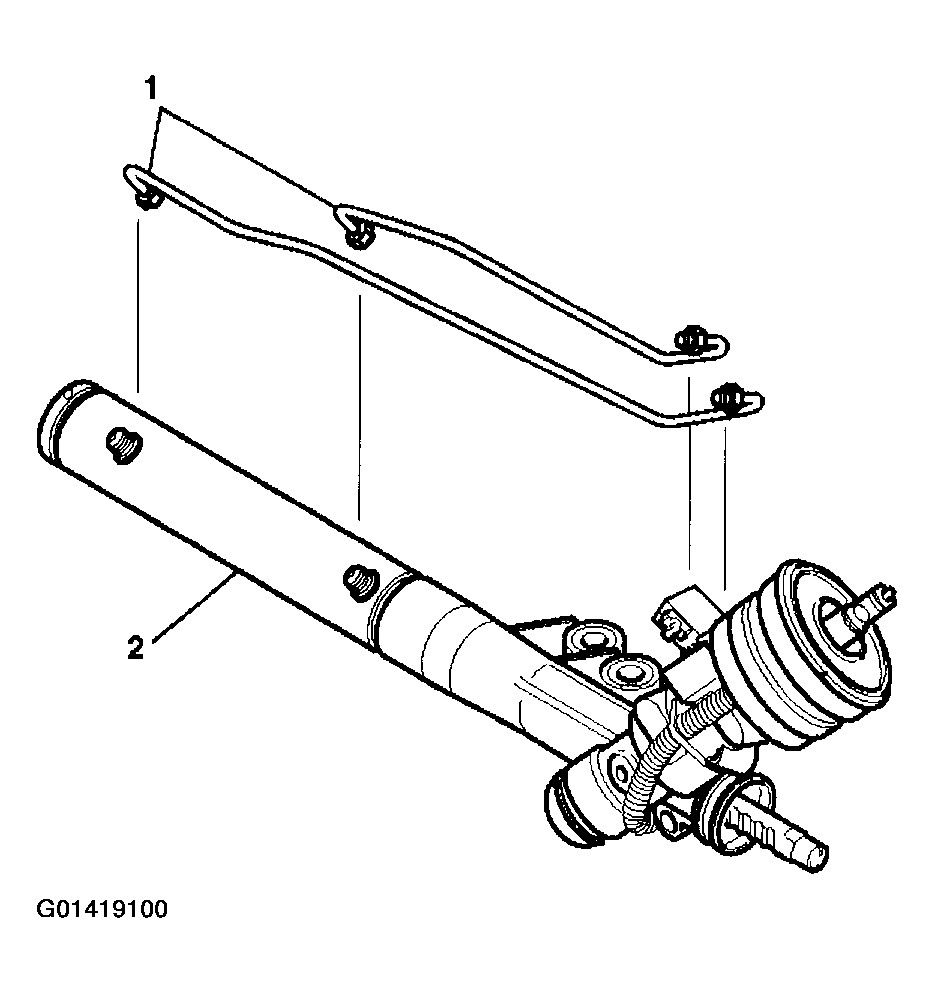

    Fig 2: Removing Cylinder Line Assemblies
    G01419100Courtesy of GENERAL MOTORS CORP.
  4. Remove the O-ring seals (1) from the valve end of line.

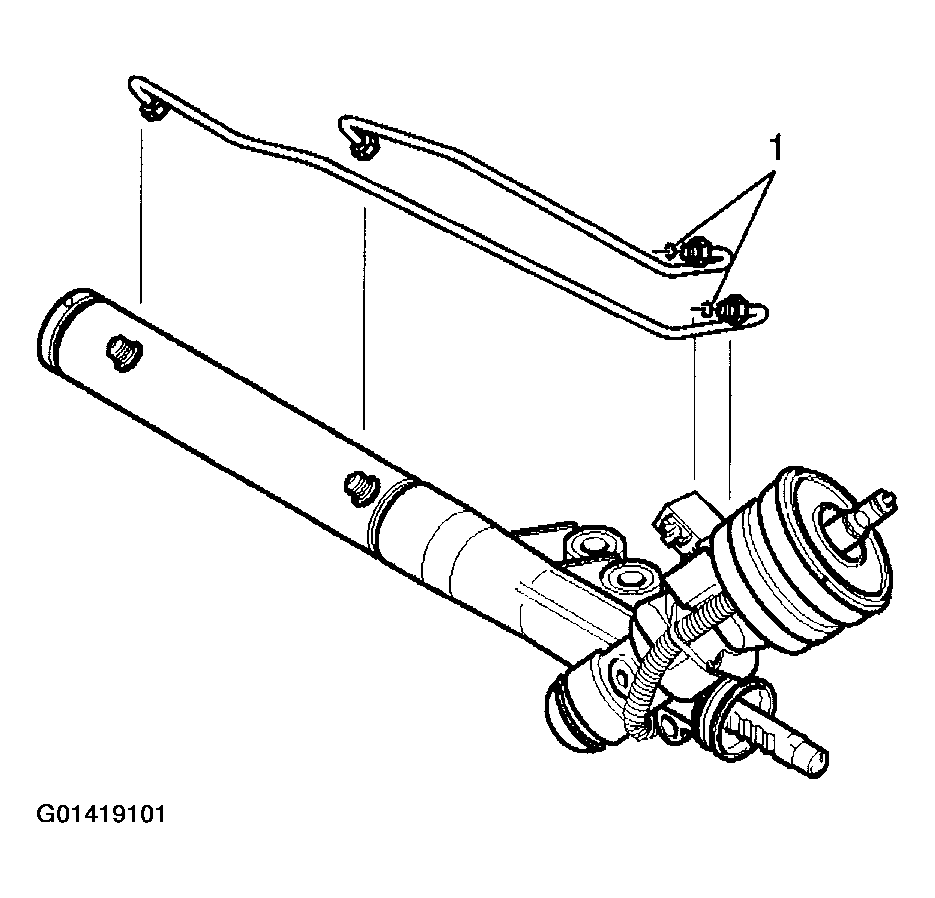

    Fig 3: Locating O-Ring Seals
    G01419101Courtesy of GENERAL MOTORS CORP.
  5. Discard the O-ring seals (1).
