Blower Motor Always On

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

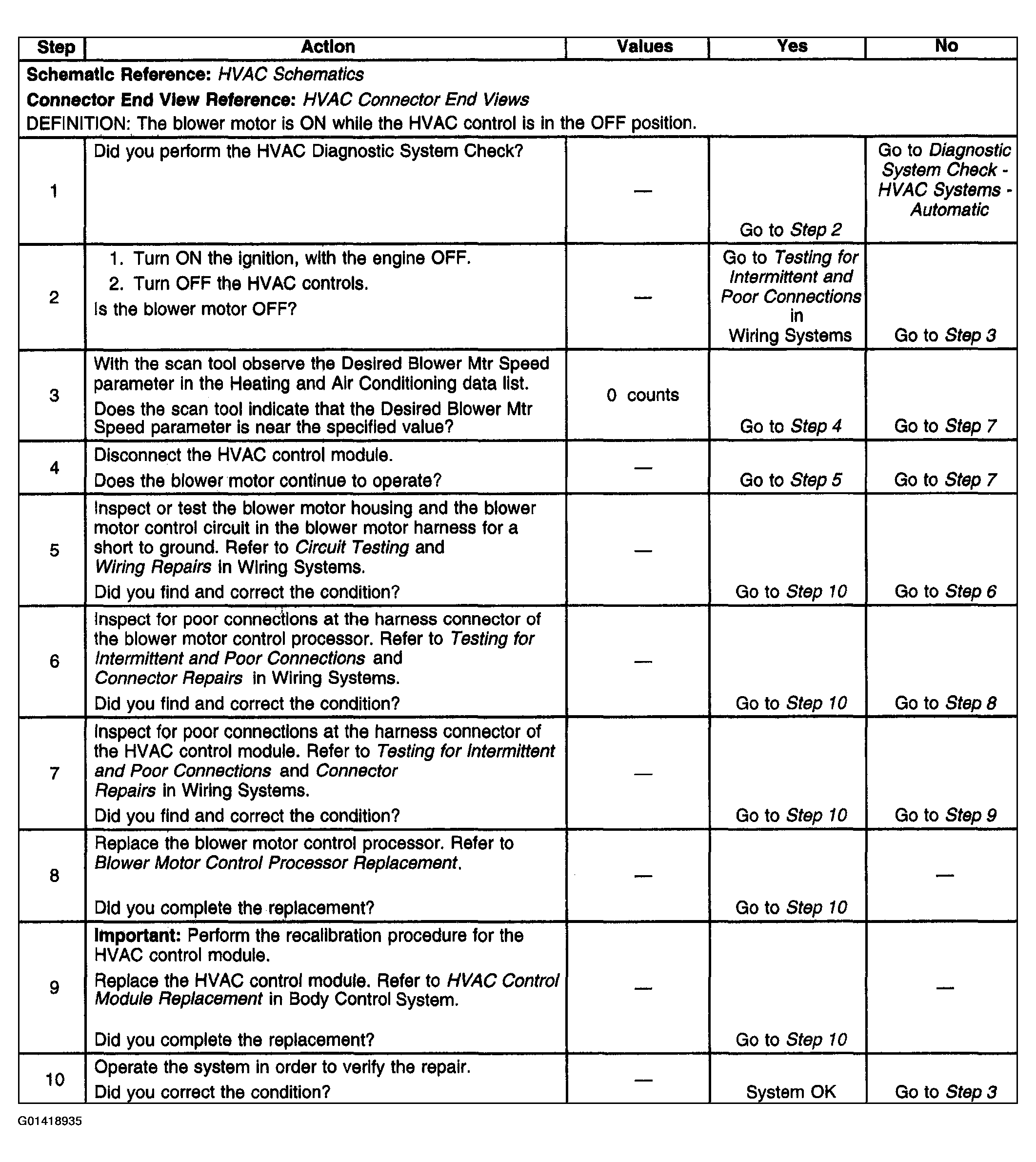

Fig 1: Diagnostic System Check Table (Blower Motor Always On)
G01418935Courtesy of GENERAL MOTORS CORP.
