Solenoid Applications

WARNING: This page is about a different car, the 2003 Saturn Vue and 2002 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

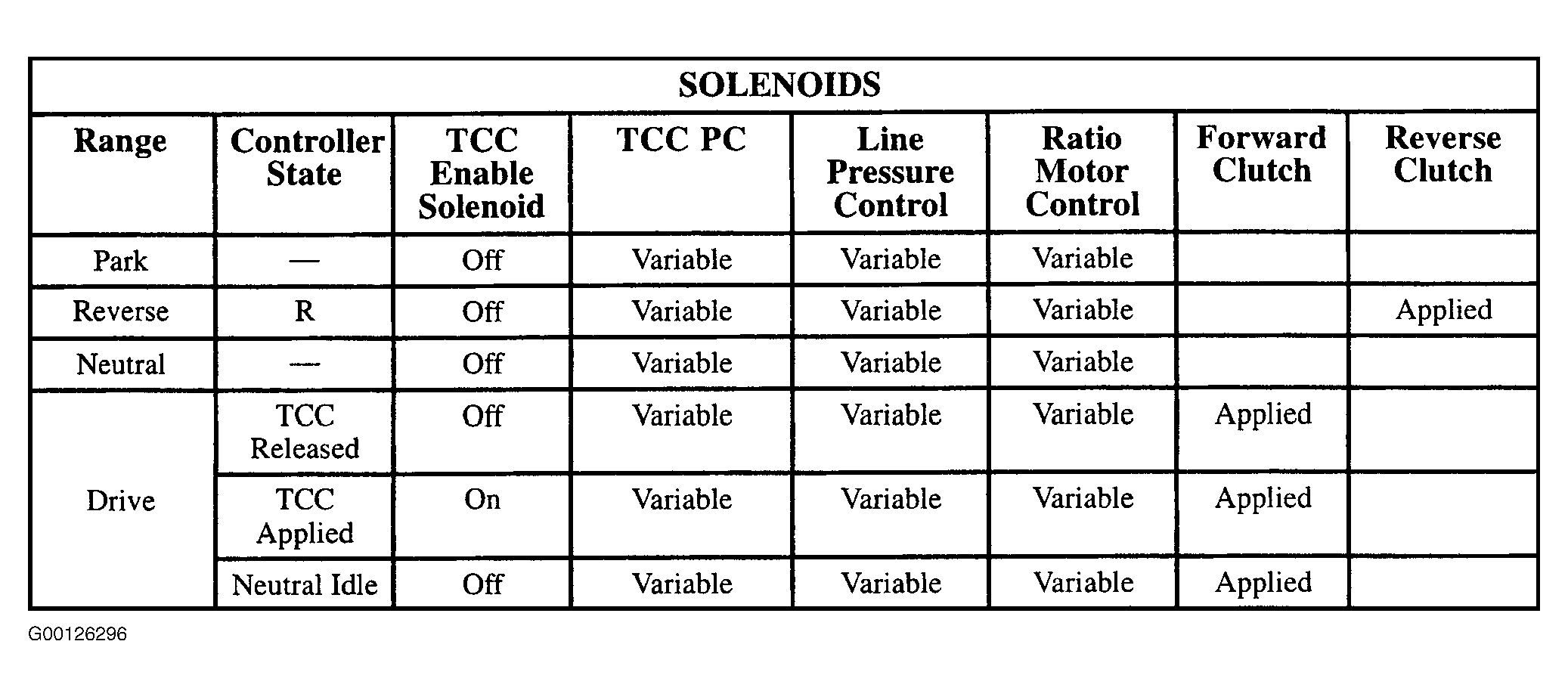

Fig 1: Solenoid Range Reference Chart
G00126296Courtesy of GENERAL MOTORS CORP.
