Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

Using a lint-free clean, dry cloth, carefully clean the sealing surfaces of the heater outlet pipe end, and the coolant surge tank inlet.

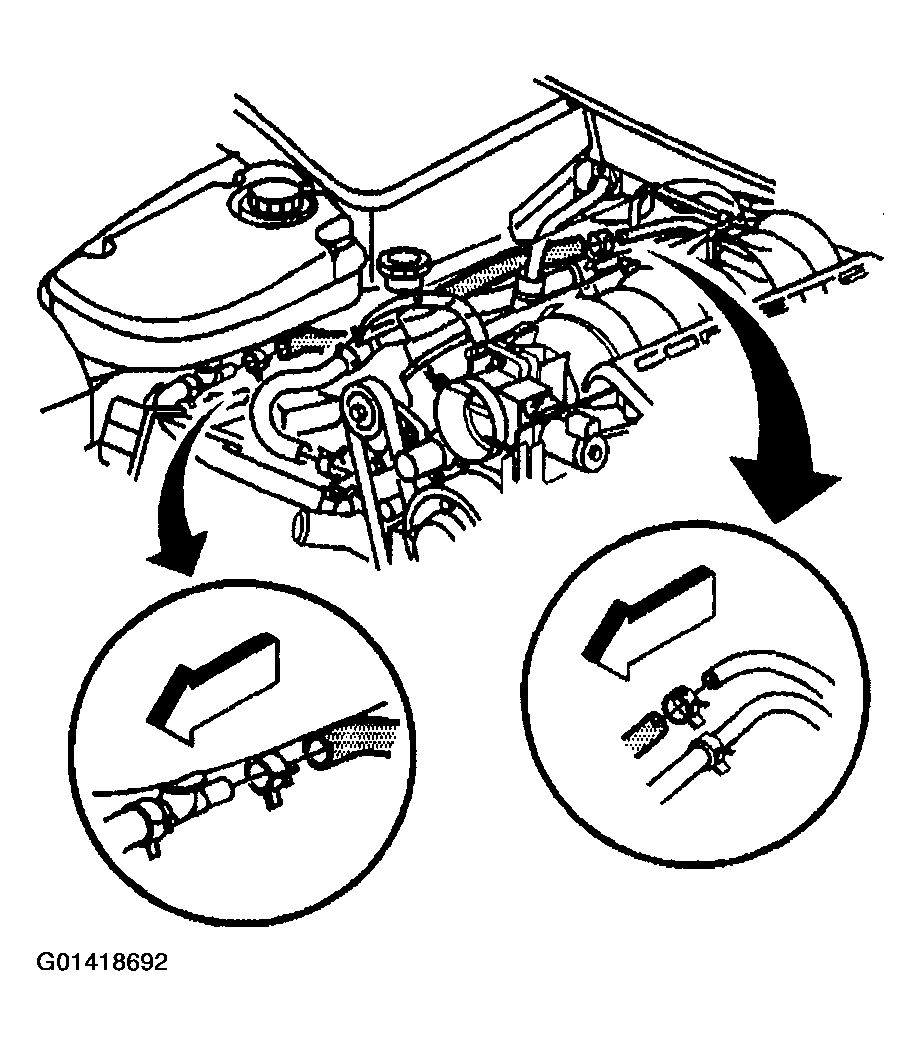

Fig 1: Installing Inlet Heater Hose To Vehicle
Courtesy of GENERAL MOTORS CORP.
Install a new retaining strap (1) to retain the heater inlet hose (2) to the evaporator tube - front.
Position the retaining strap as shown.

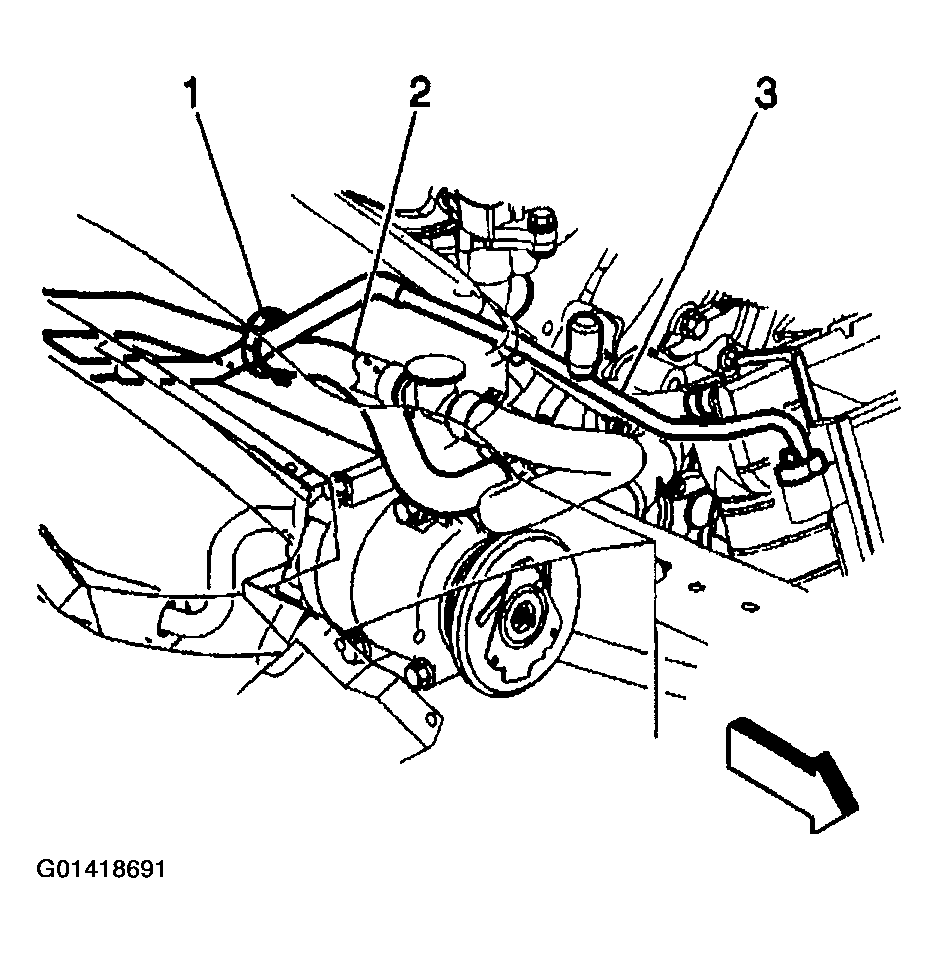

Fig 2: Installing New Retaining Strap To Retain Heater Inlet Hose To Evaporator Tube - Front
Courtesy of GENERAL MOTORS CORP.
Install the outlet heater hose to the heater outlet pipe.

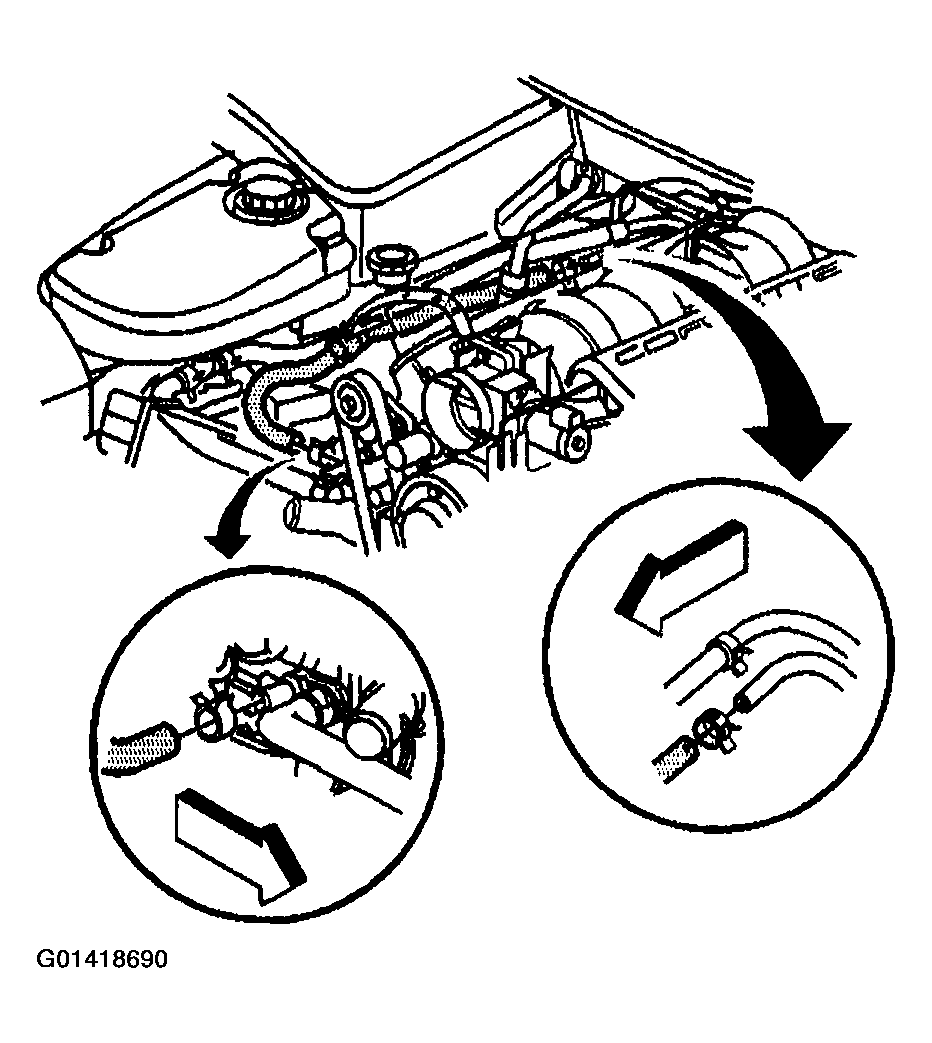

Fig 3: Installing Outlet Heater Hose To Heater Outlet Pipe
Courtesy of GENERAL MOTORS CORP.
Using the J 38185, install the heater hose clamp. Align the heater hose clamp as shown.
Install the outlet heater hose to the coolant surge tank.
Using the J 38185, install the heater hose clamp. Align the heater hose clamp as shown.
Refill the cooling system. Refer to DRAINING AND FILLING COOLING SYSTEM in Engine Cooling.
