Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the I/P upper trim pad. Refer to TRIM PAD REPLACEMENT - INSTRUMENT PANEL (I/P) UPPER in Instrument Panel, Gages and Console.
  2. Remove the side window defogger upper outlet duct.
    1. 2.1. Remove the push-in retainers.
    2. 2.2. Use a twisting motion to release the upper duct from the lower duct.

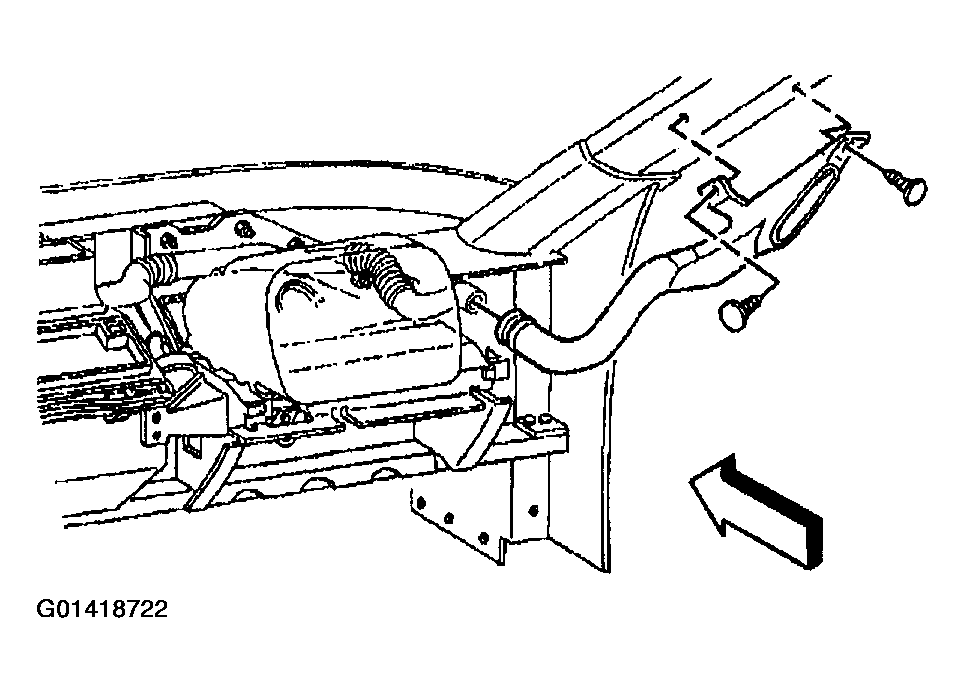

    Fig 1: Removing Side Window Defogger Upper Outlet Duct
    G01418722Courtesy of GENERAL MOTORS CORP.
  3. Remove the side window defogger lower outlet duct.
    1. 3.1. Depress the duct retaining tabs and remove the duct from the passenger SIR bracket.
    2. 3.2. Use a twisting motion to release the upper duct from the windshield defroster duct.

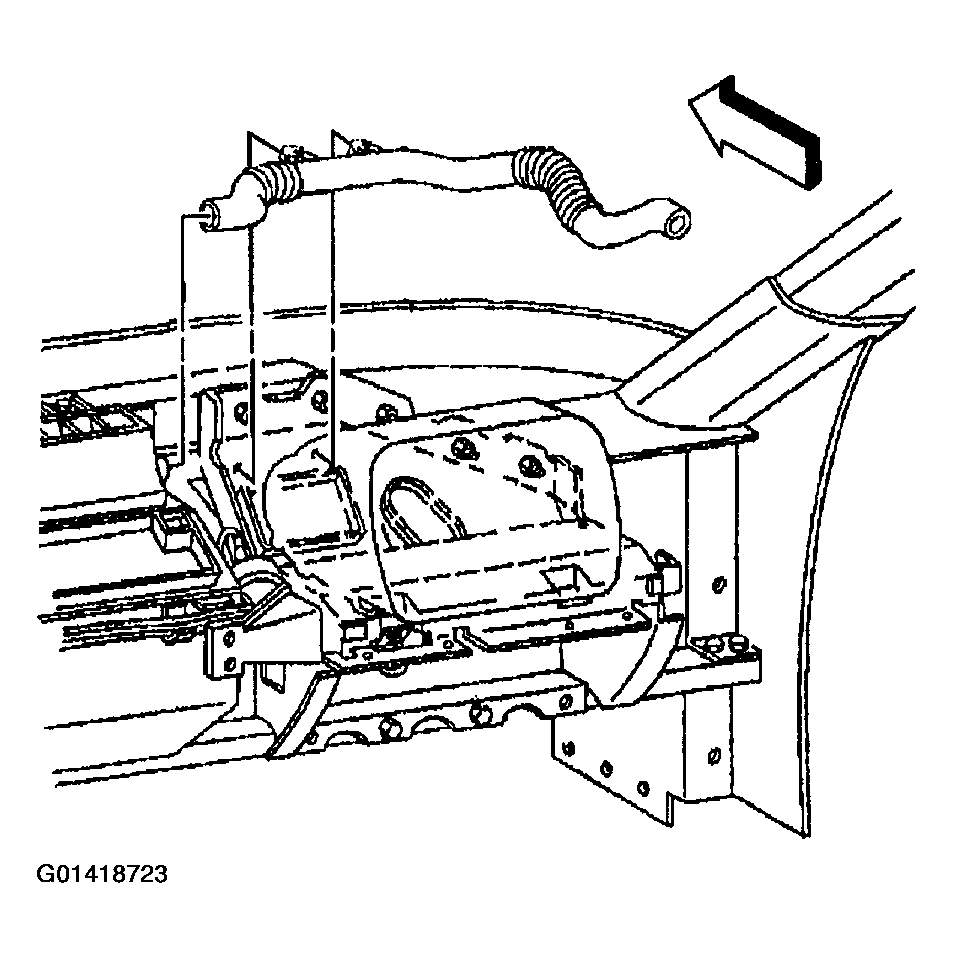

    Fig 2: Removing Side Window Defogger Lower Outlet Duct
    G01418723Courtesy of GENERAL MOTORS CORP.
