Tools Required

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

J 41790  A/C Compressor Holding Fixture

  1. Clean the pressure relief valve seat area of the rear head.
  2. Lubricate the O-ring of the new pressure relief valve with clean 525 viscosity refrigerant oil.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the new pressure relief valve into the A/C compressor.

    Tighten

    Tighten the valve to 9 N.m (80 lb in).

  4. Remove the A/C compressor from the J 41790  .
  5. Install the A/C compressor into the vehicle.

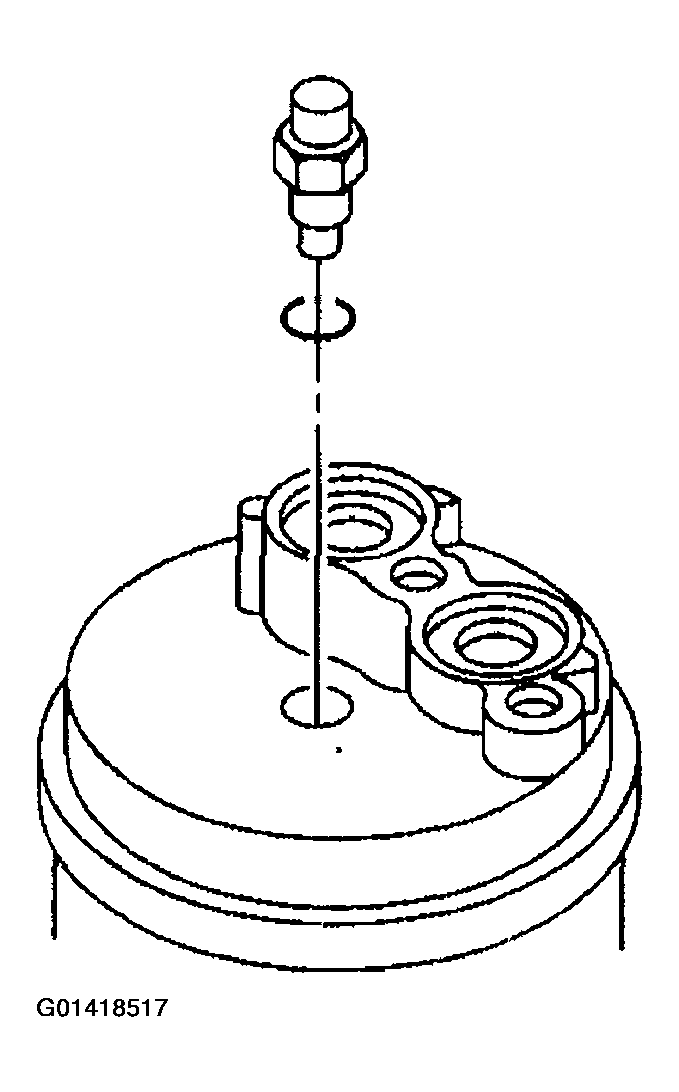

Fig 1: Installing Compressor Pressure Relief Valve
G01418517Courtesy of GENERAL MOTORS CORP.
