Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the I/P upper trim pad. Refer to TRIM PAD REPLACEMENT - INSTRUMENT PANEL (I/P) UPPER in Instrument Panel, Gages and Console.
  2. Remove the screws retaining the air distribution duct to the underside of the upper trim pad.
  3. Remove the air distribution duct.

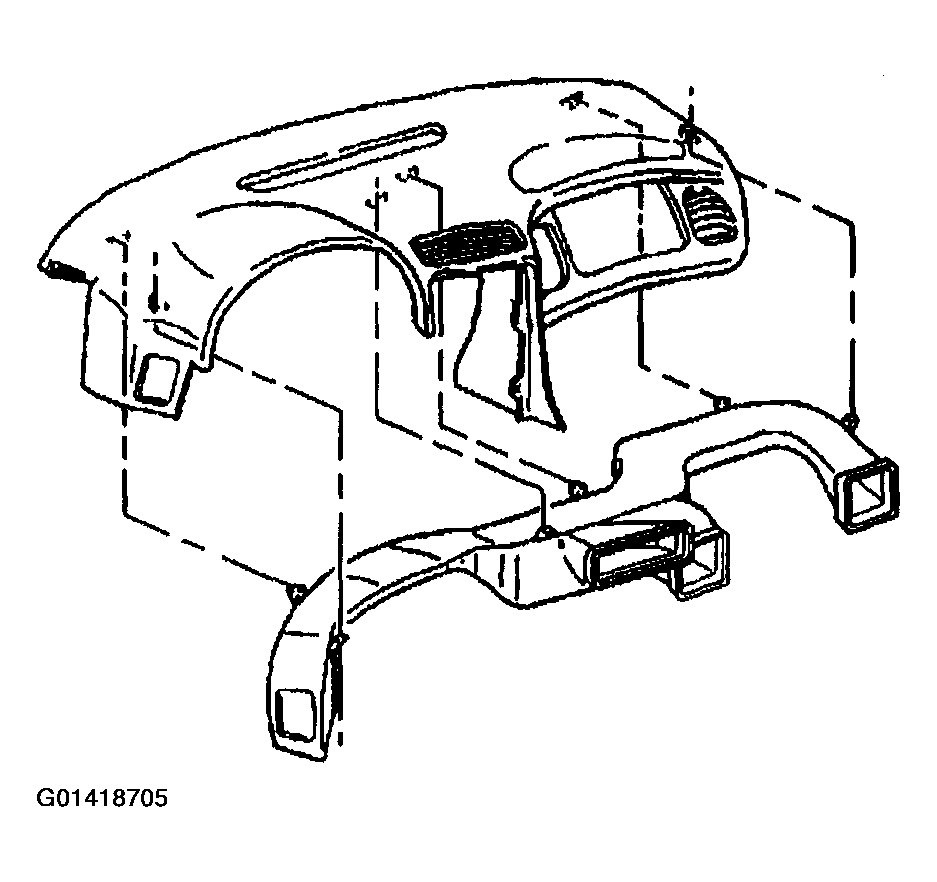

    Fig 1: Removing Air Distribution Duct
    G01418705Courtesy of GENERAL MOTORS CORP.
  4. Remove the screws retaining the center air outlet to the underside of the trim pad.
  5. Remove the air outlet.
    Fig 2: Removing Air Outlet
    G01418706Courtesy of GENERAL MOTORS CORP.
  6. Remove the hazard warning switch from the center air outlet.

    CAREFULLY release the switch retaining tabs from the rear of the air outlet, then pull to remove the switch. The hazard warning switch button will release from the switch.

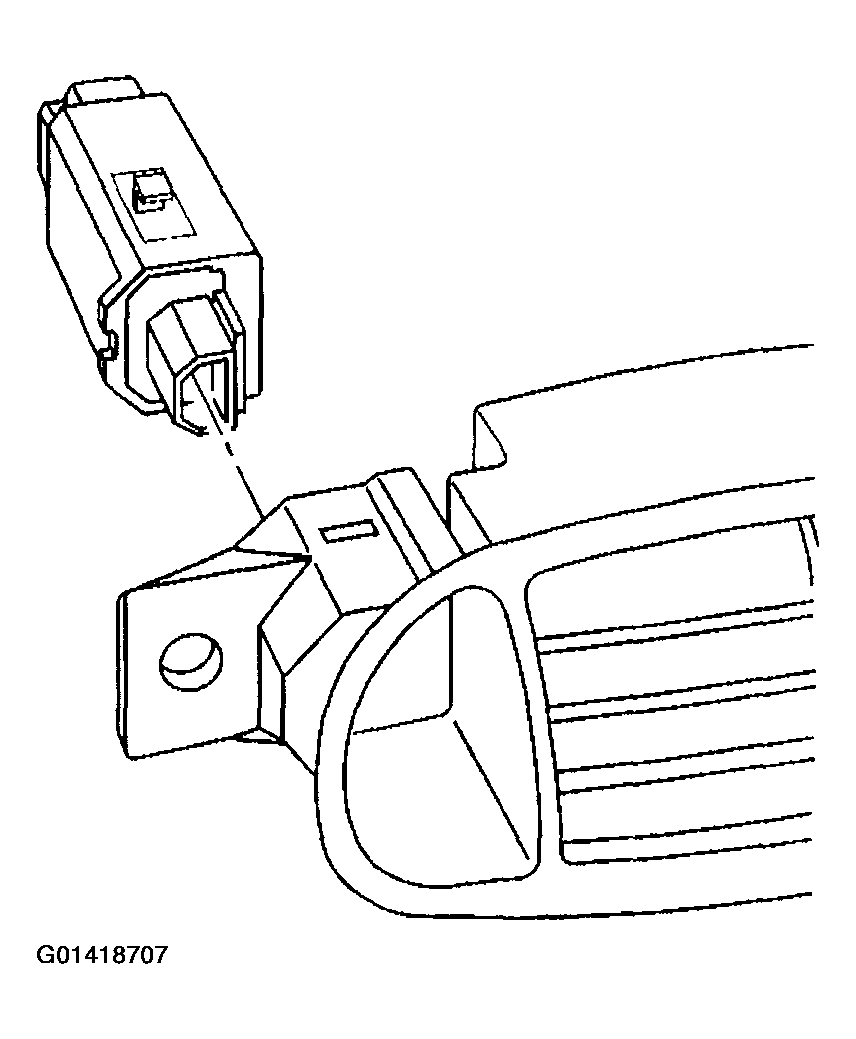

    Fig 3: Removing Hazard Warning Switch From Center Air Outlet
    G01418707Courtesy of GENERAL MOTORS CORP.
