Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the hazard warning switch to the center air outlet.

    Align the switch to the rear of the air outlet, then push to secure the switch.

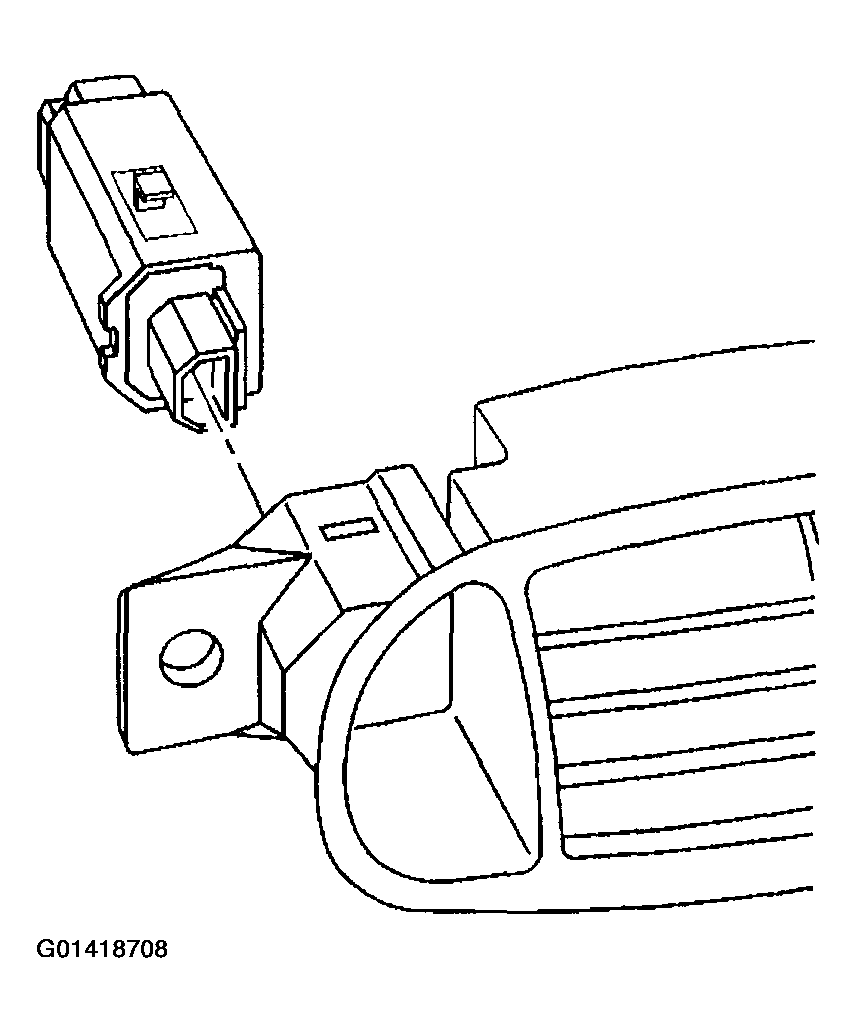

    Fig 1: Installing Hazard Warning Switch To Center Air Outlet
    G01418708Courtesy of GENERAL MOTORS CORP.
  2. Install the air outlet into position on the upper trim pad.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the screws retaining the center air outlet to the trim pad.

    Tighten

    Tighten the screws to 1.7 N.m (15 lb in).

    Fig 2: Installing Air Outlet On Upper Trim Pad
    G01418709Courtesy of GENERAL MOTORS CORP.

    Important:  Align the button to the switch, then push to secure.

  4. Install the hazard warning switch button.
    Fig 3: Installing Hazard Warning Switch Button
    G01418710Courtesy of GENERAL MOTORS CORP.
  5. Install the air distribution duct into position on the upper trim pad.

    Insert the duct retaining tabs into the trim pad slots.

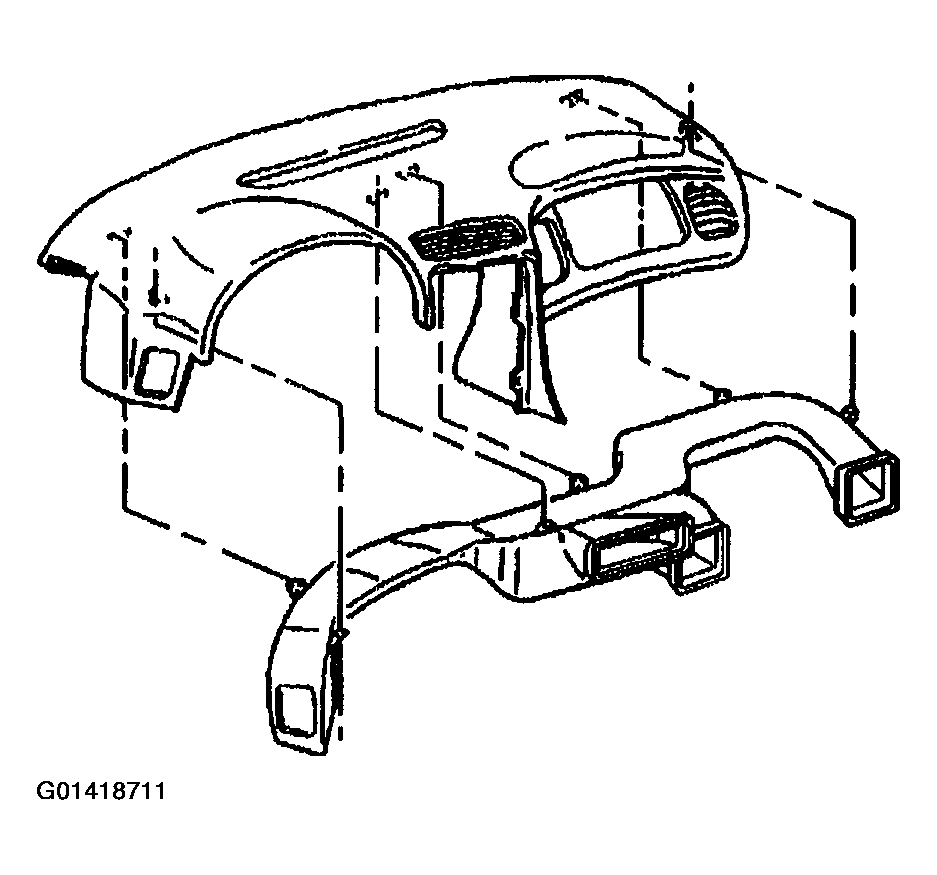

    6. Fig 4: Installing Air Distribution Duct On Upper Trim Pad
    G01418711Courtesy of GENERAL MOTORS CORP.
  6. Install the screws retaining the air distribution duct to the trim pad.

    Tighten

    Tighten the screws to 1.8 N.m (16 lb in).

  7. Install the I/P upper trim pad. Refer to TRIM PAD REPLACEMENT - INSTRUMENT PANEL (I/P) UPPER in Instrument Panel, Gages and Console.
