Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the IP upper trim pad. Refer to TRIM PAD REPLACEMENT - INSTRUMENT PANEL (I/P) UPPER in Instrument Panel, Gages and Console.
  2. Pull the front floor carpet away from the RH side of the driveline tunnel to access the floor air outlet - inner.
  3. Release the floor air outlet - inner from the floor air outlet lower duct - RH rear.

    Use a twisting motion to release the floor outlet from the floor duct.

  4. Release the floor air outlet lower duct - RH rear from the floor air outlet duct - RH rear, then remove the duct.

    Use a twisting motion to release the lower duct from the duct.

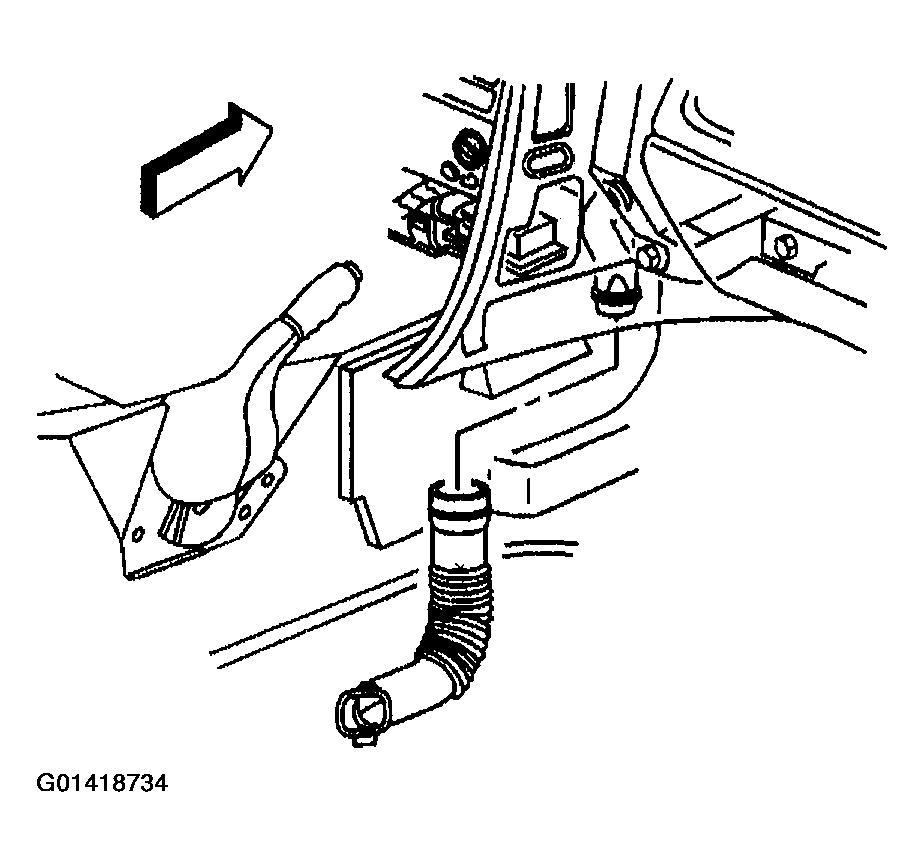

    Fig 1: Removing Air Outlet Duct - Rear Floor, RH
    G01418734Courtesy of GENERAL MOTORS CORP.
  5. Using a flat bladed screwdriver, CAREFULLY release the floor air outlet duct - RH rear from the HVAC module.
  6. Lower the duct down between the IP center support bracket and the side of the driveline tunnel, then remove the duct.
    Fig 2: Removing Floor Air Outlet Duct
    G01418735Courtesy of GENERAL MOTORS CORP.
