Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Insert the floor air outlet duct - RH rear up between the IP center support bracket and the side of the driveline tunnel, then position the duct to the HVAC module.
  2. Align the floor duct to the HVAC module, then push firmly and evenly to secure the duct.

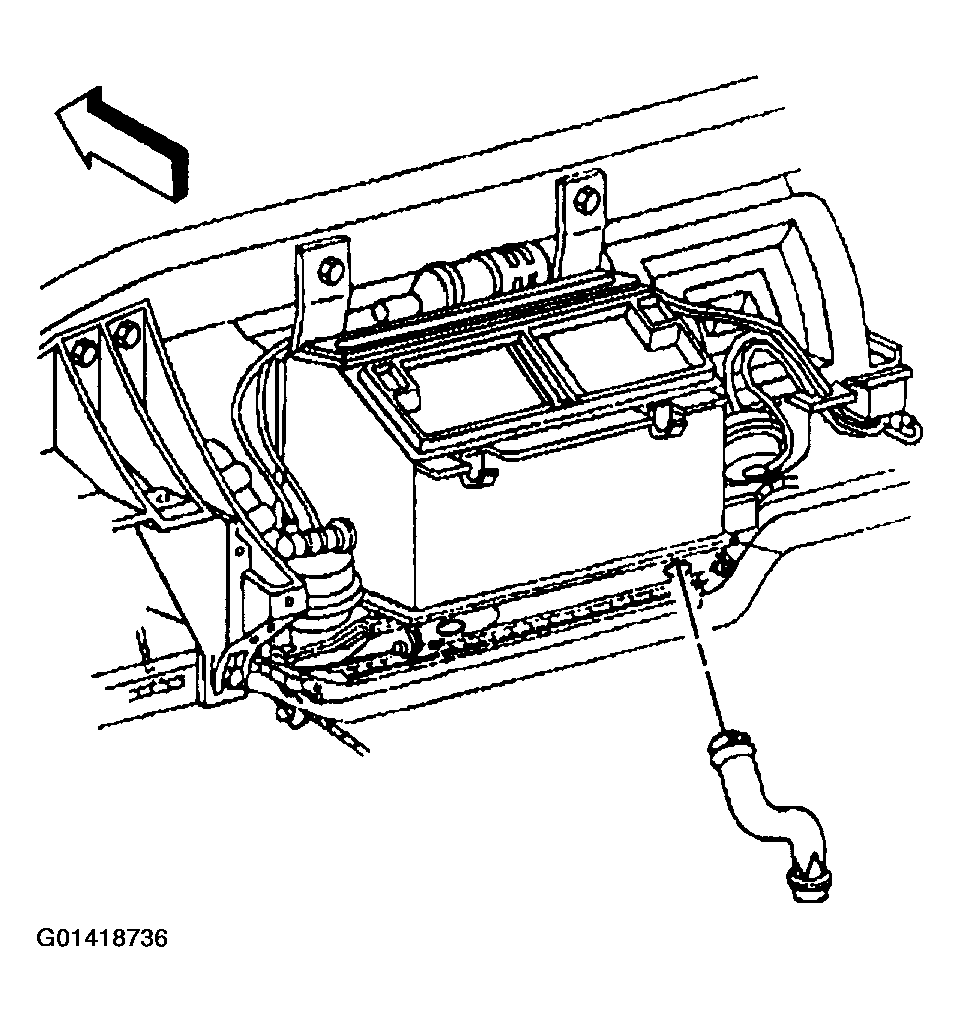

    Fig 1: Installing Floor Air Outlet Duct
    G01418736Courtesy of GENERAL MOTORS CORP.
  3. Position and secure the floor air outlet lower duct - RH rear to the floor air outlet duct - RH rear.

    Use a twisting motion to secure the lower duct to the duct.

  4. Secure the floor air outlet - inner to the floor air outlet lower duct - RH rear.

    Use a twisting motion to secure the floor outlet to the floor duct.

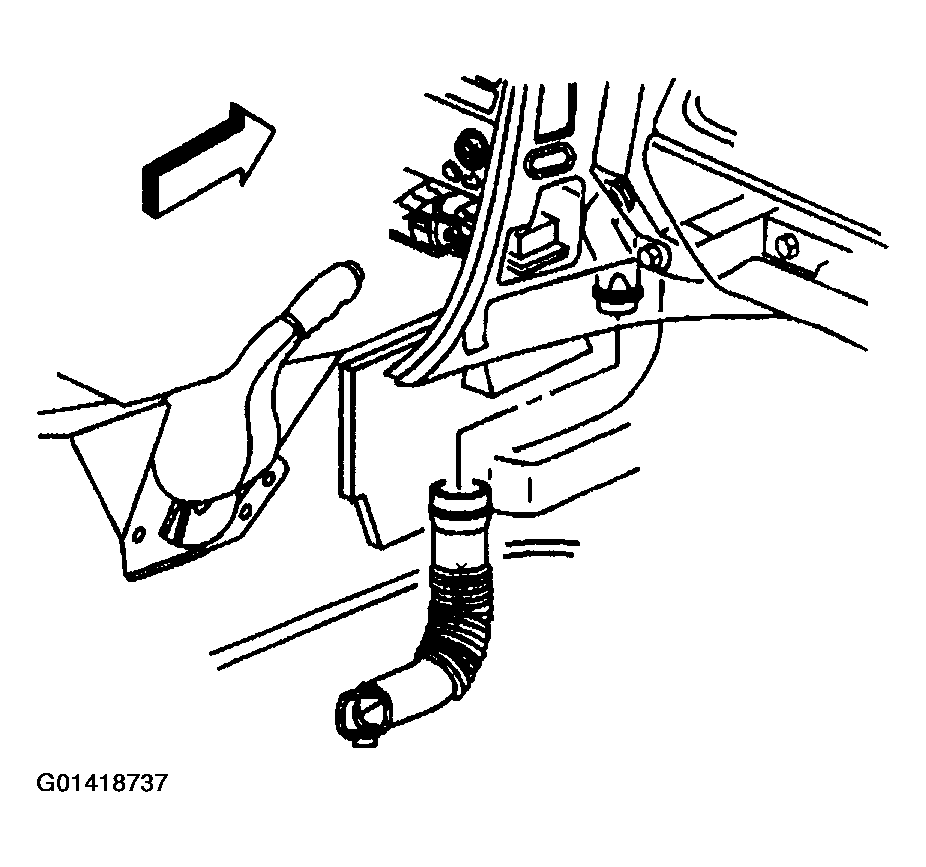

    Fig 2: Installing Air Outlet Duct - Rear Floor, RH
    G01418737Courtesy of GENERAL MOTORS CORP.
  5. Position the front floor carpet to the RH side of the driveline tunnel.
  6. Install the IP upper trim pad. Refer to TRIM PAD REPLACEMENT - INSTRUMENT PANEL (I/P) UPPER in Instrument Panel, Gages and Console.
