Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the RH lower closeout/insulator panel. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - RIGHT in Instrument Panel, Gages and Console.
  2. Remove the lower half of the floor air outlet duct.

    Using a flat bladed tool, release the retaining tabs, then remove the lower duct.

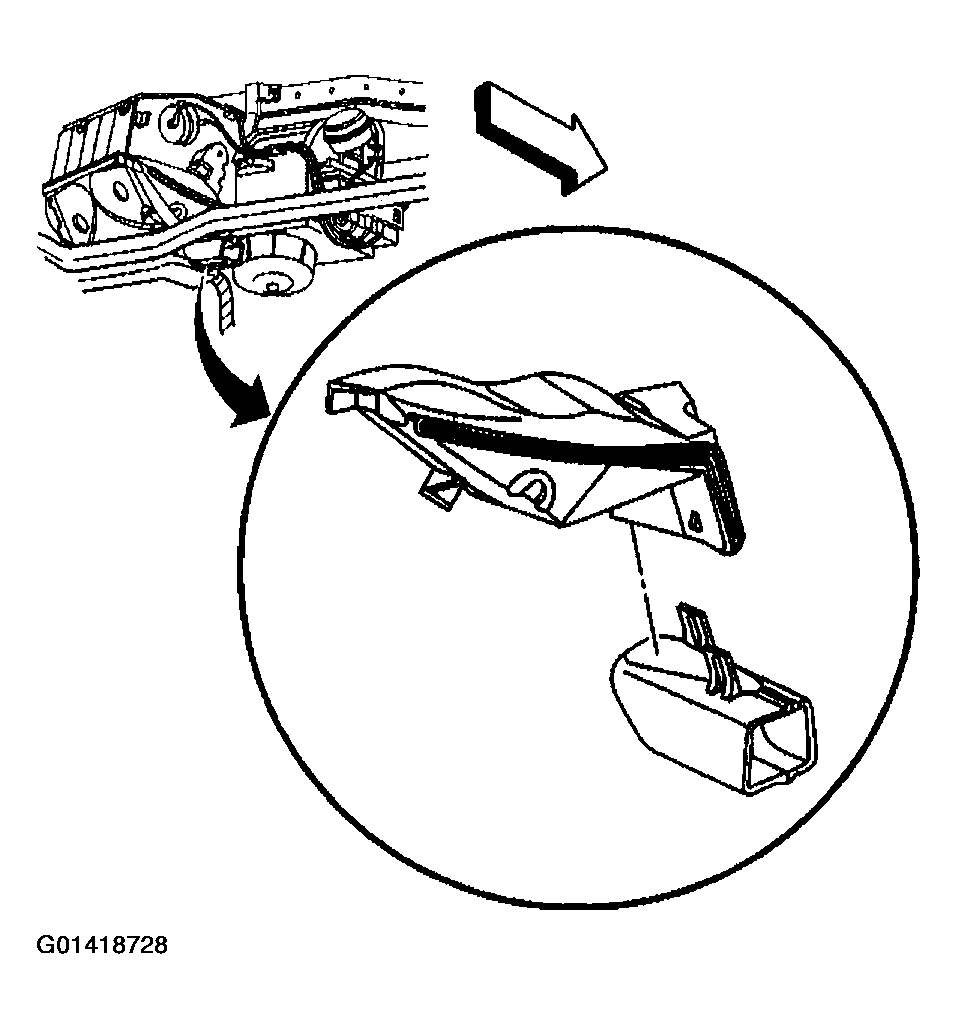

    Fig 1: Removing Lower Half Of Floor Air Outlet Duct - RH
    G01418728Courtesy of GENERAL MOTORS CORP.
  3. Remove the floor air outlet duct retaining screws.
  4. Remove the floor duct, upper half.

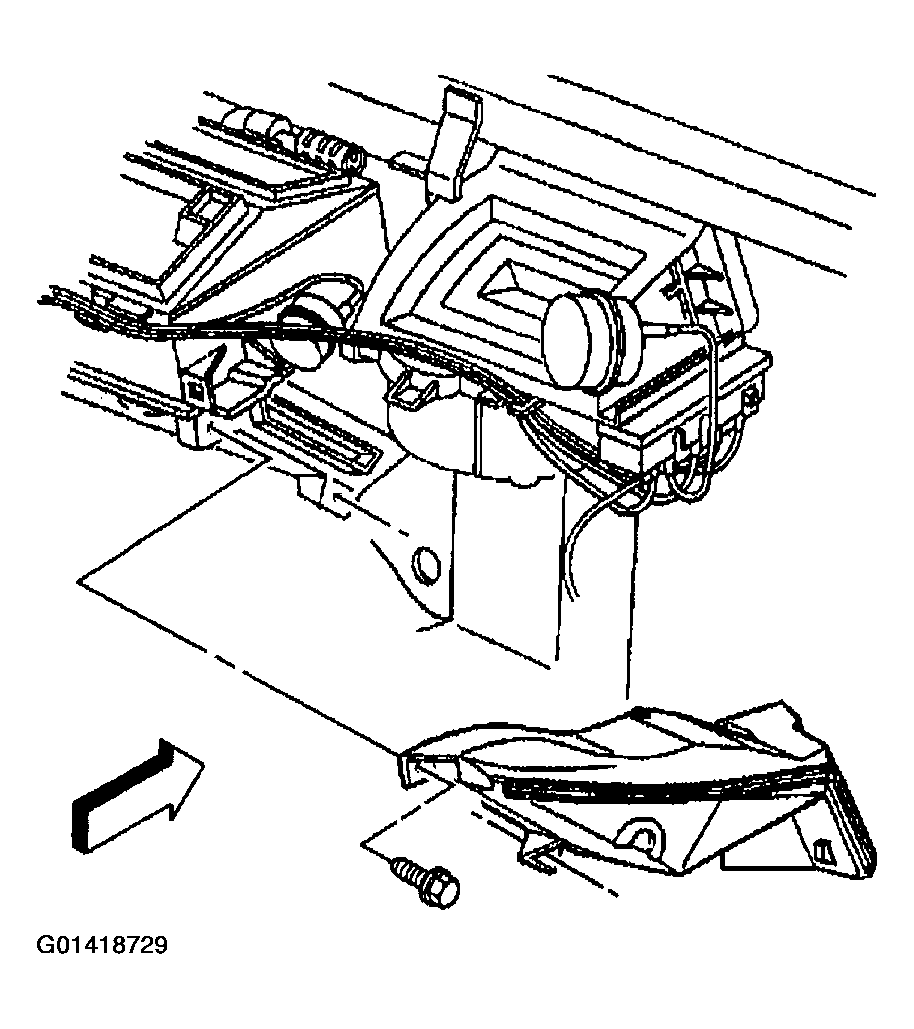

    Fig 2: Removing Floor Duct Upper Half
    G01418729Courtesy of GENERAL MOTORS CORP.
