Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the floor air outlet duct into position.
    NOTE: Refer to FASTENER NOTICE .

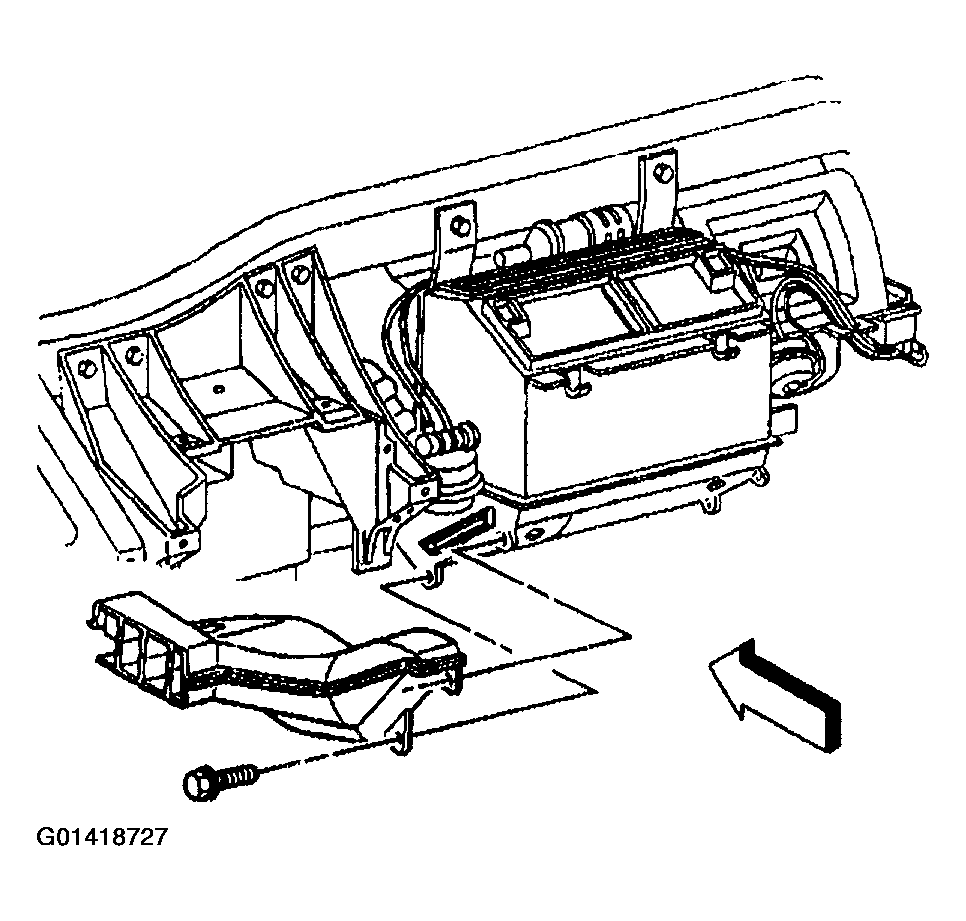

    Fig 1: Installing Floor Air Outlet Duct
    G01418727Courtesy of GENERAL MOTORS CORP.
  2. Install the floor air outlet duct retaining screws.

    Tighten

    Tighten the screws to 1.6 N.m (14 lb in).

  3. Install the left lower closeout/insulator panel. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - LEFT in Instrument Panel, Gages and Console.
