Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the I/P upper trim pad. Refer to TRIM PAD REPLACEMENT - INSTRUMENT PANEL (I/P) UPPER in Instrument Panel, Gages and Console.
  2. Remove the screws retaining the air distribution duct to the underside of the upper trim pad.
  3. Remove the air distribution duct.

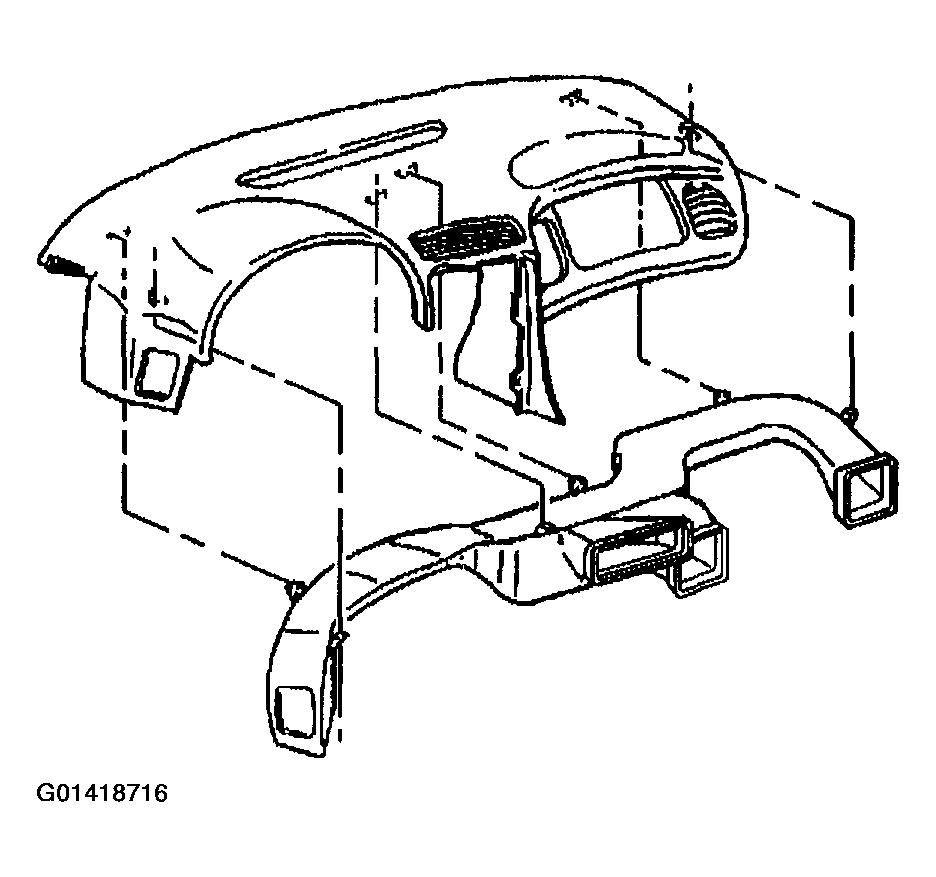

    Fig 1: Removing Air Distribution Duct
    G01418716Courtesy of GENERAL MOTORS CORP.
