Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the refrigerant pressure sensor electrical connector.

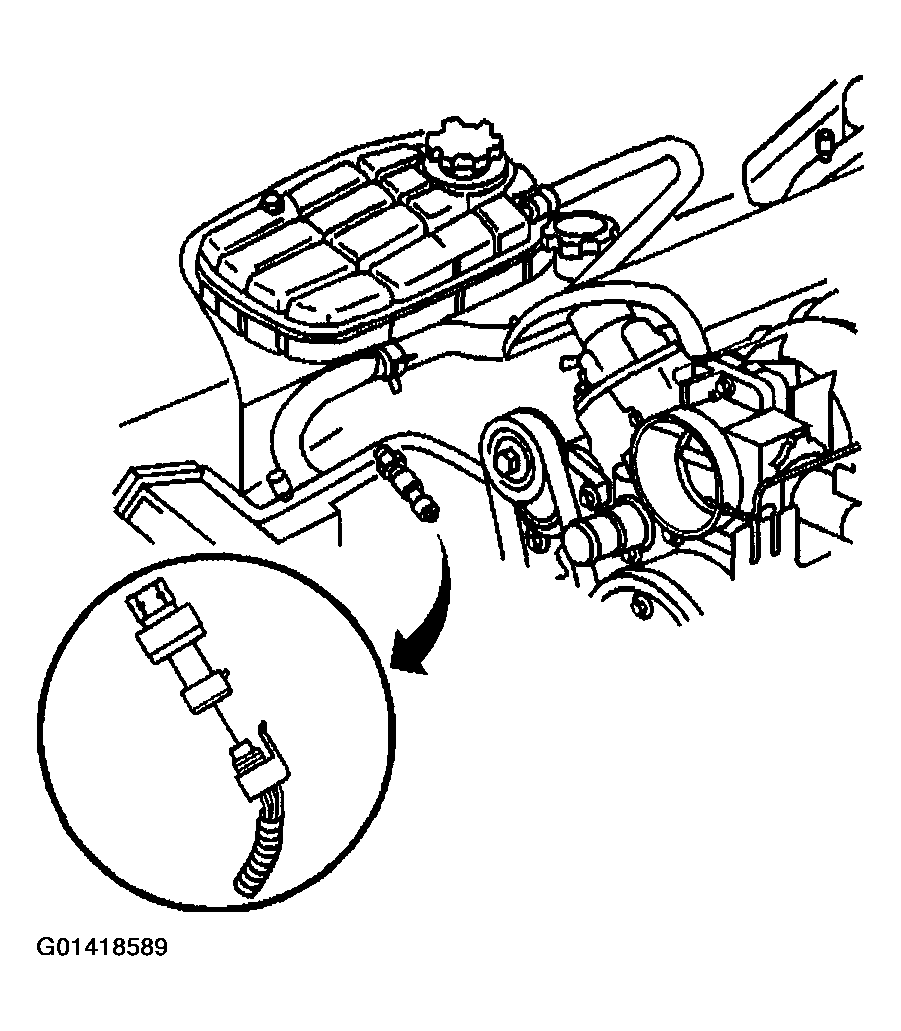

    Fig 1: Disconnecting Refrigerant Pressure Sensor Electrical Connector
    G01418589Courtesy of GENERAL MOTORS CORP.
  2. Remove the pressure sensor (1) from the evaporator tube - front.
  3. Remove and discard the O-ring.

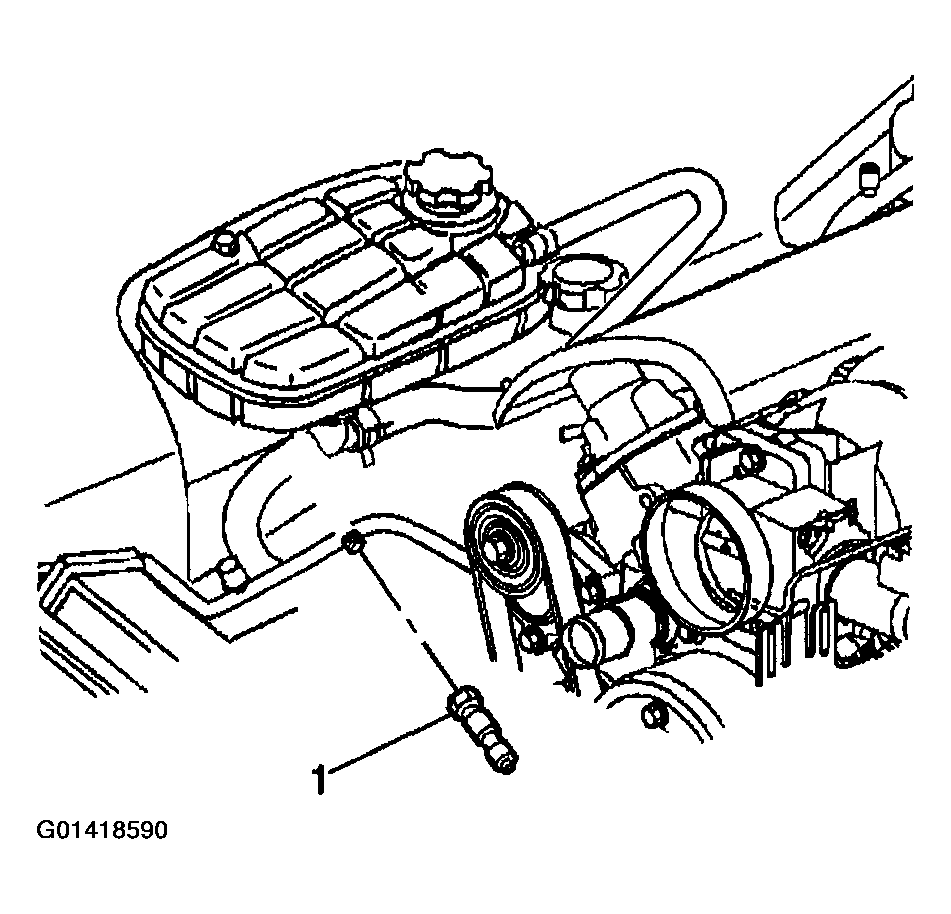

Fig 2: Removing Pressure Sensor From Evaporator Tube
G01418590Courtesy of GENERAL MOTORS CORP.
