Heating Performance Diagnostic

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

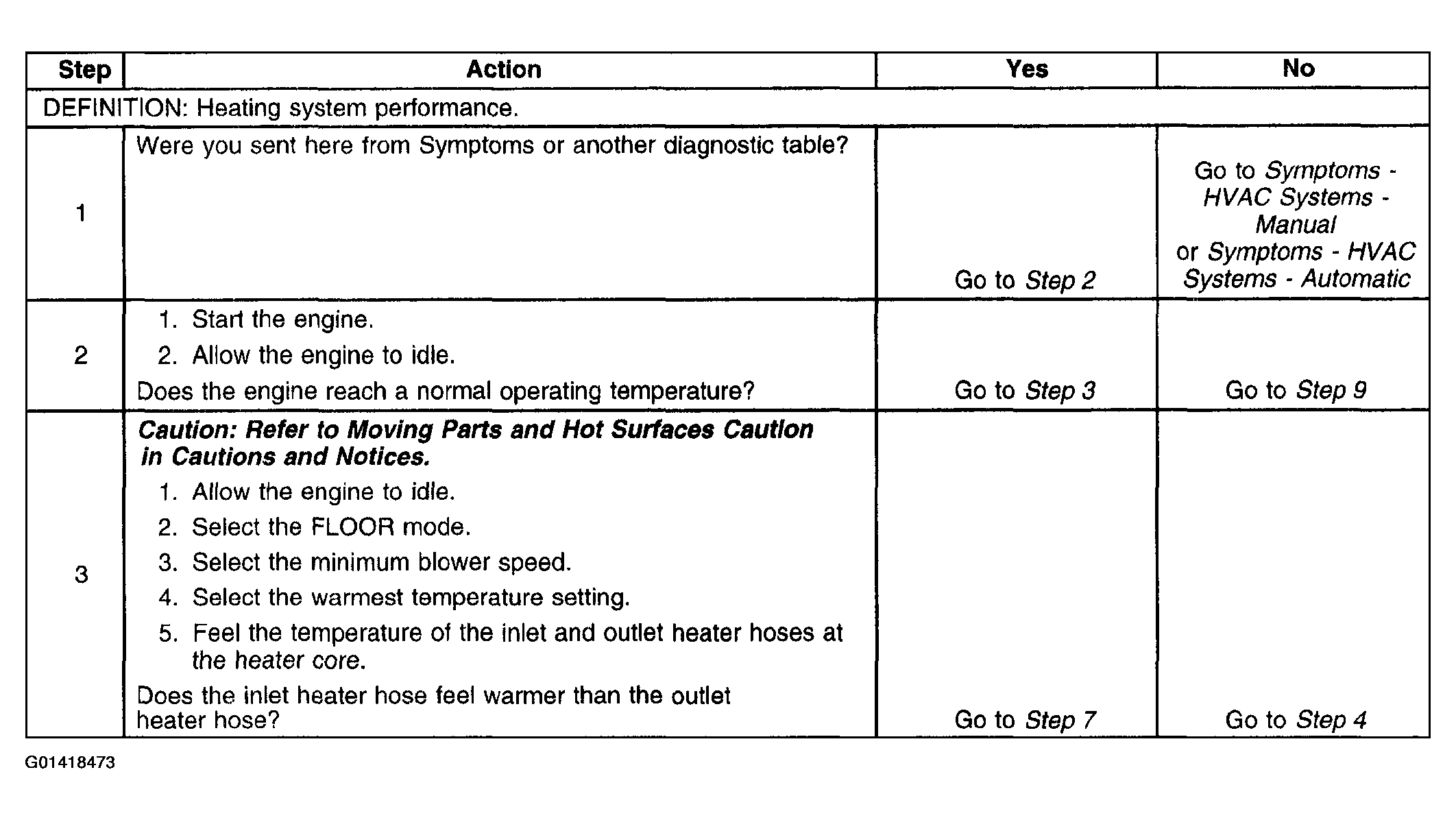

Fig 1: Heating Performance Diagnostic Chart (Step 1-3)
G01418473Courtesy of GENERAL MOTORS CORP.

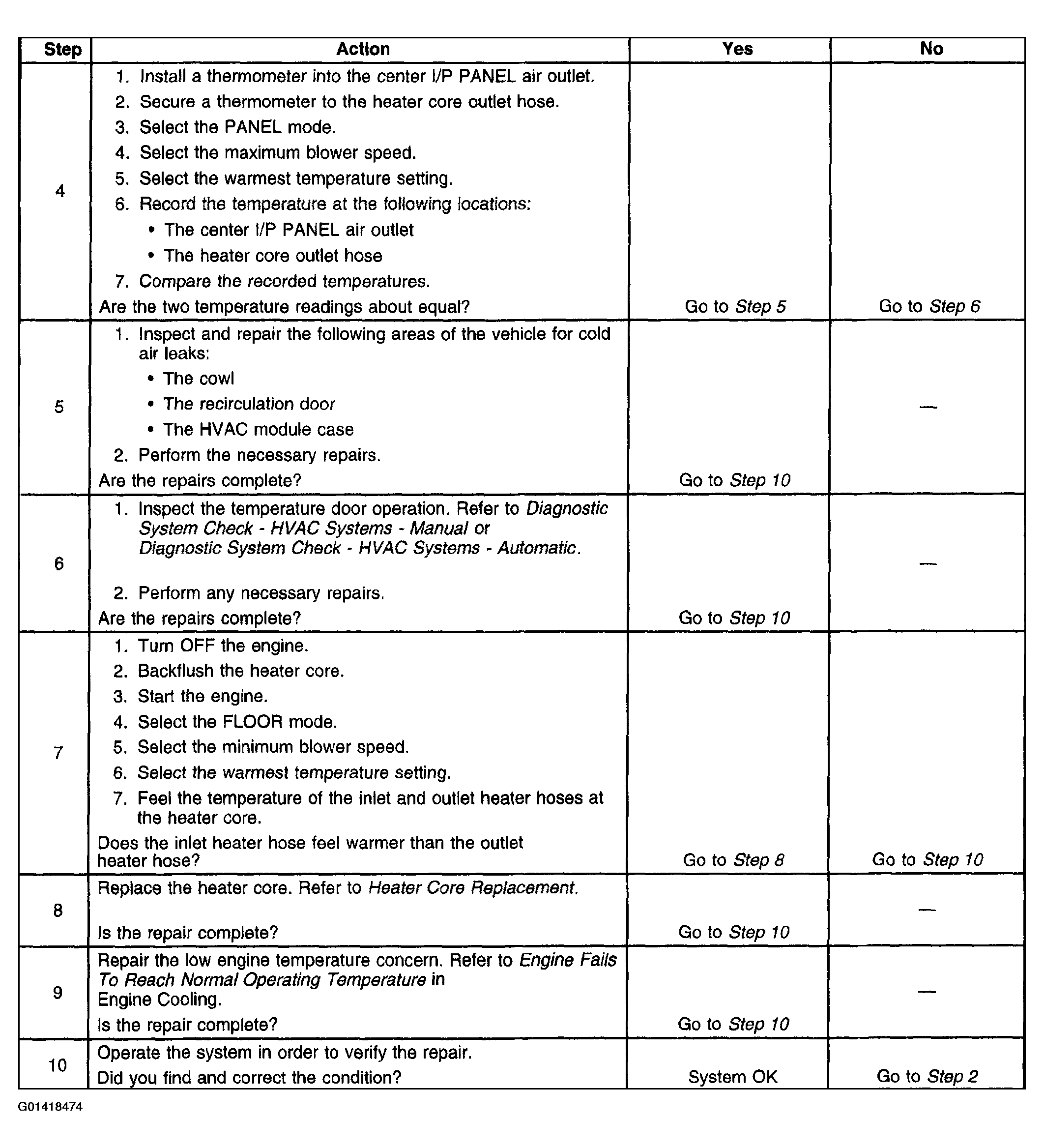

Fig 2: Heating Performance Diagnostic Chart (Step 4-10)
G01418474Courtesy of GENERAL MOTORS CORP.
