DTC P1814 (3.4L): Notes

WARNING: This page is about a different car, the 2004 Pontiac Aztek and 2004 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

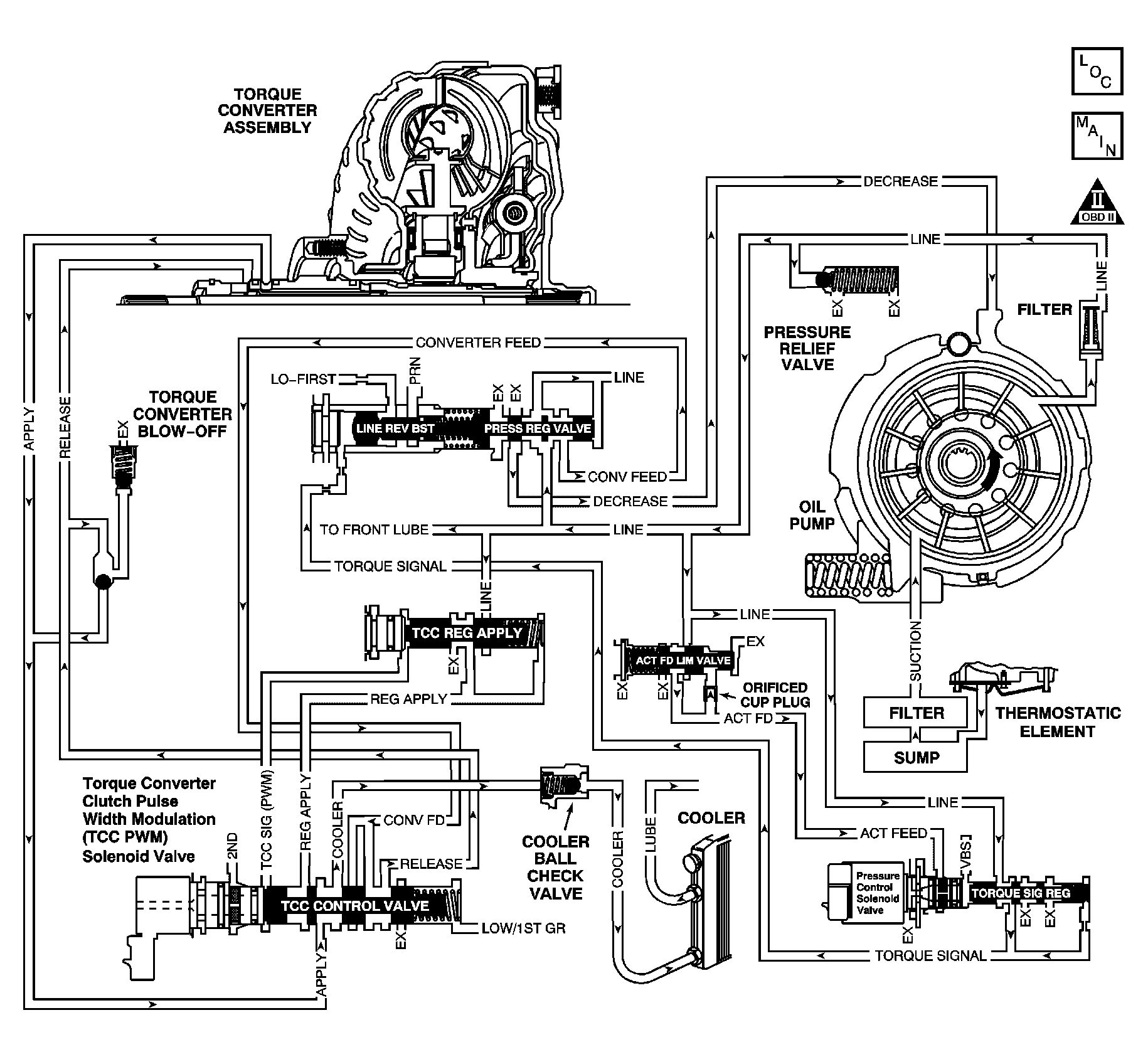

Fig 1: Torque Converter Fluid Diagram
GM954443Courtesy of GENERAL MOTORS CORP.
