Right Side Harness Connections

WARNING: This page is about a different car, the 2004 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Routing Engine Wiring Harness On Top Of Right Camshaft Cover
    GM1414408Courtesy of GENERAL MOTORS CORP.
  1. Connect the engine wiring harness to the top of the right camshaft cover.
    2. Fig 2: Aligning Engine Wiring Harness On Front Of Right Camshaft Cover
    GM1414391Courtesy of GENERAL MOTORS CORP.
  2. Connect the engine wiring harness to the front of the right camshaft cover.
    3. Fig 3: Identifying Right Ignition Coils
    GM1414410Courtesy of GENERAL MOTORS CORP.
  3. Connect the engine wiring harness to the right ignition coils.
    4. Fig 4: Locating Evaporative (EVAP) Solenoid
    GM1414409Courtesy of GENERAL MOTORS CORP.
  4. Connect the engine wiring harness to the evaporative (EVAP) solenoid.
    5. Fig 5: View Of Right Camshaft Position Sensors
    GM1414405Courtesy of GENERAL MOTORS CORP.
  5. Connect the engine wiring harness to the right camshaft position sensors.
    6. Fig 6: Identifying Right Camshaft Position Actuator Valves
    GM1414406Courtesy of GENERAL MOTORS CORP.
  6. Connect the engine wiring harness to the right camshaft position actuator valves.

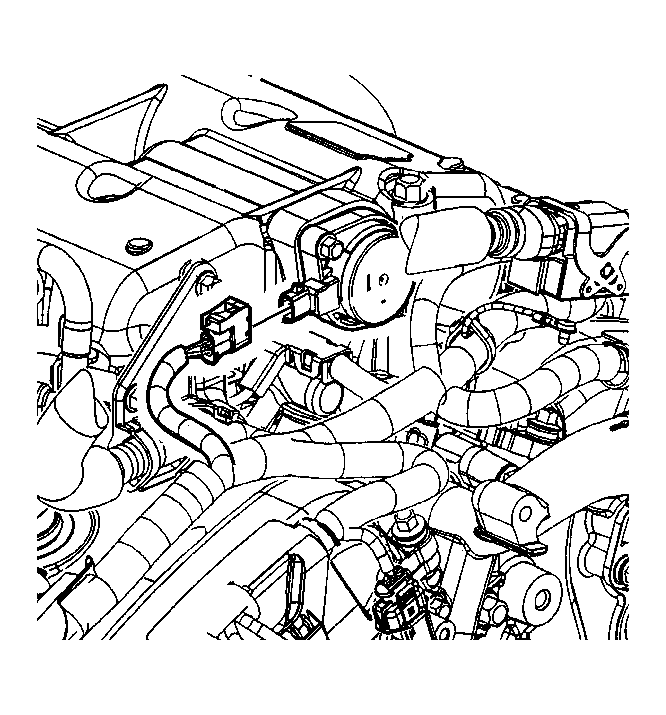

    7. Fig 7: Locating Communicator Valve
    GM1414389Courtesy of GENERAL MOTORS CORP.
  7. Connect the engine wiring harness to the communicator valve.
    8. Fig 8: View Of Engine Wiring Harness Bracket On Lower Right Side Of Engine
    GM1414416Courtesy of GENERAL MOTORS CORP.
  8. Install the engine wiring harness bracket to the lower right side of the engine.
  9. Install the engine wiring harness bracket bolt to the lower right side of the engine.

    Tighten:  Tighten the engine wiring harness bracket bolt to 10 N.m (89 lb in).

    10. Fig 9: Identifying Right Knock Sensor
    GM1414418Courtesy of GENERAL MOTORS CORP.
  10. Connect the engine wiring harness to the right knock sensor.
    11. Fig 10: View Of Crankshaft Position Sensor
    GM1414421Courtesy of GENERAL MOTORS CORP.
  11. Connect the engine wiring harness to the crankshaft position sensor.

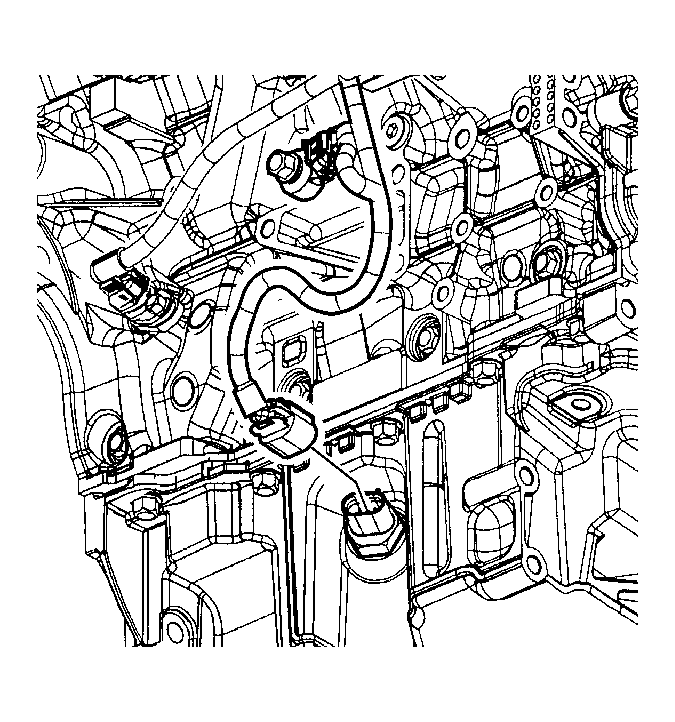

    12. Fig 11: Oil Level Sensor
    GM1414423Courtesy of GENERAL MOTORS CORP.
  12. Connect the engine wiring harness to the oil level sensor.
    13. Fig 12: Identifying Right Exhaust Manifold Lower Heat Shield
    GM1414383Courtesy of GENERAL MOTORS CORP.
  13. Install the right exhaust manifold lower heat shield.
  14. Install the right exhaust manifold lower heat shield bolts.

    Tighten:

    • Tighten the larger M10 right exhaust manifold lower heat shield bolt to 50 N.m (37 lb ft).
    • Tighten the smaller M6 right exhaust manifold lower heat shield bolt to 10 N.m (89 lb in).

    15. Fig 13: Locating Engine Wiring Harness Ground On Side Of Right Cylinder At The Front
    GM1414407Courtesy of GENERAL MOTORS CORP.
  15. Install the engine wiring harness ground to the side of the right cylinder head at the front.
  16. Install the engine wiring harness ground bolt to the side of the right cylinder head at the front.

    Tighten:  Tighten the engine wiring harness ground bolt to 10 N.m (89 lb in).

    17. Fig 14: Identifying Engine Wiring Harness Ground On Side Of Right Cylinder At The Rear
    GM1414415Courtesy of GENERAL MOTORS CORP.
  17. Install the engine wiring harness ground to the side of the right cylinder head at the rear.
  18. Install the engine wiring harness ground bolt to the side of the right cylinder head at the rear.

    Tighten:  Tighten the engine wiring harness ground bolt to 10 N.m (89 lb in).
