Drive Belt Installation

WARNING: This page is about a different car, the 2004 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

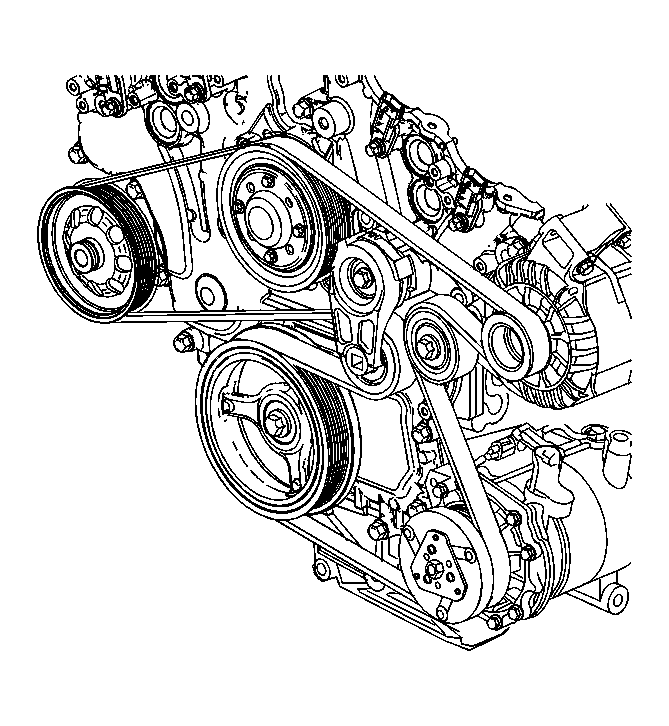

    Fig 1: Identifying Drive Belt Route
    GM1395907Courtesy of GENERAL MOTORS CORP.
  1. Route the drive belt around the following:
    • Crankshaft balancer
    • Air conditioning compressor
    • Drive belt tensioner
    • Power steering pump
    • Water pump pulley
    • Generator
    2. Fig 2: View Of Drive Belt Tensioner & Pulleys
    GM284263Courtesy of GENERAL MOTORS CORP.
  2. Insert a 1/2 inch drive ratchet into the drive belt tensioner.
  3. Rotate the drive belt tensioner clockwise.
  4. Route the remainder of the drive belt around the drive belt idler pulley.
  5. Slowly rotate the drive belt tensioner counterclockwise until the drive belt is tight.
  6. Remove the 1/2 inch drive ratchet.
  7. Inspect the drive belt for proper seating in all pulleys.
