Installation Procedure

WARNING: This page is about a different car, the 2004 Pontiac Aztek and 2004 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

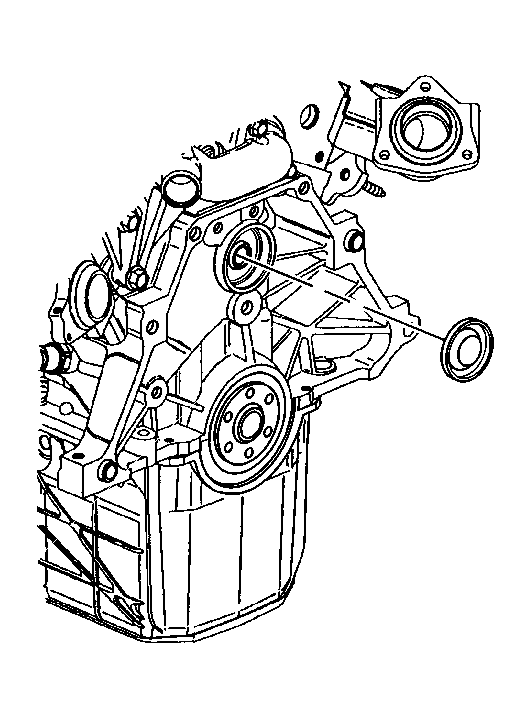

    Fig 1: View Of Camshaft Rear Bearing Hole Plug
    GM105921Courtesy of GENERAL MOTORS CORP.
  1. Coat the camshaft rear bearing hole plug with sealer. Use sealer GM P/N 12345493 or equivalent.
  2. Use an impact wrench socket and a hammer in order to install the camshaft rear bearing hole plug.
    3. Fig 2: Illustrating Proper Camshaft Rear Bearing Plug Specifications
    GM105922Courtesy of GENERAL MOTORS CORP.
  3. Ensure that the camshaft rear bearing plug is installed to specifications.
  4. Install the engine flywheel. Refer to Engine Flywheel Replacement .
