Installation Procedure

WARNING: This page is about a different car, the 2004 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

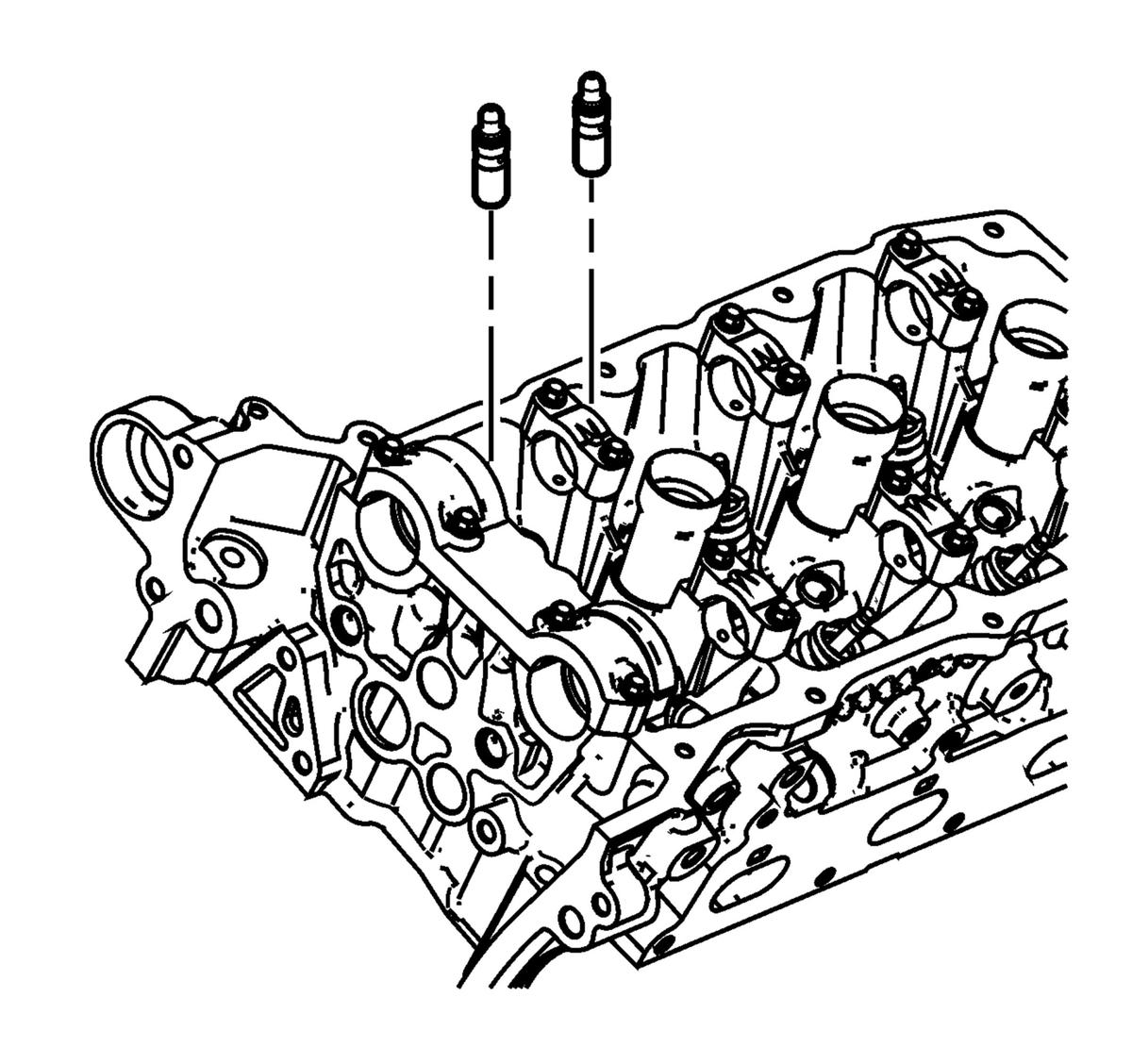

    Fig 1: View Of SHLAs
    GM902901Courtesy of GENERAL MOTORS CORP.
  1. Install the lifters. Refer to Valve Lifter Installation - Right .
  2. Install the rocker arms. Refer to Valve Rocker Arm Installation - Right .
  3. Install the applicable camshaft(s). Refer to Camshaft Replacement - Right .
