Installation Procedure

WARNING: This page is about a different car, the 2004 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install a NEW camshaft cover seal and NEW grommets.
    2. Fig 1: Removing & Installing Left Camshaft Cover
    GM902871Courtesy of GENERAL MOTORS CORP.
  2. Install the camshaft cover. Refer to Camshaft Cover Installation - Left .
    3. NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Tighten the left engine strut bracket-to-cylinder head bolts.

    Tighten:  Tighten the left engine strut bracket-to-cylinder head bolts to 50 N.m (37 lb ft).

    4. Fig 2: Identifying Left Cylinder Head Ignition Coils
    GM868186Courtesy of GENERAL MOTORS CORP.
  4. Install the ignition coils.

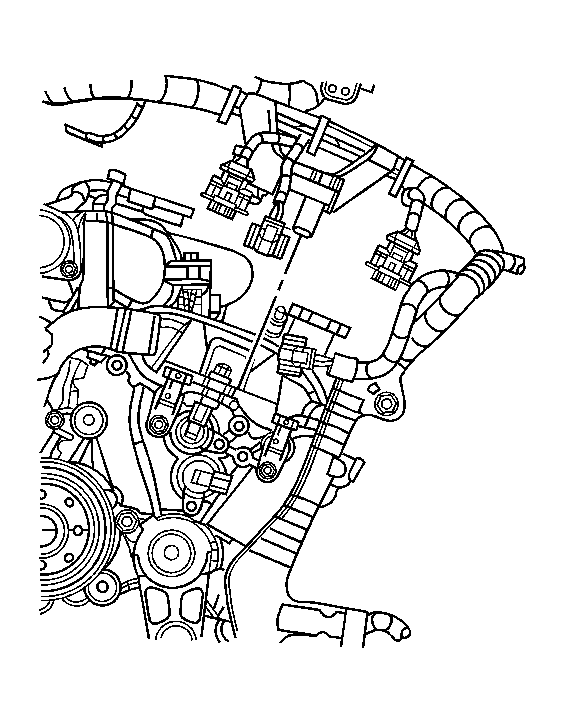

    5. Fig 3: Locating Wiring Harness In Front Of Camshaft Cover
    GM1394020Courtesy of GENERAL MOTORS CORP.
  5. Install the wiring harness to the front of the camshaft cover.
  6. Install the wiring harness conduit retainers to the wiring harness conduit.

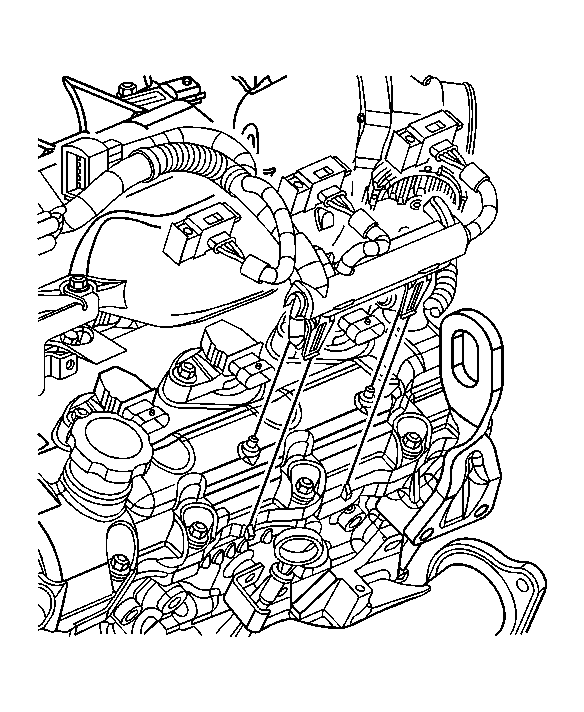

    7. Fig 4: Locating Wiring Conduit Retainers
    GM1394076Courtesy of GENERAL MOTORS CORP.
  7. Install the wiring harness to the side of the camshaft cover.
    8. Fig 5: Identifying Ignition Coil Electrical Connectors
    GM1394057Courtesy of GENERAL MOTORS CORP.
  8. Connect the ignition coil electrical connectors.
  9. Install the upper intake manifold with the lower intake manifold. Refer to Intake Manifold Replacement - Lower .
