Installation Procedure

WARNING: This page is about a different car, the 2004 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Fuel Pipe Retainers With The Fuel Pipes

Courtesy of GENERAL MOTORS CORP.

Install the EVAP purge pipe from the vehicle.
Install the EVAP purge pipe to the retainers.

Fig 2: View Of Fuel Evaporative Emission (EVAP) Pipes

Courtesy of GENERAL MOTORS CORP.

Connect the chassis EVAP purge pipe to the fuel tank.
Lower the vehicle.

Fig 3: Locating EVAP Purge Hose At EVAP Purge Valve

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the EVAP purge hose to the EVAP purge valve and the intake manifold.
Tighten: Tighten the EVAP purge hose bracket bolt to 10 N.m (89 lb in).

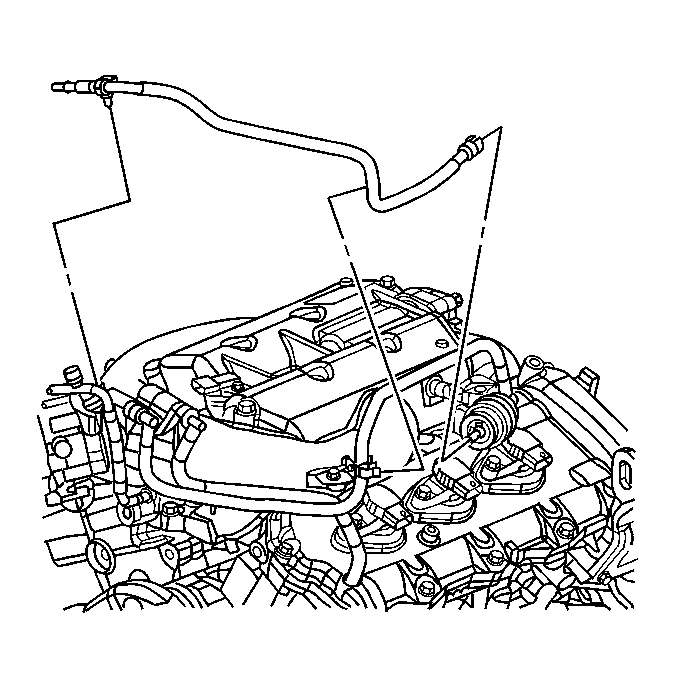

Fig 4: View Of EVAP Purge Pipe At Intake Manifold

Courtesy of GENERAL MOTORS CORP.

Install the EVAP purge pipe to the intake manifold.

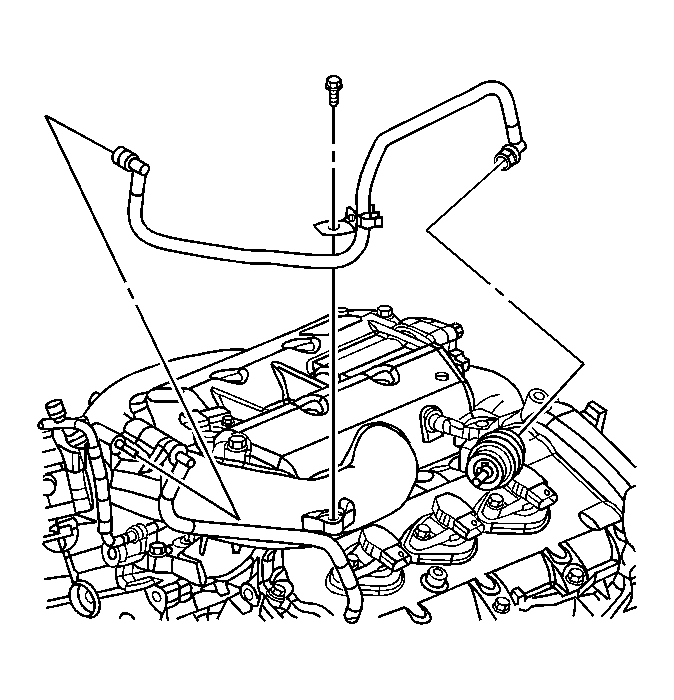

Fig 5: Identifying Purge Line & Purge Line Retainer

Courtesy of GENERAL MOTORS CORP.

Install the EVAP purge hose to the retainer.

Fig 6: View Of Purge Line From The Purge Valve Solenoid

Courtesy of GENERAL MOTORS CORP.

Connect the EVAP hose to the purge line near the throttle body. Refer to Quick Connect Fitting(s) Service (Plastic Collar) .
