Glow Plug Controller and Glow Plugs Installation

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the glow plugs to the right cylinder bank.
Tighten: Tighten the glow plugs to 18 N.m (13 lb ft).
Install the glow plug harness to the right cylinder bank (1 California, 2 Federal).

Fig 1: View Of Right Bank Glow Plug Harnesses (California & Federal Emissions)

Courtesy of GENERAL MOTORS CORP.

Install the glow plug power feed wire to the right cylinder bank.
Install the glow plug harness nuts to the right cylinder bank.
Tighten: Tighten the glow plug harness nuts to 2 N.m (18 lb in).

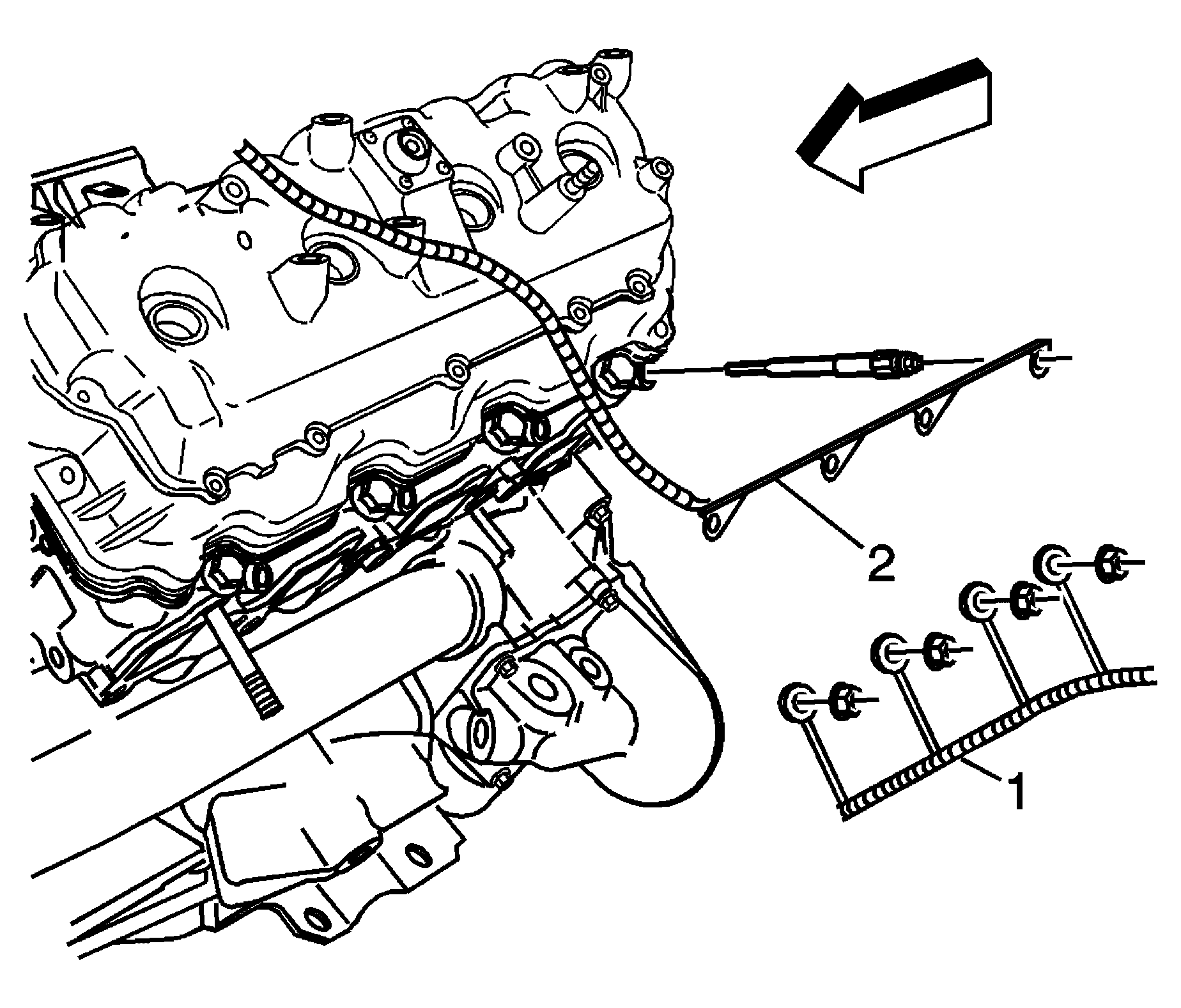

Fig 2: View Of Left Bank Glow Plug Harnesses (California & Federal Emissions)

Courtesy of GENERAL MOTORS CORP.

Install the glow plugs to the left cylinder bank.
Tighten: Tighten the glow plugs to 18 N.m (13 lb ft).
Install the glow plug harness to the left cylinder bank (1 California, 2 Federal).
Install the glow plug controller.
Install the glow plug controller nuts.
Tighten: Tighten the glow plug controller nuts to 25 N.m (18 lb ft).

Fig 3: View Of Glow Plug Controller

Courtesy of GENERAL MOTORS CORP.

Install the glow plug power feed wire to the left cylinder bank.
Install the glow plug harness nuts to the left cylinder bank.
Tighten: Tighten the glow plug harness nuts to 2 N.m (18 lb in).
Install the glow plug harness bracket bolt.
Tighten: Tighten the glow plug harness bracket bolt to 21 N.m (15 lb ft).
Install the intake air heater connector.

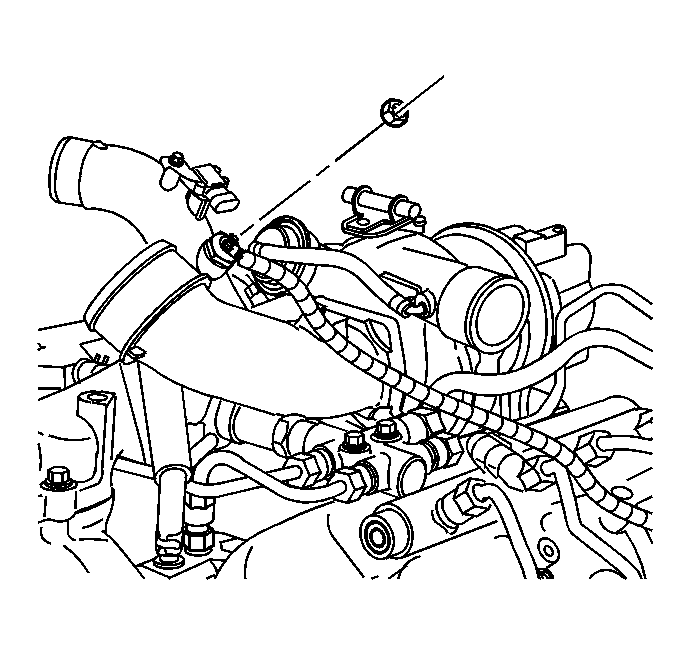

Fig 4: View Of Intake Air Heater Connector
