Water Pump Removal

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the engine coolant pipe to water pump nuts.

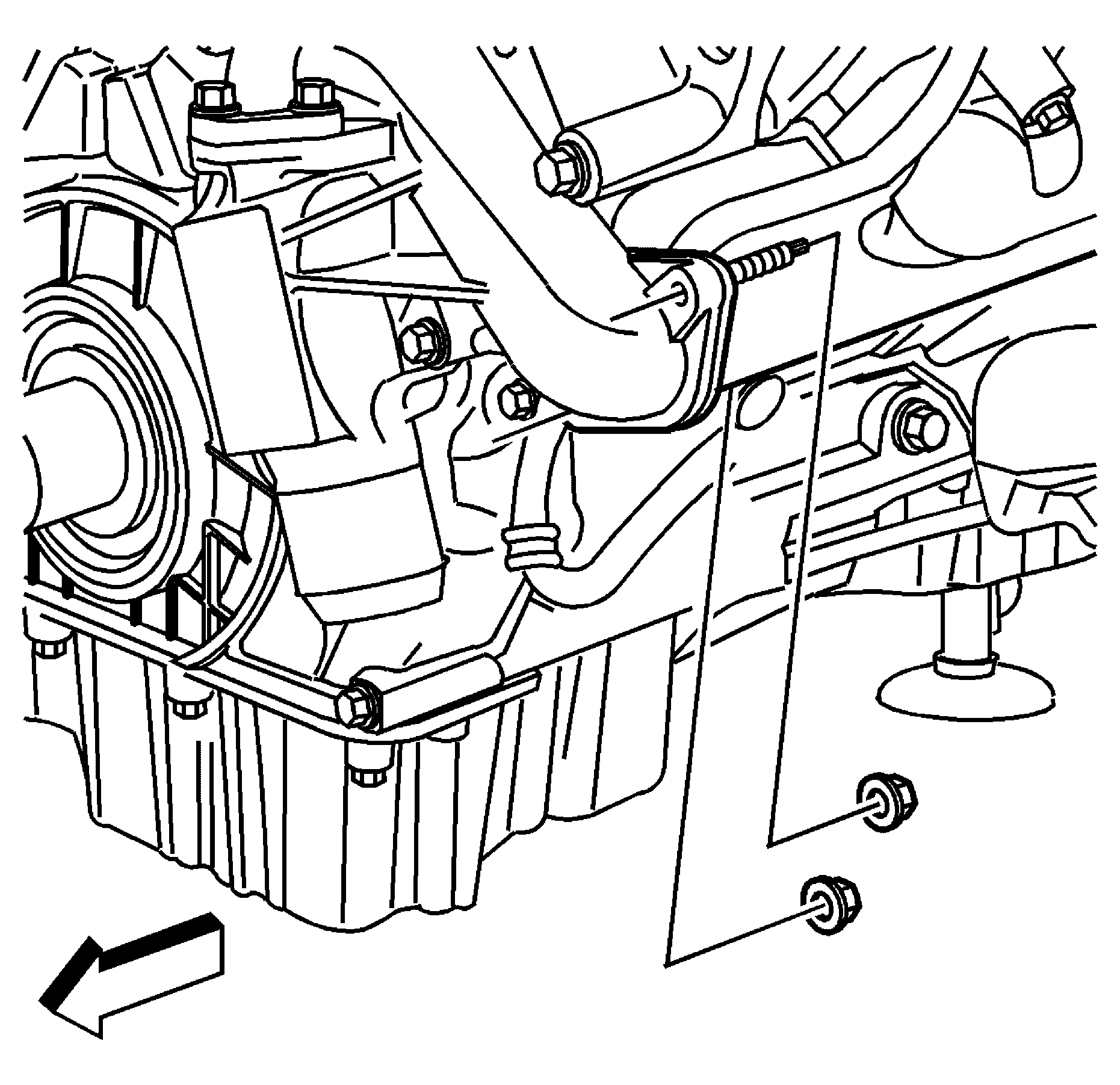

    2. Fig 1: View of Engine Coolant Pipe To Water Pump Nuts
    GM881730Courtesy of GENERAL MOTORS CORP.
  2. Remove the water pump bolts.
  3. Remove the water pump assembly.
  4. Remove the water pump seal and discard.

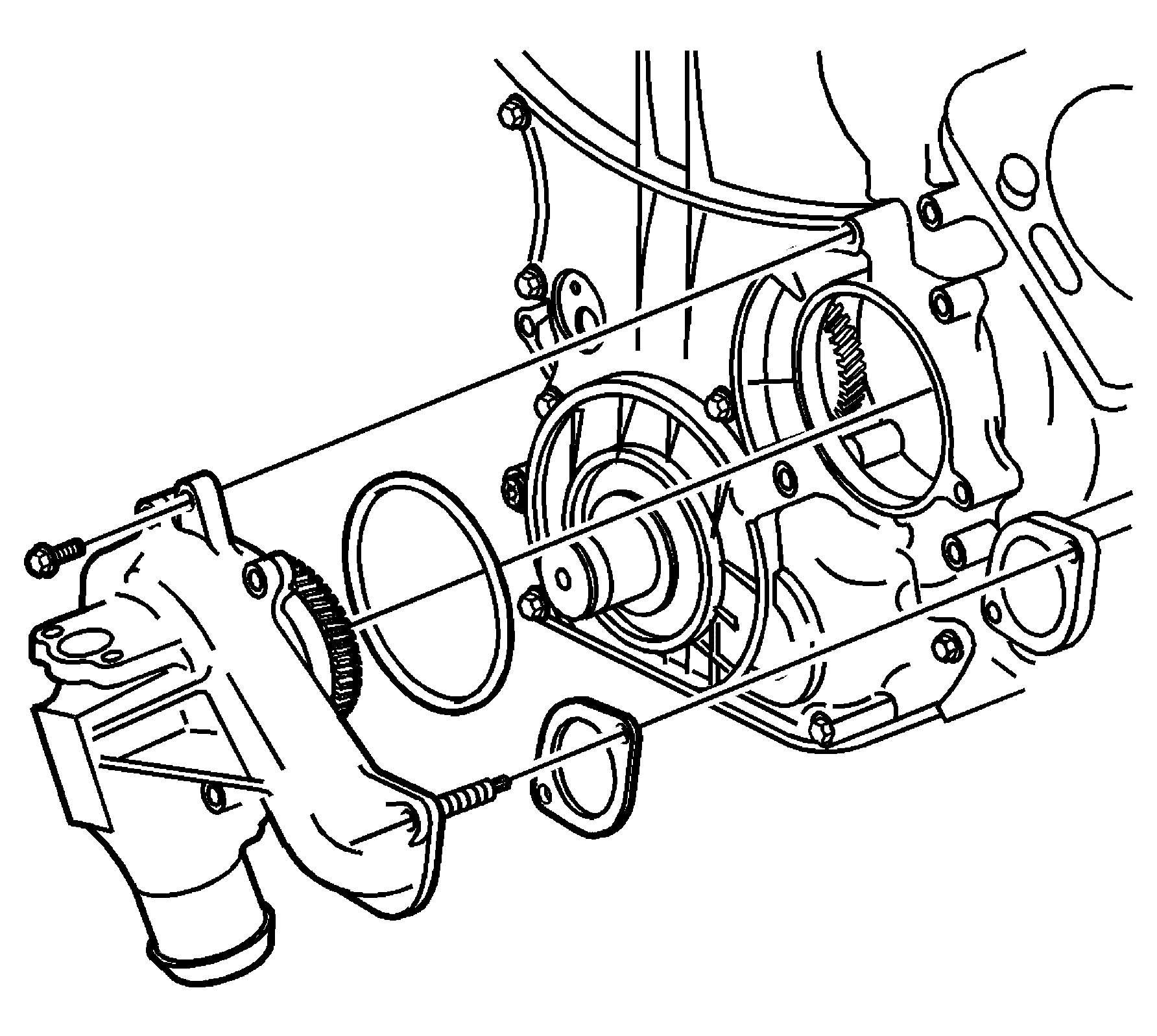

    5. Fig 2: View Of Water Pump Assembly & Seal
    GM881731Courtesy of GENERAL MOTORS CORP.
  5. Remove the engine coolant pipe gasket and discard.
