Fuel Injectors Removal

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Tools Required

J 44639 Injector Removal Tool

Remove the fuel injector return pipe eye bolts and gaskets.
Remove the fuel injector return pipe assembly.

Fig 1: View Of Fuel Injector Return Pipe Assembly

Courtesy of GENERAL MOTORS CORP.

Remove the fuel injector bracket bolts.

Fig 2: View Of Fuel Injector Bracket Bolts

Courtesy of GENERAL MOTORS CORP.

Install the J 44639 to the fuel injector brackets.
Pull back on the J 44639 in one steady motion, until the fuel injector breaks free from its seat.

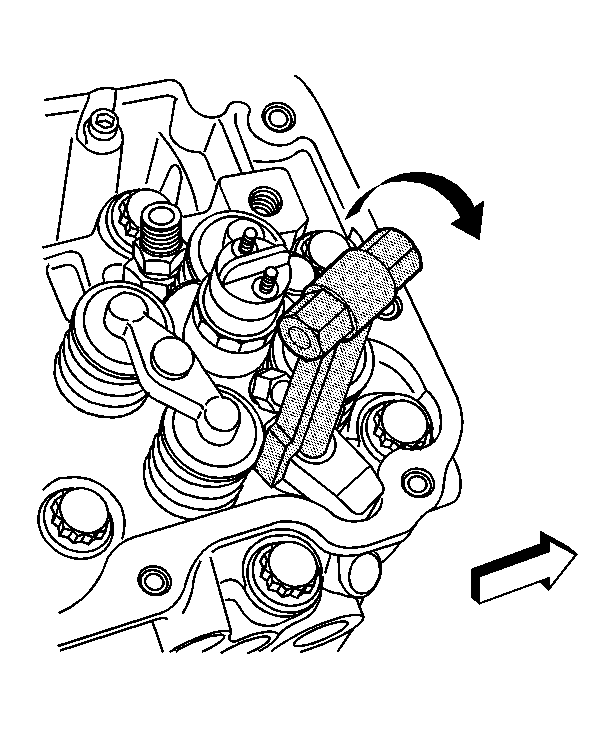

Fig 3: Breaking Fuel Injector Free Using J 44639

Courtesy of GENERAL MOTORS CORP.

Remove the J 44639 .
Remove the fuel injectors with the fuel injector brackets.

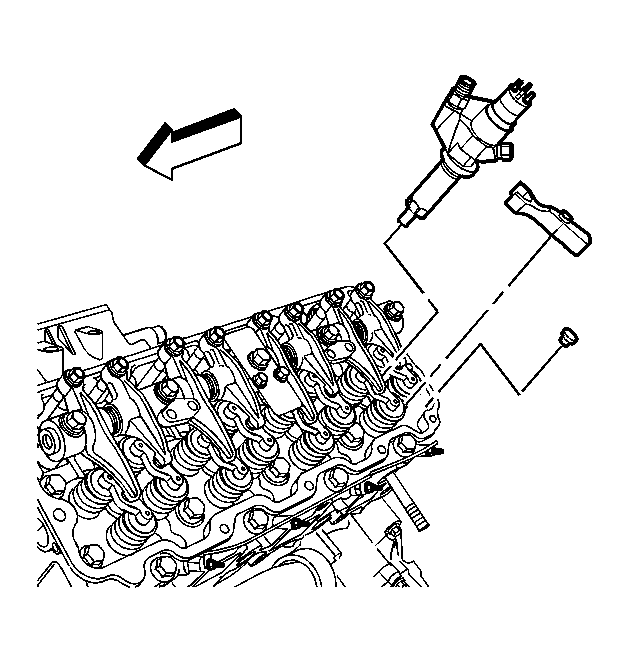

Fig 4: View Of Fuel Injectors & Bracket

Courtesy of GENERAL MOTORS CORP.

Remove the injector bracket pins.
Remove the copper washer from the injector bore and discard.
Remove the O-ring from the injector and discard.
