Exhaust Pipe Removal - Right

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Remove the exhaust pipe bolts-Federal Emissions in the proper sequence.

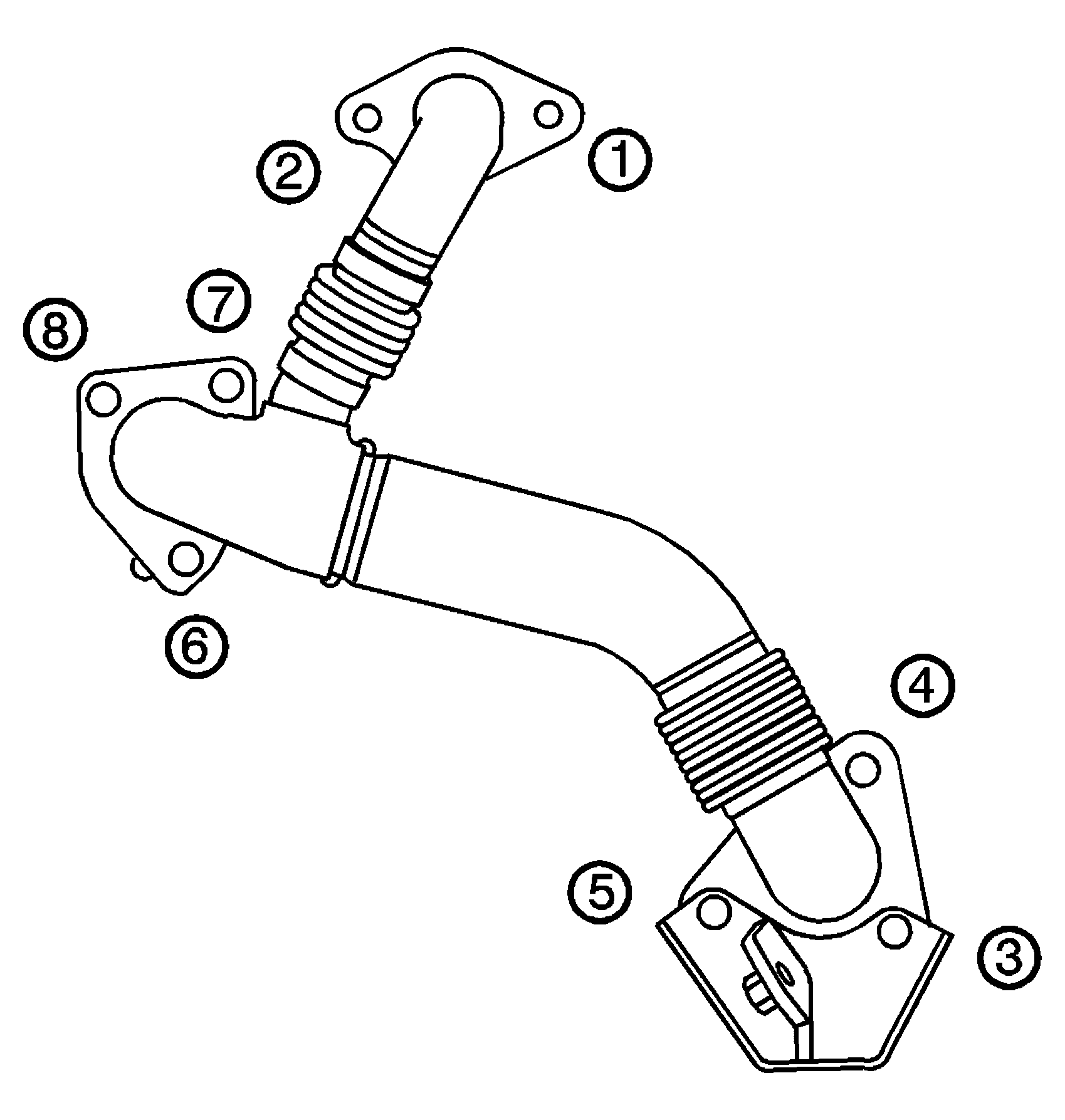

Fig 1: Right Exhaust Pipe Bolts Removal Procedure (Federal Emissions)

Courtesy of GENERAL MOTORS CORP.

Remove the exhaust pipe bolts-California Emissions in the proper sequence.

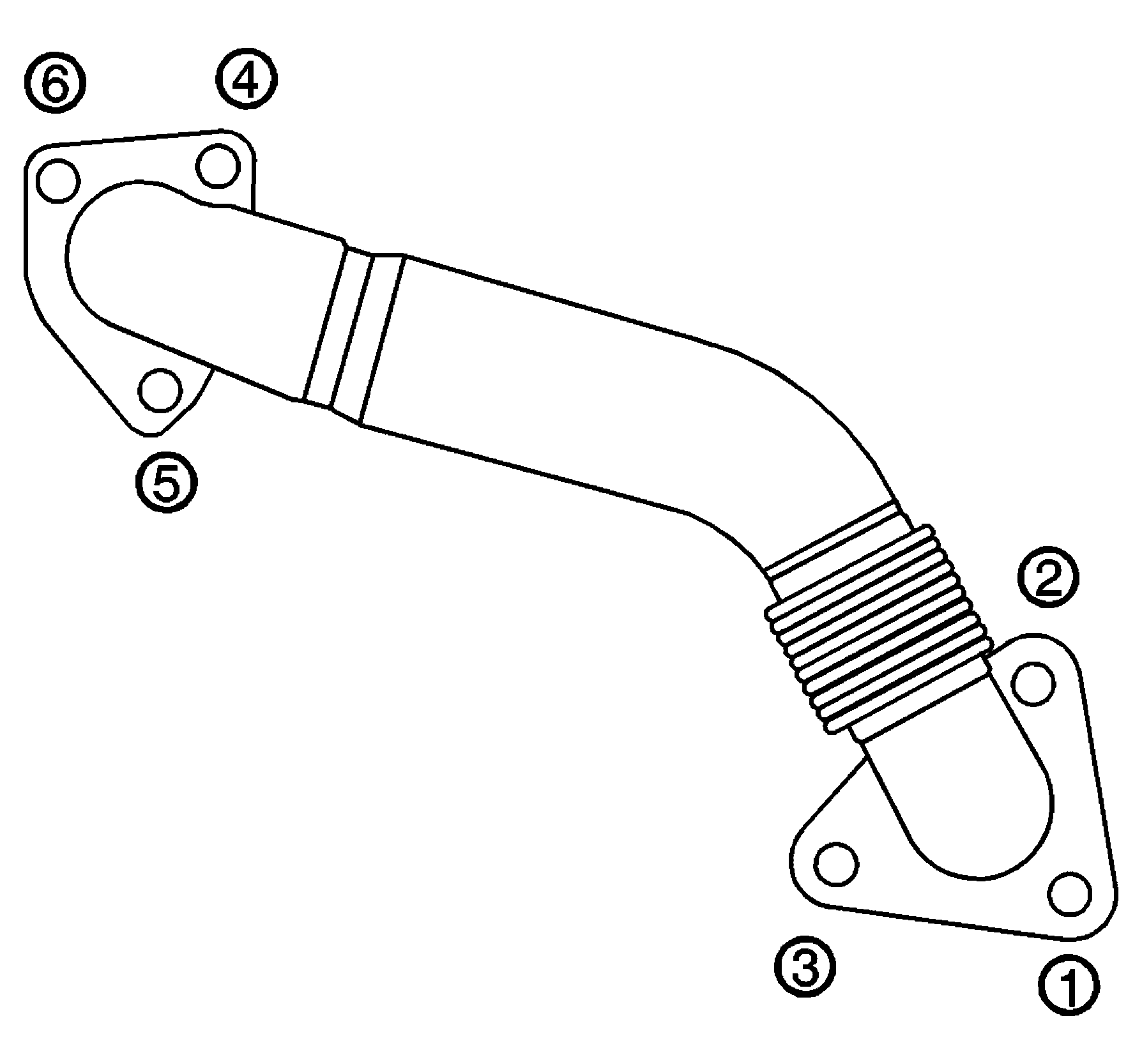

Fig 2: Right Exhaust Pipe Bolts Removal Procedure (California Emissions)

Courtesy of GENERAL MOTORS CORP.

Remove the exhaust pipe, exhaust outlet bracket and gaskets-Federal Emissions.

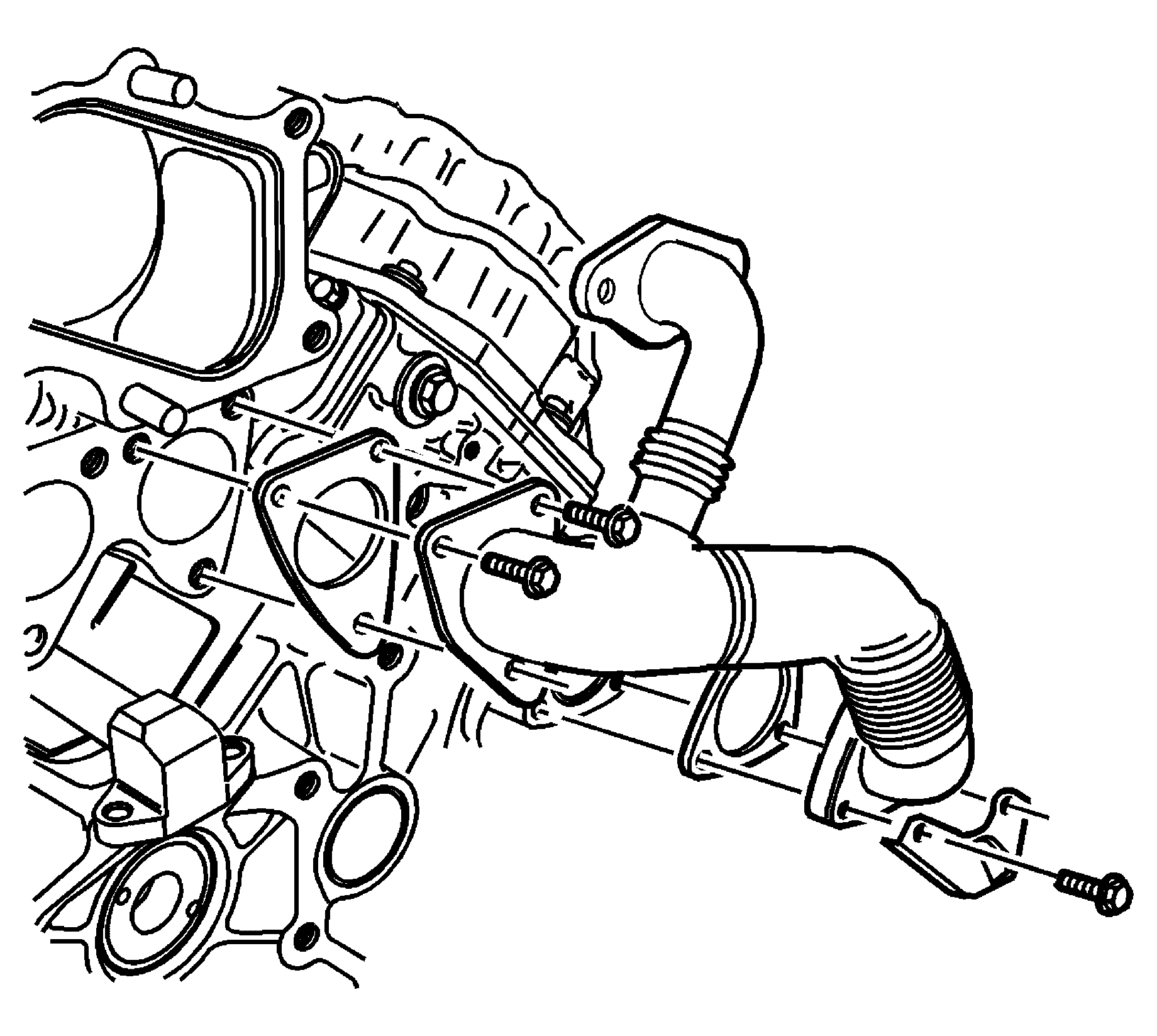

Fig 3: View Of Right Exhaust Pipe, Exhaust Outlet Bracket & Gaskets (Federal Emissions)

Courtesy of GENERAL MOTORS CORP.

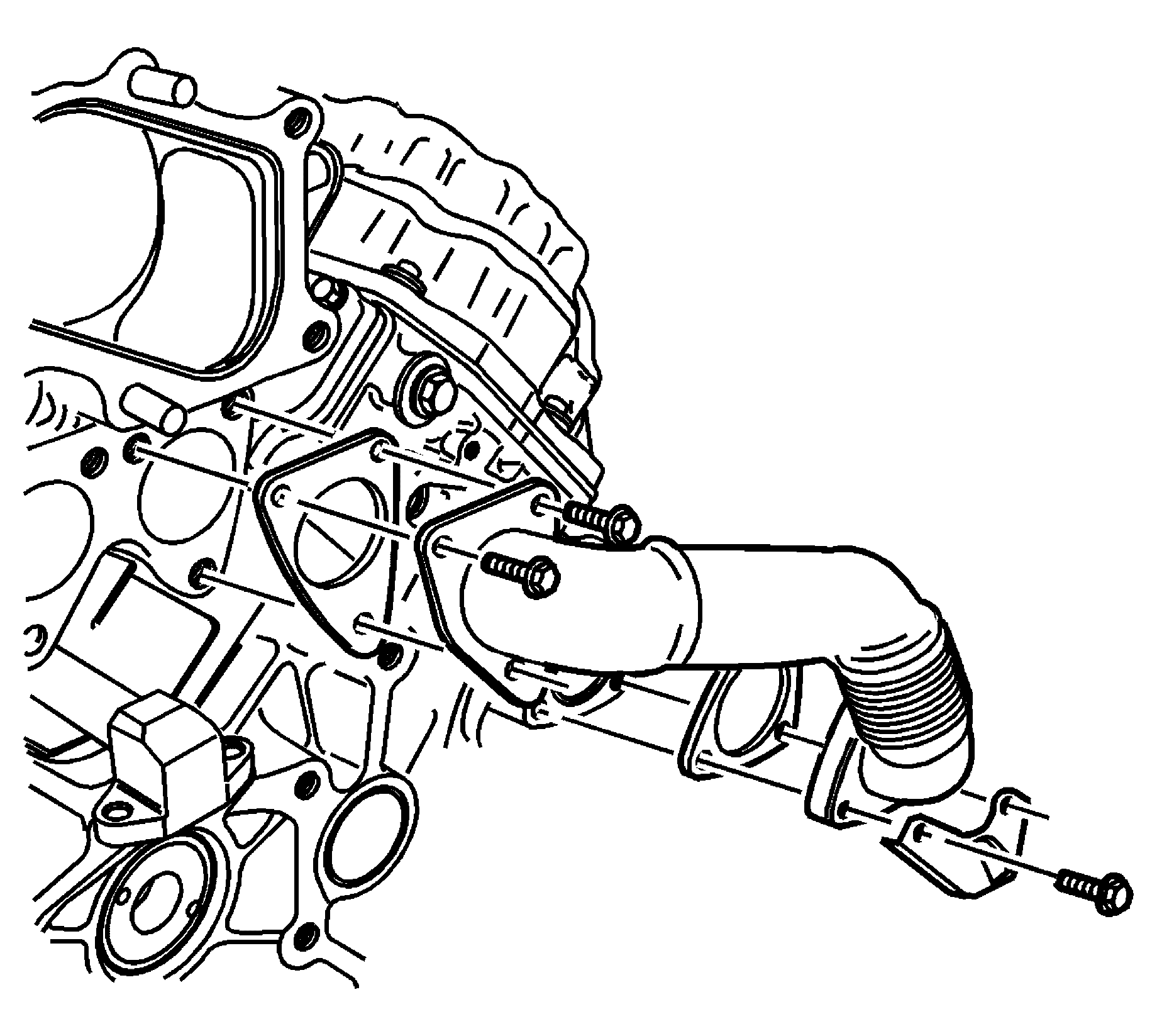

Fig 4: View Of Right Exhaust Pipe, Exhaust Outlet Bracket & Gaskets (California Emissions)

Courtesy of GENERAL MOTORS CORP.

Remove the exhaust pipe, exhaust outlet bracket and gaskets-California Emissions.
