Exhaust Pipe Removal - Left

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the left exhaust pipe heat shield bolts.
  2. Remove the left exhaust pipe heat shield.
    3. Fig 1: View Of Left Exhaust Pipe Heat Shield & Bolts
    GM660364Courtesy of GENERAL MOTORS CORP.
  3. Remove the exhaust pipe bolts in the proper sequence.
    4. Fig 2: Left Exhaust Pipe Bolts Removal Sequence
    GM721427Courtesy of GENERAL MOTORS CORP.

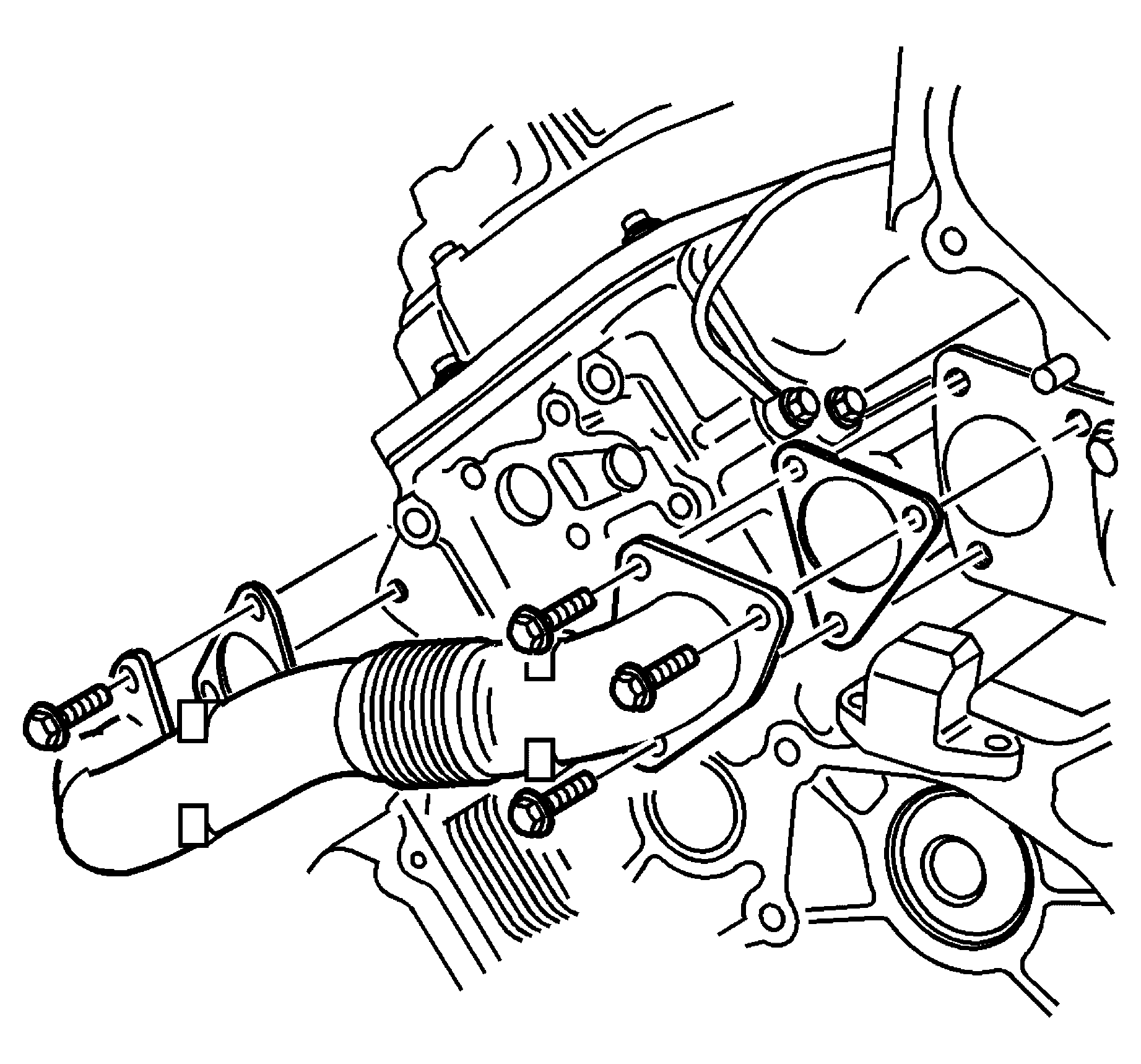

    Fig 3: View Of Left Exhaust Pipe & Gasket
    GM660365Courtesy of GENERAL MOTORS CORP.
  4. Remove the exhaust pipe and gaskets.
