Exhaust Manifold Removal - Left

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Remove the exhaust manifold heat shield bolts.
Remove the exhaust manifold heat shield.

Fig 1: View Of Left Exhaust Manifold Heat Shield

Courtesy of GENERAL MOTORS CORP.

Remove the left exhaust manifold bolts and nuts in the proper sequence.

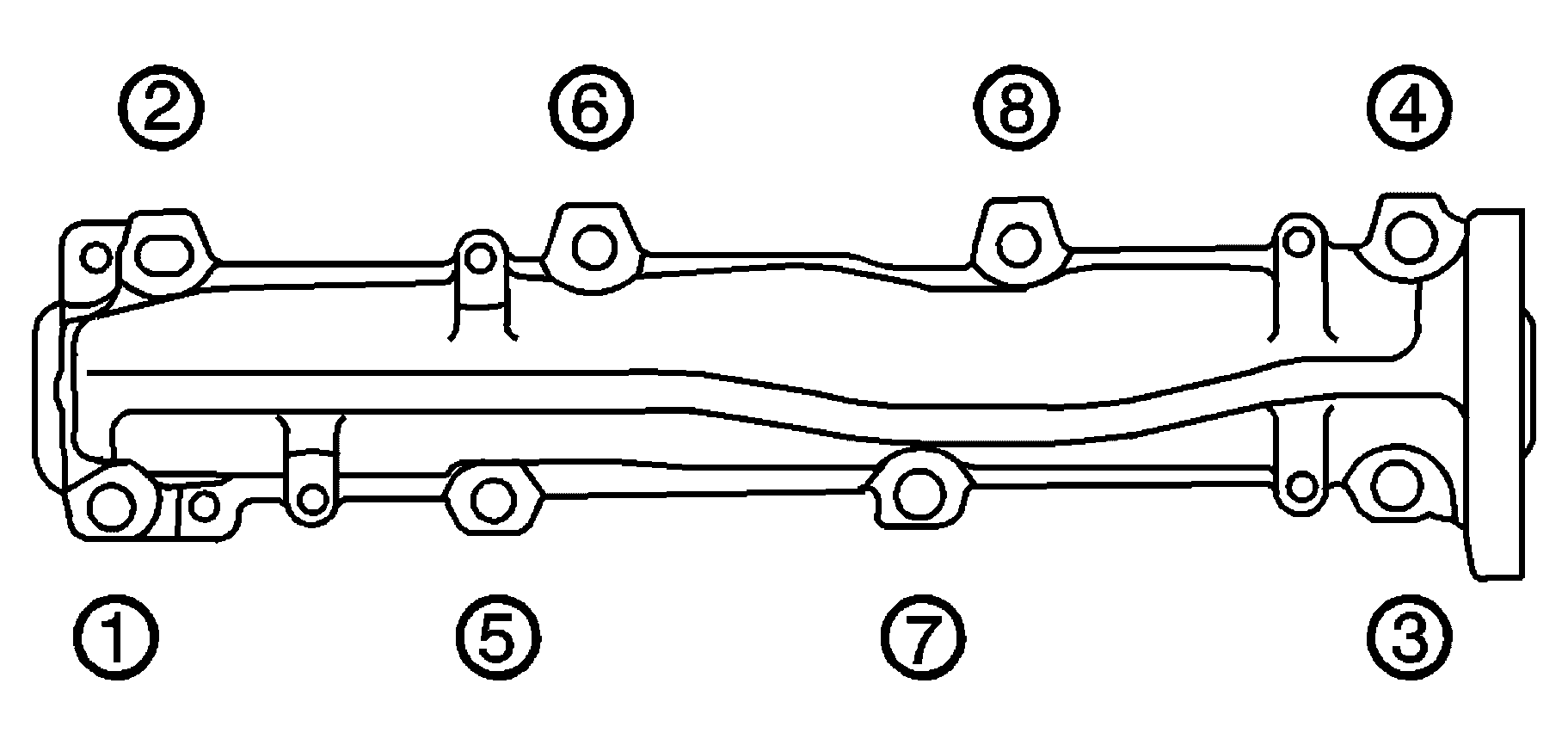

Fig 2: Left Exhaust Manifold Bolts & Nuts Removal Sequence

Courtesy of GENERAL MOTORS CORP.

Remove the left exhaust manifold and gasket.

Fig 3: View Of Left Exhaust Manifold & Gasket

Courtesy of GENERAL MOTORS CORP.
