Drive Belt Tensioner and Generator Mounting Bracket Removal

Tools Required

J 25034-C  Pulley Remover

1. Remove the crankcase ventilation hoses from the valve rocker arm covers.
Fig 1: View Of Crankcase Ventilation Hoses At Valve Rocker Arm Covers
Courtesy of GENERAL MOTORS CORP.
2. Disconnect the crankcase vent hose from the engine block.
Fig 2: View Of Crankcase Vent Hose At Engine Block
Courtesy of GENERAL MOTORS CORP.
3. Remove the fuel injection control module harness bracket nuts (1).
4. Remove the fuel injection control module harness bracket (2).
5. Remove the schrader valve (3).
6. Remove the schrader valve bracket (4).
Fig 3: View Of Fuel Injection Control Module Harness
Courtesy of GENERAL MOTORS CORP.
7. Remove the right idler pulley retaining bolt.
8. Remove the right idler pulley.
9. Remove the left idler pulley bolt.
10. Remove the left idler pulley.
11. Remove the tensioner pulley bolt.
12. Remove the tensioner pulley.
Fig 4: View Of Right, Left & Tensioner Pulleys & Bolts
Courtesy of GENERAL MOTORS CORP.
NOTE: Refer to Fastener Notice in Cautions and Notices.
13. Remove the vacuum pump pulley using J 25034-C  - California Emissions.

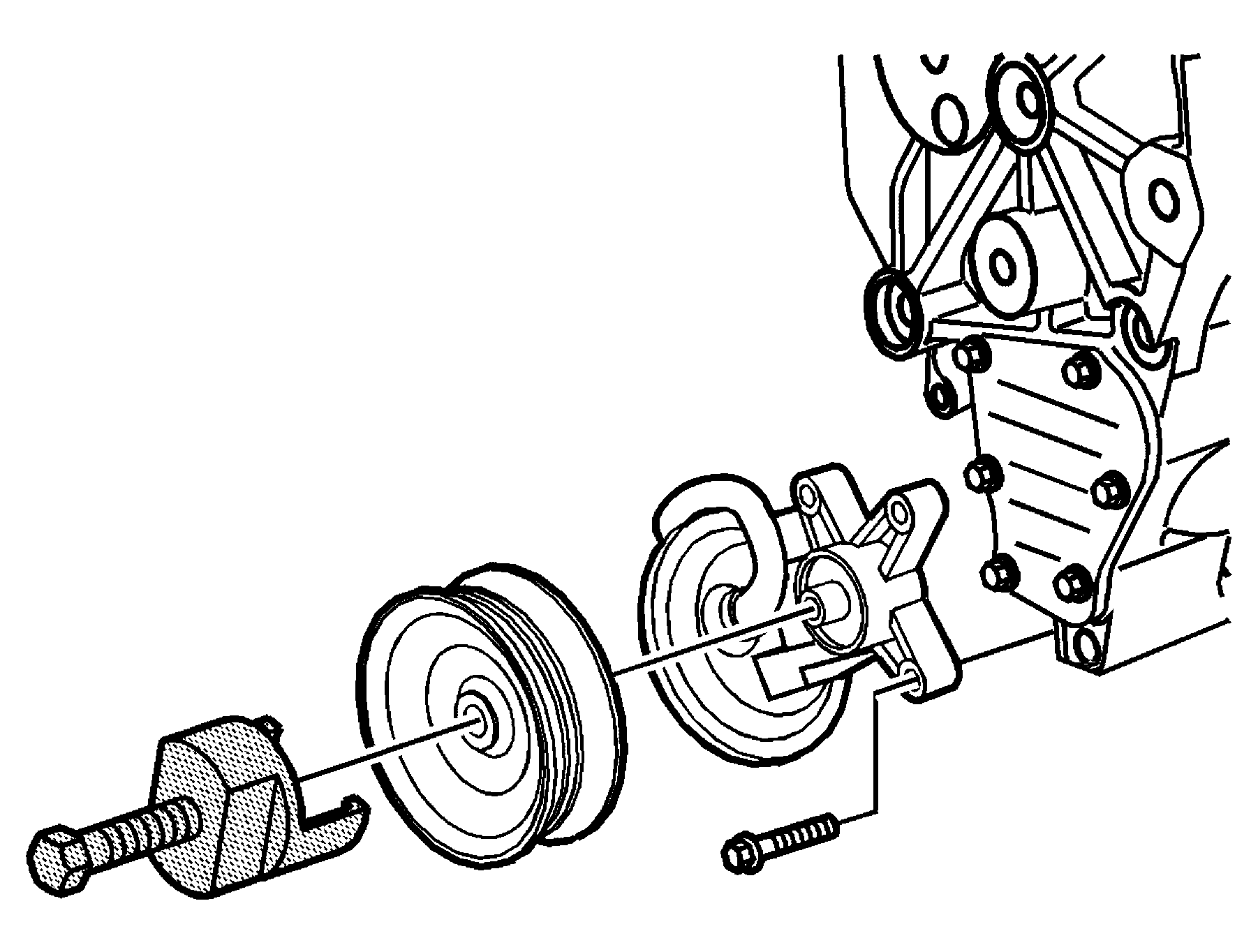

Fig 5: Removing Vacuum Pump Pulley Using J 25034-C
Courtesy of GENERAL MOTORS CORP.
14. Remove the vacuum pump bolts - California Emissions.
15. Remove the vacuum pump- California Emissions.
16. Remove the drive belt tensioner and generator mounting bracket bolts.
17. Remove the drive belt tensioner and generator mounting bracket.
Fig 6: View of Drive Belt Tensioner & Generator Mounting Bracket
Courtesy of GENERAL MOTORS CORP.
