Clutch Pilot Bearing Removal (RPO HP2)

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Tools Required

J 45849 Bearing Remover

Install the J 45849 (1) into the flexplate locator (2).

Fig 1: View Of J 45849 & Flexplate Locator (RPO HP2)

Courtesy of GENERAL MOTORS CORP.

Using two wrenches, rotate the inner shaft of the J 45849 in order to remove the locator.

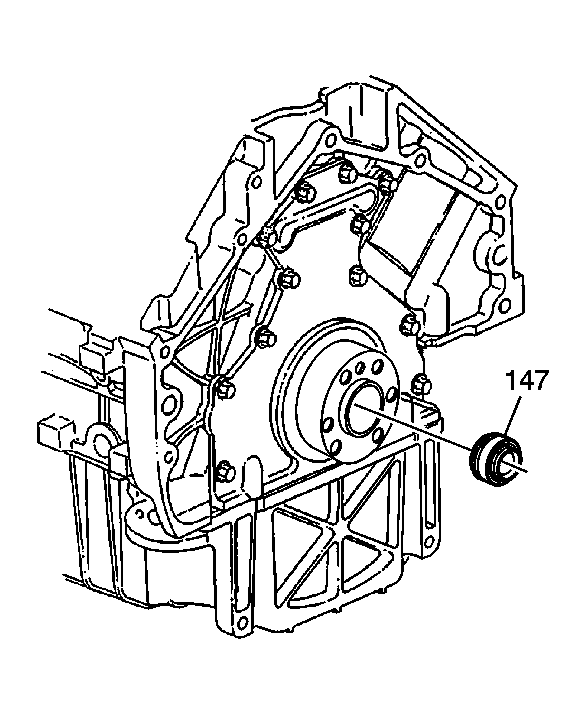

Remove the flexplate locator (147) from the rear of the crankshaft.

Fig 2: View Of Flexplate Locator (RPO HP2)

Courtesy of GENERAL MOTORS CORP.
