Test B: Starter Solenoid Clicks, Engine Does Not Crank

WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, and 2002 Chevrolet Tahoe. However, it is still accessible from the selected car via links, so may be relevant.

For testing procedures, see Fig 1 .

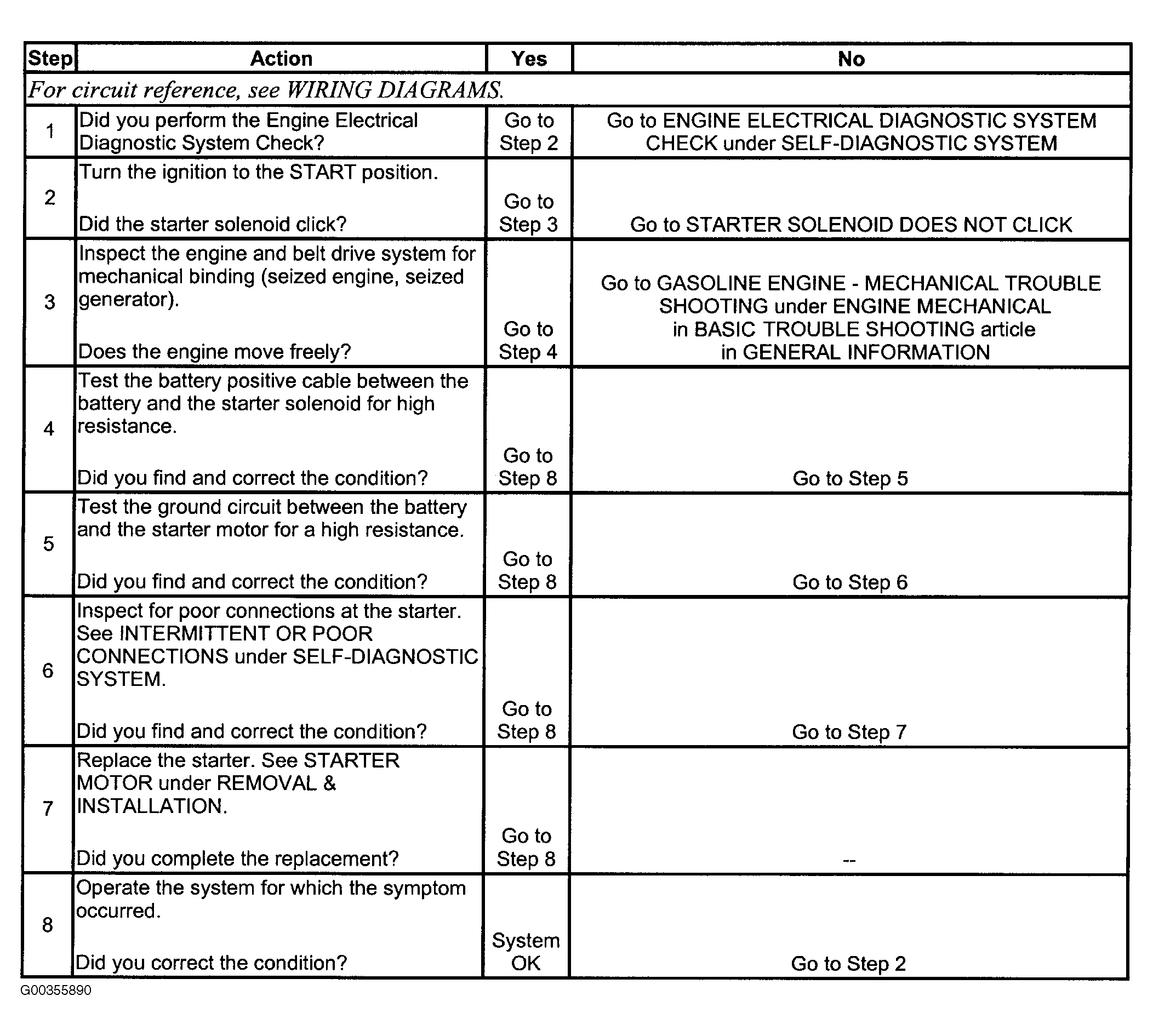

Fig 1: Testing Starter Solenoid Clicks, Engine Does Not Crank Symptom
G00355890Courtesy of GENERAL MOTORS CORP.
