Installation (4.8L, 5.3L & 6.0L Engine)

WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, and 2002 Chevrolet Tahoe. However, it is still accessible from the selected car via links, so may be relevant.

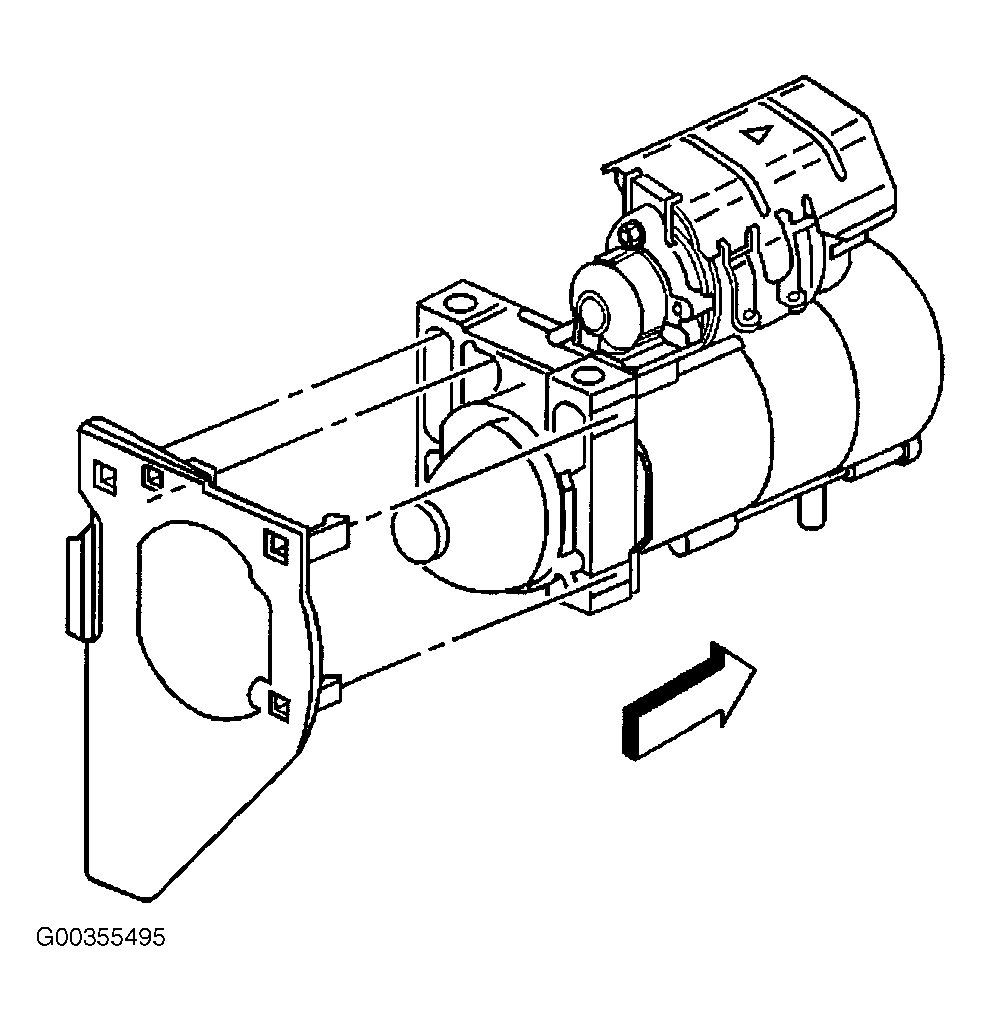

  1. If necessary, install starter heat shield. See Figure .
  2. If necessary, snap transmission cover to starter. See Figure .
  3. Install positive cable to starter. See Figure .
  4. Install positive cable nut. Tighten positive cable nut to specification. See TORQUE SPECIFICATIONS  .
  5. Install starter lead to starter. See Figure .
  6. Install starter lead nut. Tighten starter lead nut to specification. See TORQUE SPECIFICATIONS  .

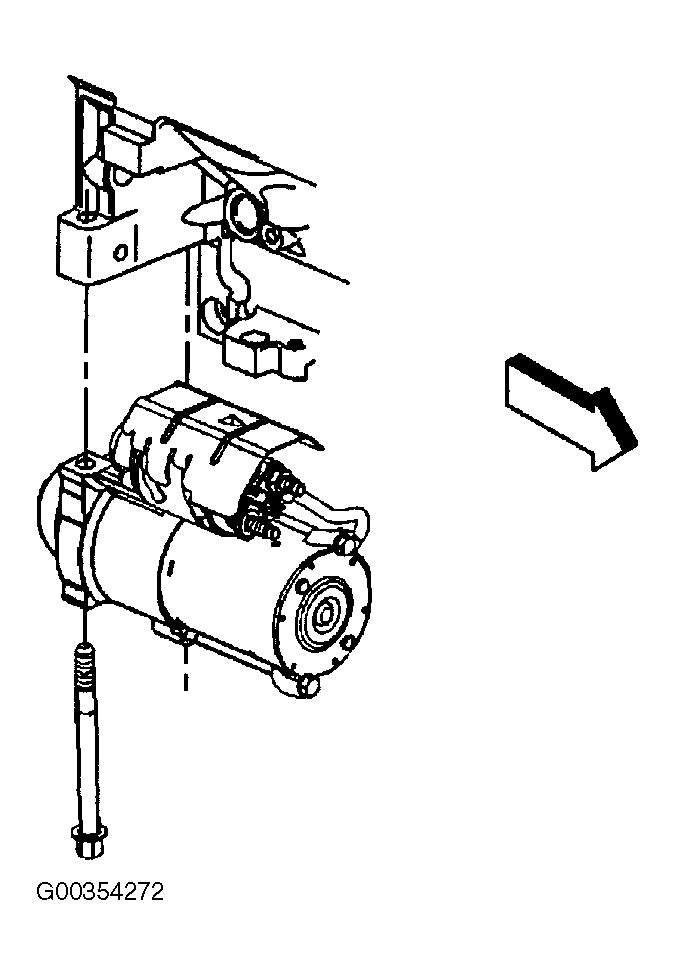

  7. Position starter into place. See Figure .
  8. Install starter bolts. Tighten starter bolts to specification. See TORQUE SPECIFICATIONS  .
  9. Connect oil level sensor electrical connector.

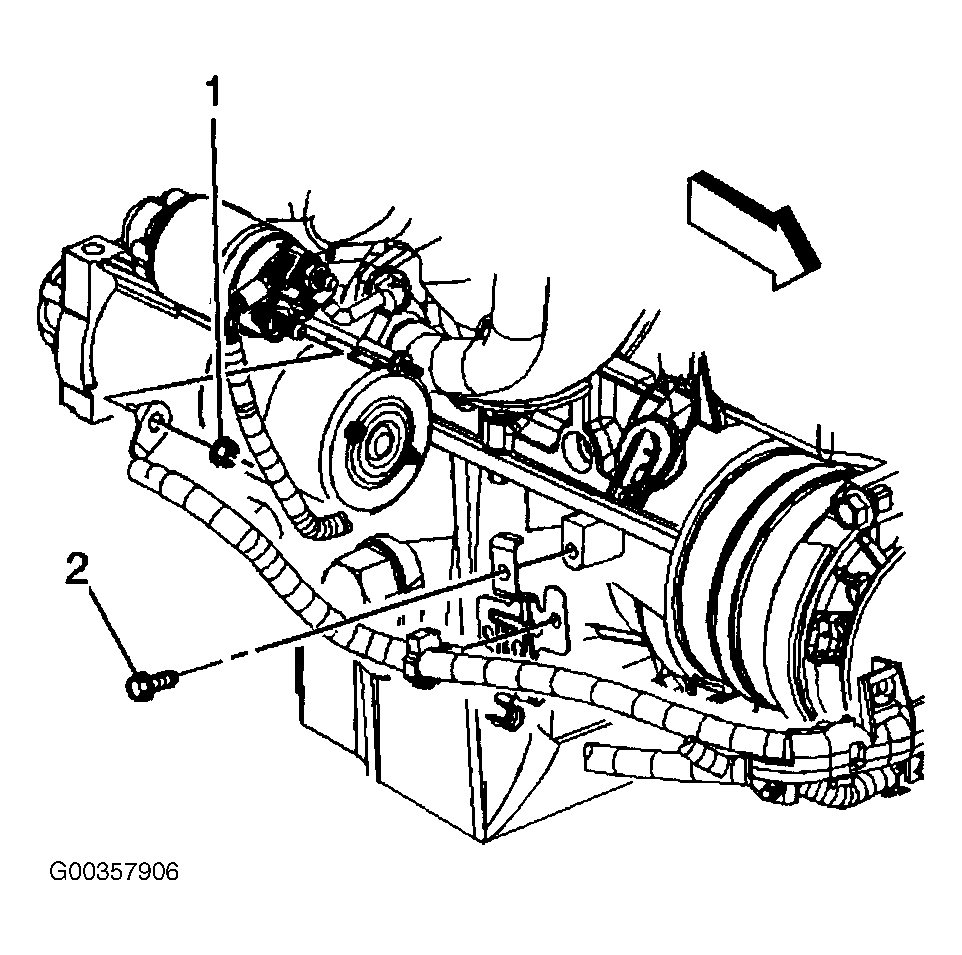

  10. Position front axle mounting bracket bolt until bolt is fully seated. See Figure .
  11. Install front axle mounting bracket nut. Tighten front axle mounting bracket nut to specification. See TORQUE SPECIFICATIONS  .

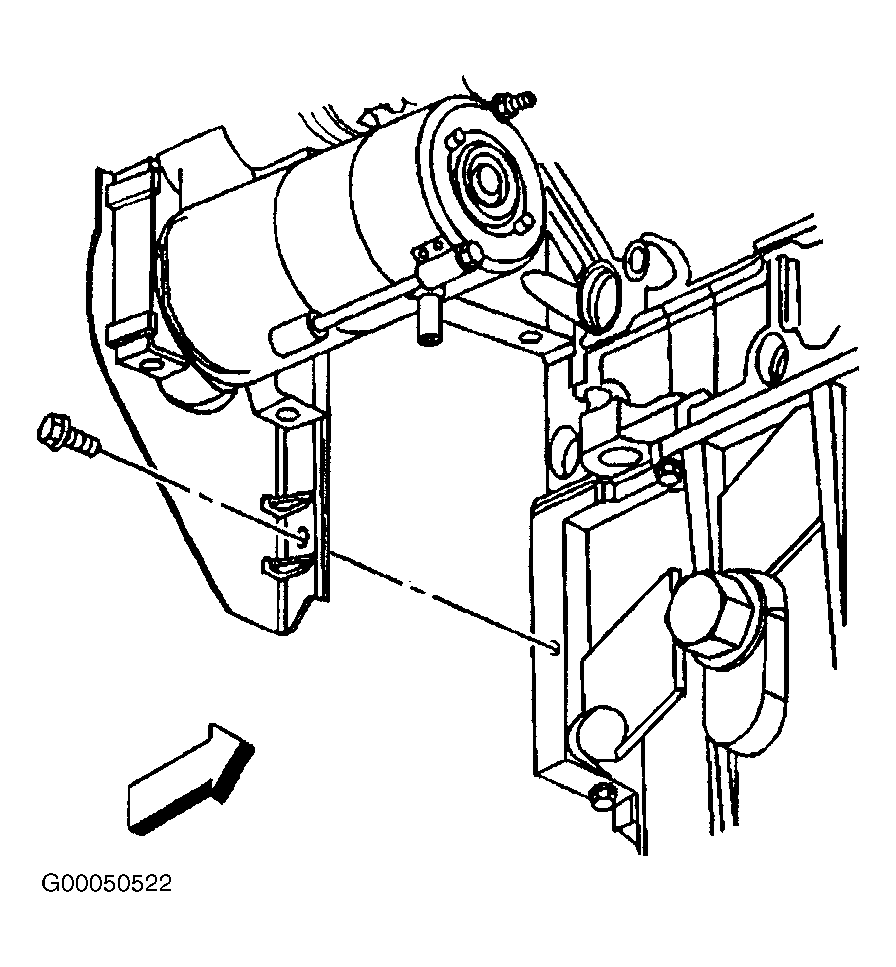

  12. Install transmission cover bolt. See Figure . Tighten transmission cover bolt to specification. See TORQUE SPECIFICATIONS  .
  13. If necessary, install oil pan skid plate and bolts. See Figure . Tighten oil pan skid plate bolts to specification. See TORQUE SPECIFICATIONS  .
  14. If necessary, install engine shield and bolts. See Figure . Tighten engine shield bolts to specification. See TORQUE SPECIFICATIONS  .
  15. Lower vehicle.
    16. NOTE: Clean any existing corrosion from battery terminal bolt flange and battery cable end.
  16. Connect negative battery cable. See Figure . Tighten battery terminal bolt to specification. See TORQUE SPECIFICATIONS  .
