Removal & Installation

NOTE: Numbers in parentheses refer to numbers in illustration. EVAP canister vent solenoid is also referred to as EVAP canister vent valve.
  1. Raise and support vehicle. EVAP canister vent solenoid is located under vehicle, near fuel tank. See Fig 1 . Remove EVAP canister vent solenoid bracket bolt (5). See Fig 2 .
  2. Disconnect EVAP canister vent solenoid electrical connector (4). Disconnect vent pipe (3) at EVAP canister vent solenoid (6). Remove EVAP canister vent solenoid with bracket attached (1).
  3. Bend back the tang on the EVAP canister vent solenoid mounting bracket.
  4. Remove the EVAP canister vent solenoid from the mounting bracket. To install, reverse removal procedure. Tighten the EVAP canister vent solenoid bracket bolt (5) to specification. See TORQUE SPECIFICATIONS  .

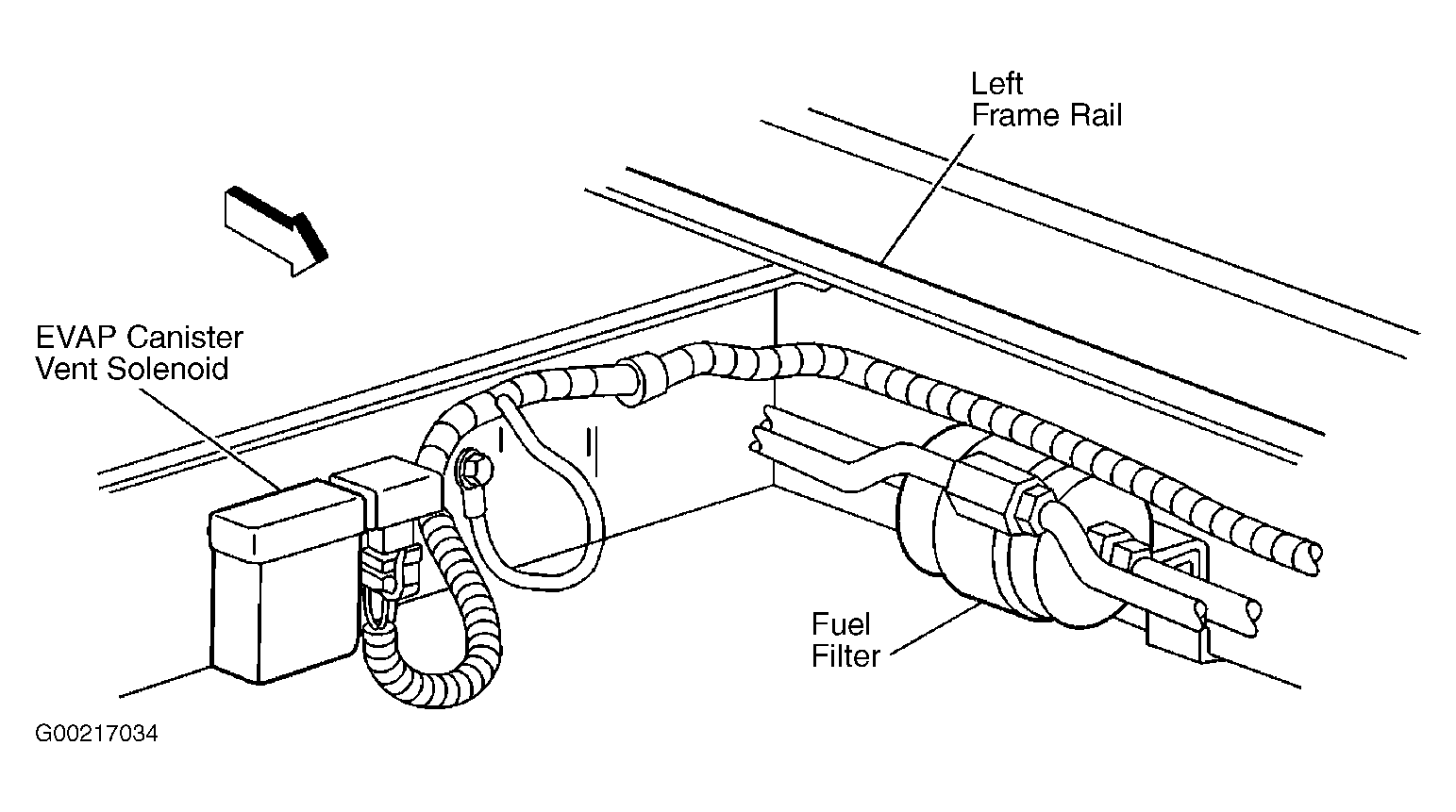

Fig 1: Locating EVAP Canister Vent Solenoid
G00217034Courtesy of GENERAL MOTORS CORP.

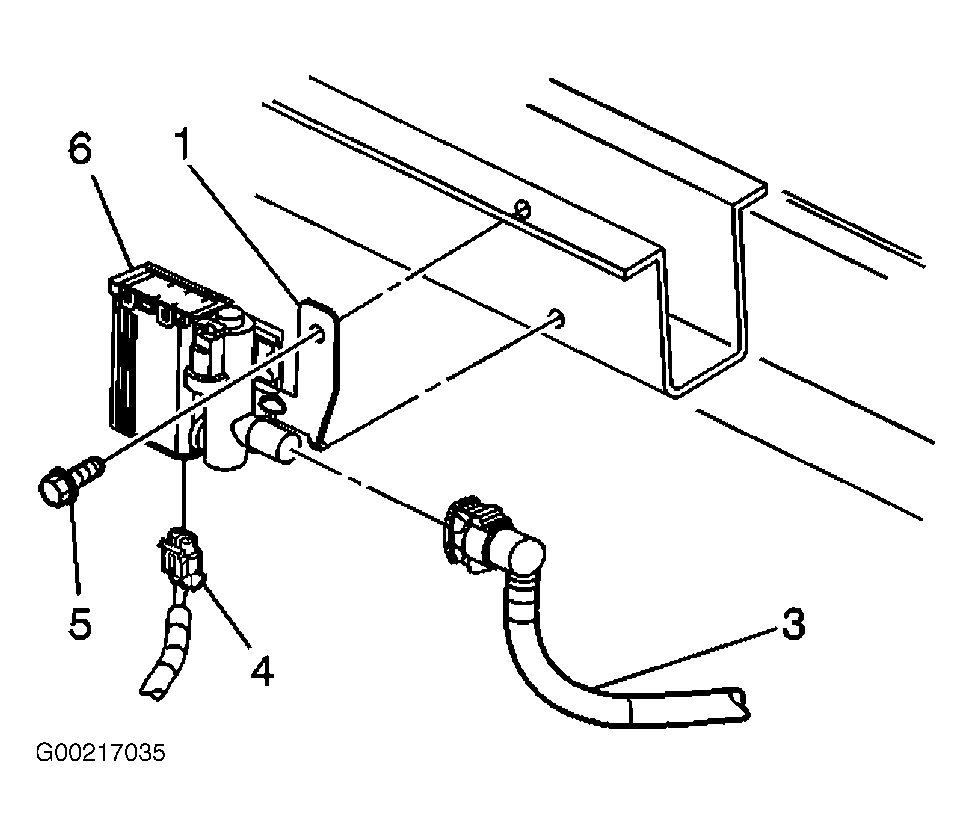

Fig 2: Removing/Installing EVAP Canister Vent Solenoid
G00217035Courtesy of GENERAL MOTORS CORP.
