Vacuum Hose Routing
Vacuum Hose Routing

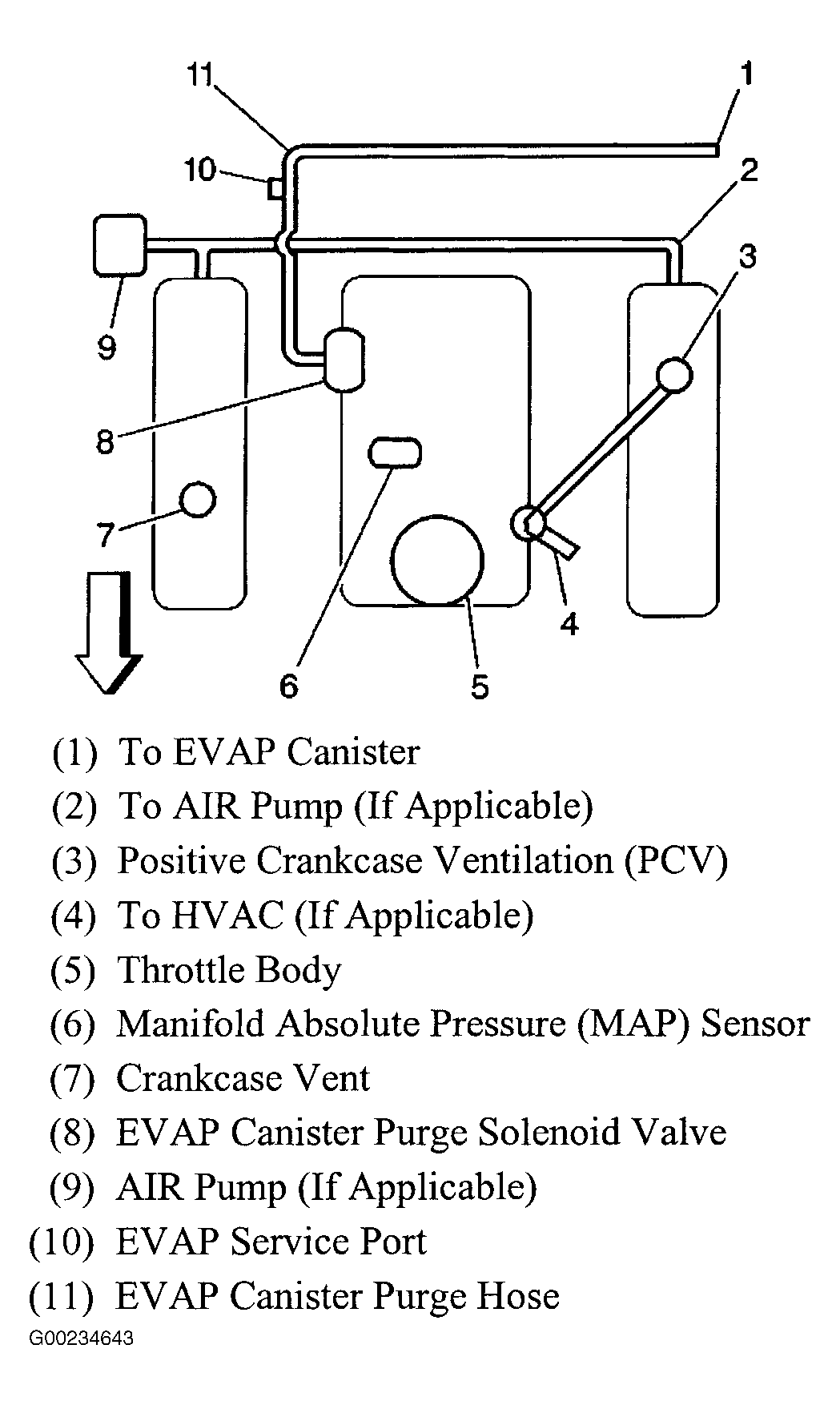

Fig 1: Vacuum Hose Routing
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
