Installation Procedure

For AWD vehicle install the engine mount to the frame (left side shown).
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Install the AWD vehicle engine mount to the frame bolts.

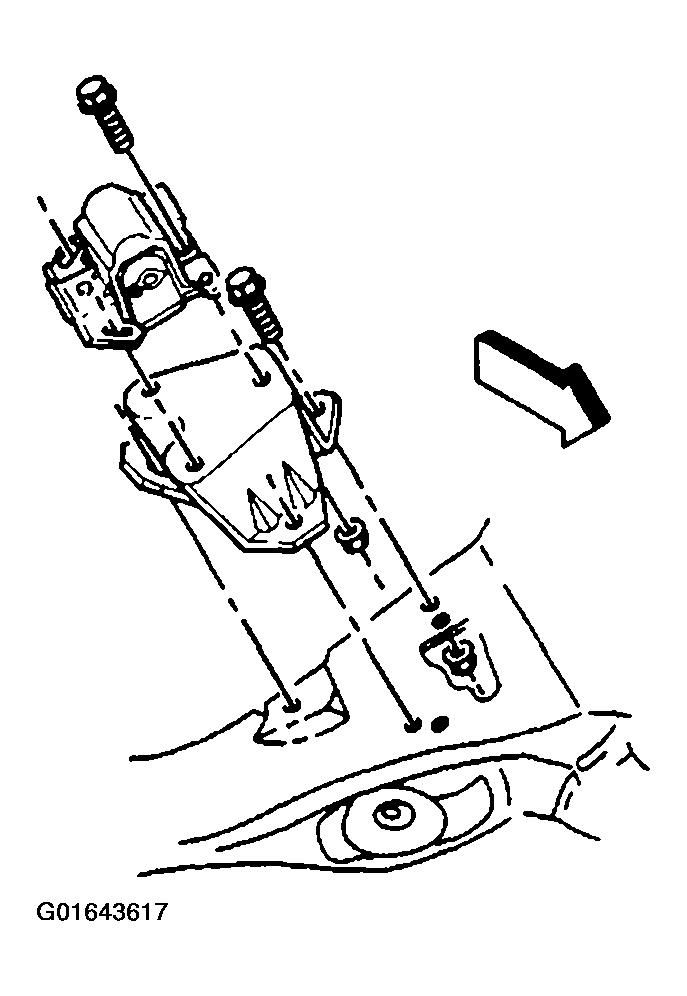

Fig 1: Installing AWD Vehicle Engine Mount To Frame Bolts - Left
Courtesy of GENERAL MOTORS CORP.

Tighten

Tighten the AWD vehicle engine mount to frame bolts to 59 N.m (44 lb ft).
If removed, install the RWD vehicle left side bolts, nuts and engine mount frame bracket to the frame.
Tighten
- Tighten the engine mount frame bracket bolts to 47 N.m (35 lb ft).
- Tighten the engine mount frame bracket nuts to 42 N.m (31 lb ft).
Install the RWD vehicle left side engine mount, the bolts, and the nuts to the frame bracket.

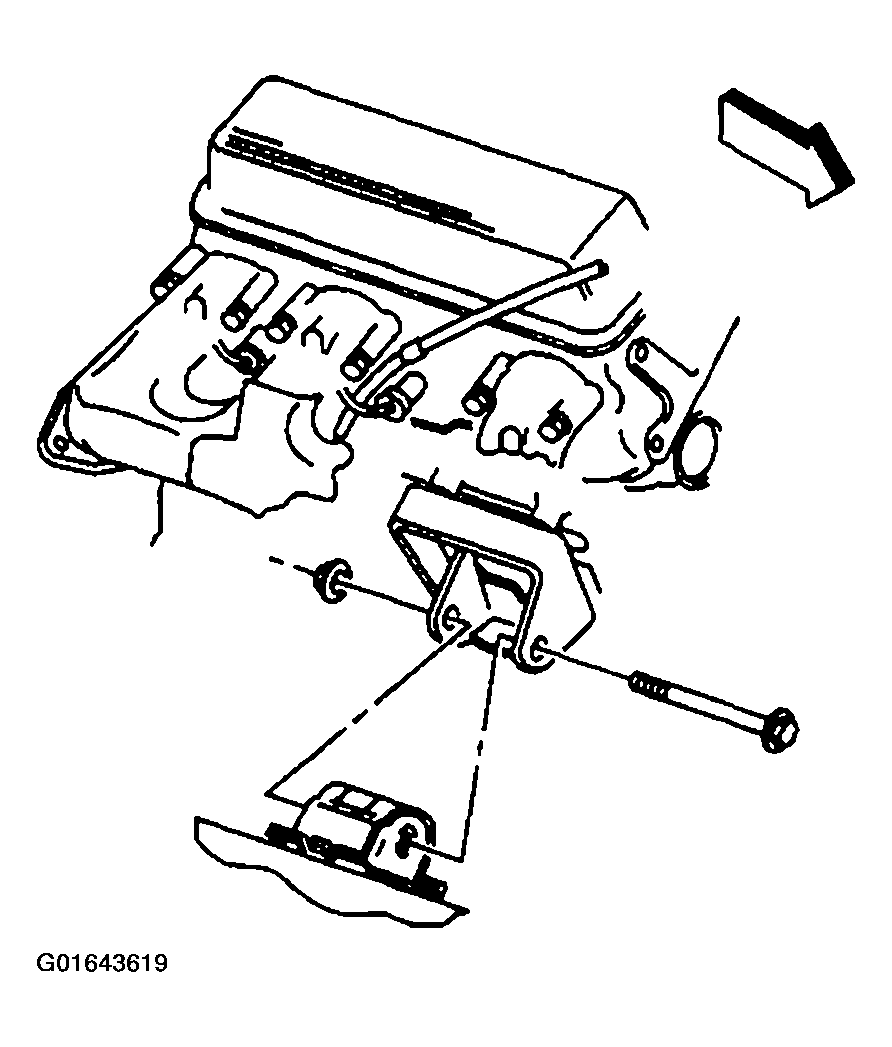

Fig 2: Installing RWD Vehicle Engine Mount - Left
Courtesy of GENERAL MOTORS CORP.

Tighten
- Tighten the engine mount to frame bolts to 47 N.m (35 lb ft).
- Tighten the engine mount to frame nuts to 42 N.m (31 lb ft).
Install the engine mount bracket to the engine.

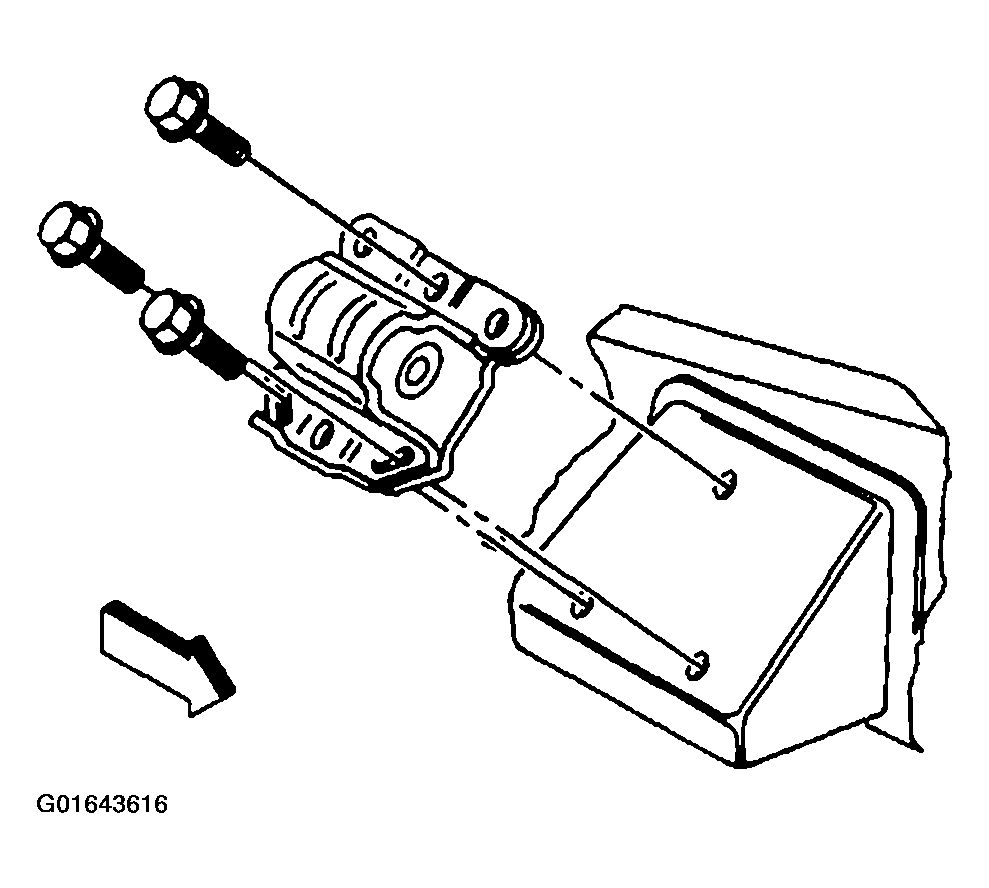

Fig 3: Installing Engine Mount Bracket To Engine
Courtesy of GENERAL MOTORS CORP.
Install the engine mount bracket bolts.
Tighten

Tighten the engine mount bracket bolts to 64 N.m (47 lb ft).
Lower the engine.
Install the engine mount through-bolt and the nut.

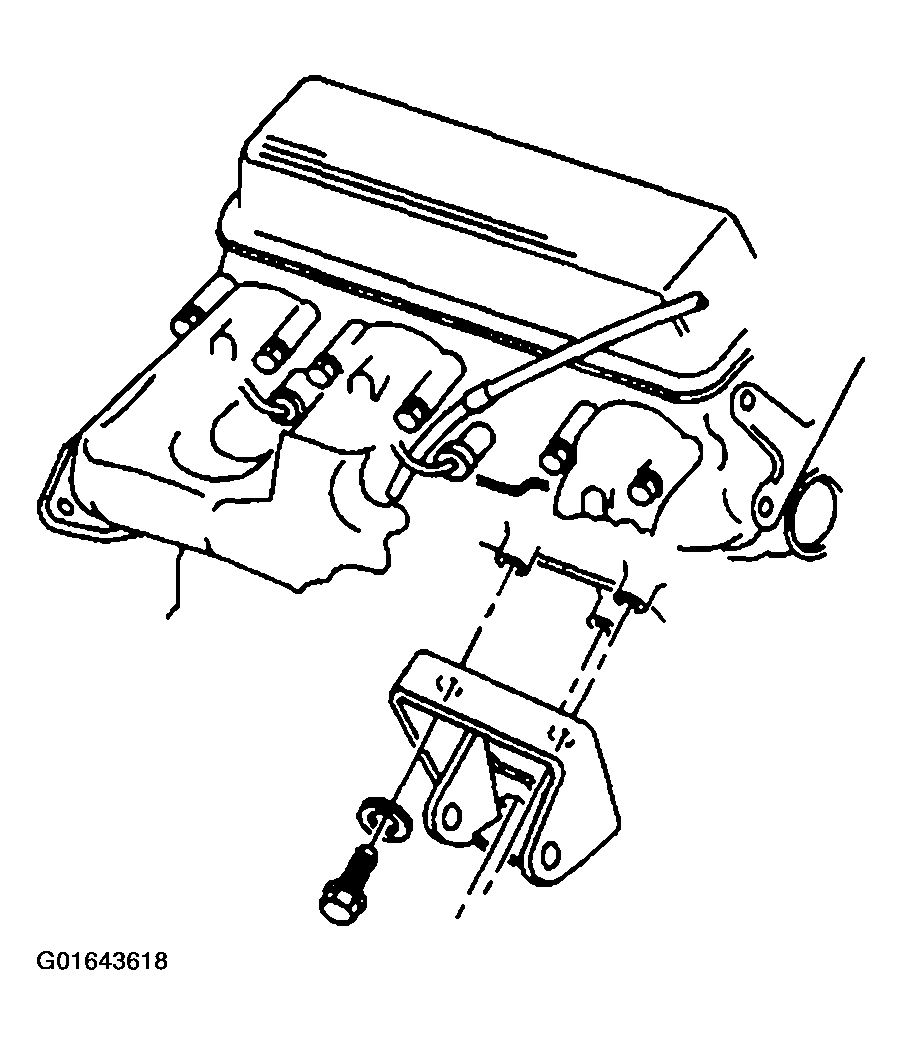

Fig 4: Installing Engine Mount Through-Bolt And Nut - Left
Courtesy of GENERAL MOTORS CORP.

Tighten

Tighten the engine mount through-bolt nuts to 68 N.m (50 lb ft).
Install the oil filter adapter. Refer to OIL FILTER ADAPTER REPLACEMENT .
Lower the Vehicle.
Connect the battery negative cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE in Battery
