Removal Procedure

  1. Remove the transmission assembly. Refer to TRANSMISSION REPLACEMENT in Automatic Transmission-4L60-E.
  2. Remove the bolts and the engine flywheel.

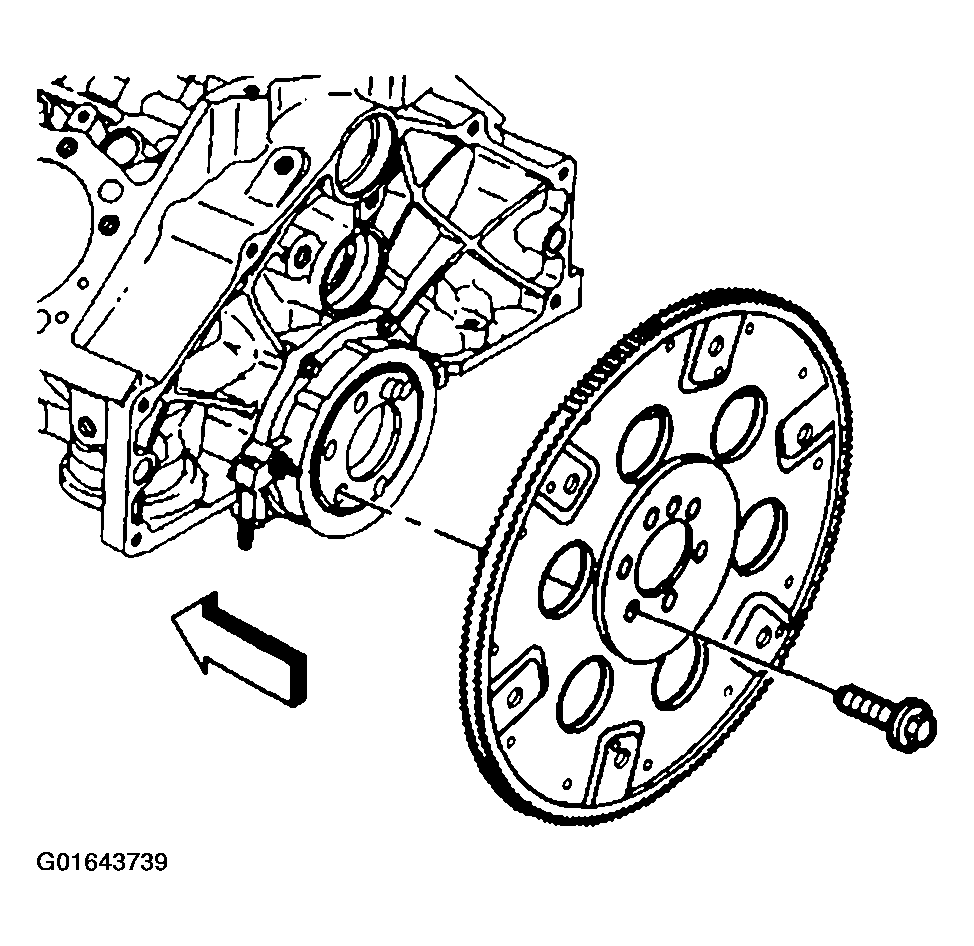

    Fig 1: Removing Bolts And Engine Flywheel
    G01643739Courtesy of GENERAL MOTORS CORP.
  3. Clean and inspect all parts. Refer to ENGINE FLYWHEEL CLEANING AND INSPECTION  .
