Installation Procedure

  1. Install the engine flywheel to the crankshaft.

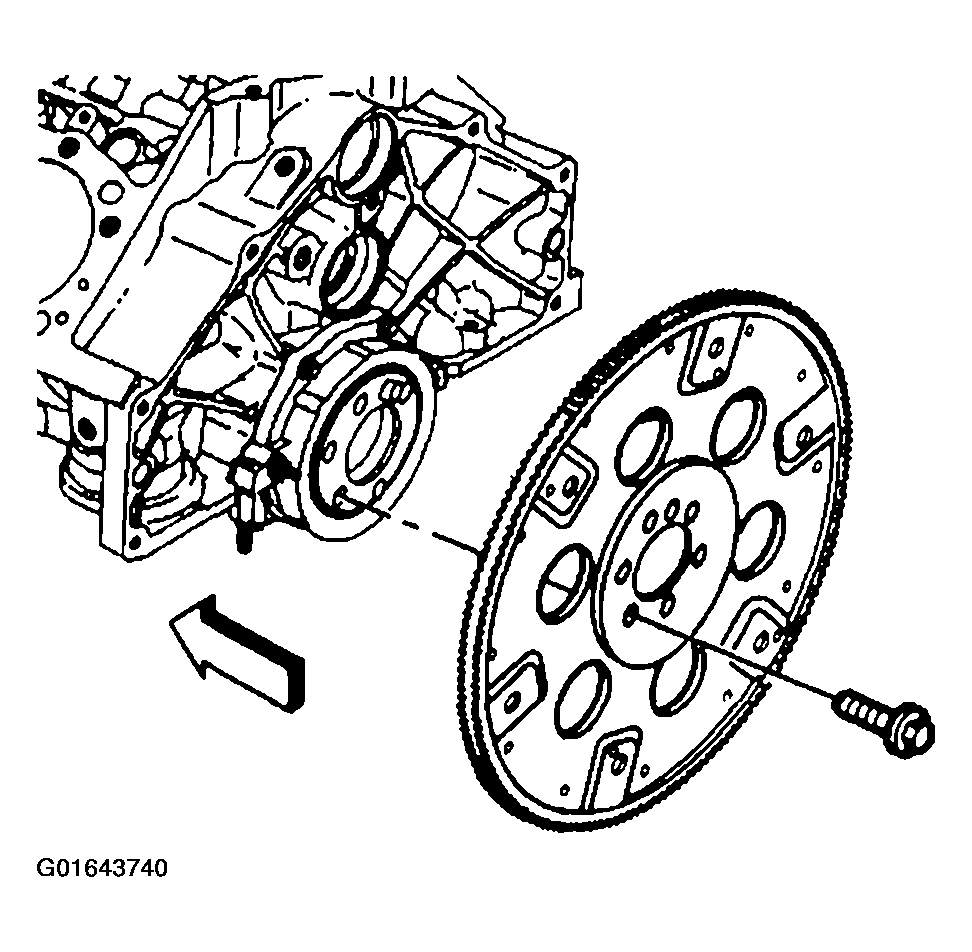

    Fig 1: Installing Engine Flywheel To Crankshaft
    G01643740Courtesy of GENERAL MOTORS CORP.
  2. Align the locator hole to the pin.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the engine flywheel bolts.

    Tighten

    Tighten the engine flywheel bolts in sequence to 100 N.m (74 lb ft).

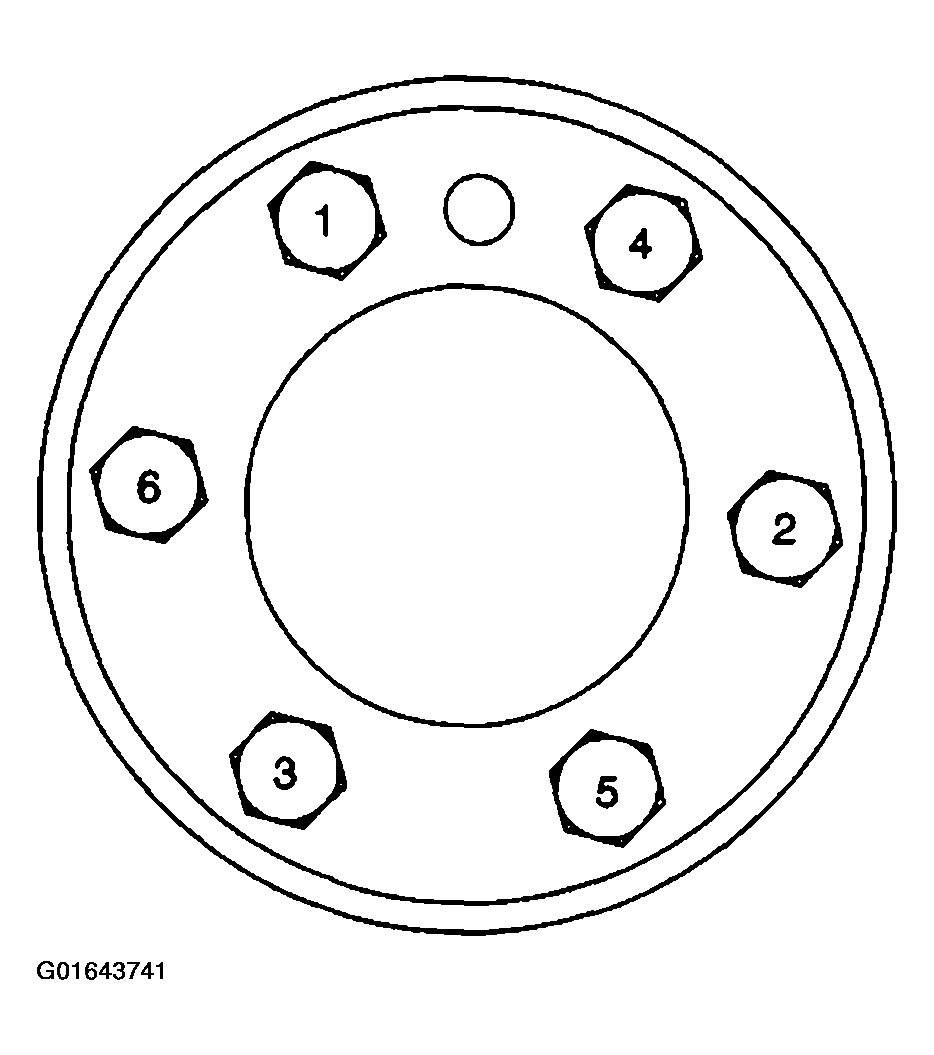

    Fig 2: Flywheel Bolts Tightening Sequence
    G01643741Courtesy of GENERAL MOTORS CORP.
  4. Install the transmission assembly. Refer to TRANSMISSION REPLACEMENT in Automatic Transmission-4L60-E.
